3M™ Performance Plus™ Wire Connector T/R+POUCH, 100 per Pouch

Hisco #: 00051128544549-31196 MFG #: T/R+POUCH
Quantity Price
1 $20.98
1000 $20.36
3000 $19.78
Out of Stock 7 days
1.00 lbs per BX
1 Item must be ordered in multiples of 1
  • Product Information
  • Technical Information

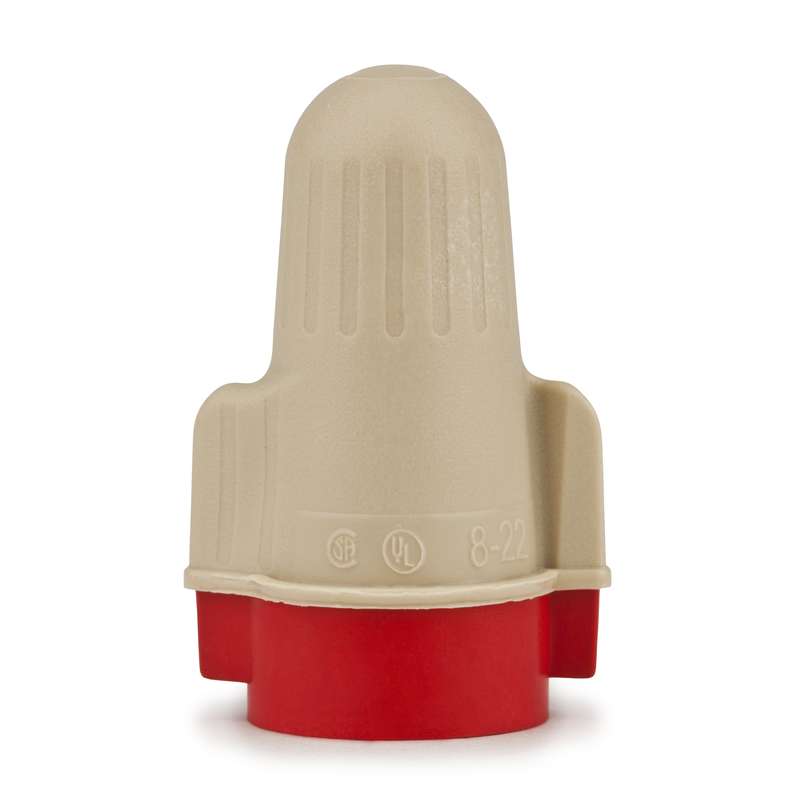

Use a 3M™ Wire Connector T/R+ to electrically connect two or more conductor ends in a pigtail application and insulate the connection.

3M T/R+POUCH Features:
  • Offers a strong bite in a pigtail application so you get a long-lasting connection
  • One connector replaces 3 (yellow, red & tan) in the majority of all field applications
  • The T/R+ is dual color-coded so this 1 connector replaces your traditional tan and red
  • Ideal for many applications including industrial and residential construction, automotive and appliance applications
  • Use with copper conductors ranging from 22 to 8 AWG
  • Made of polypropylene and thermoplastic elastomer material
  • Tan/red connector is flame-retardant and handles well in temperatures up to 221 degrees F (105 degrees C)
3M T/R+POUCH Specifications:
  • Product Type: Connector
  • Color: Red
  • Part Number: T/R+BOX
  • Carton Quantity: 10
  • Brand Name: 3M
  • Connector Type: Wire Connector
  • American Wire Gauge: 22 to 8AWG
  • Color: Tan; Red
  • Primary Color: Brown; Red
  • Standards Met: UL Listed, CSA Certified, CE Certified
  • Maximum Operating Temperature: +221°F
  • Package Quantity: 100CT
  • Package Quantity1: 1000CA
  • Manufacturer: 3M
