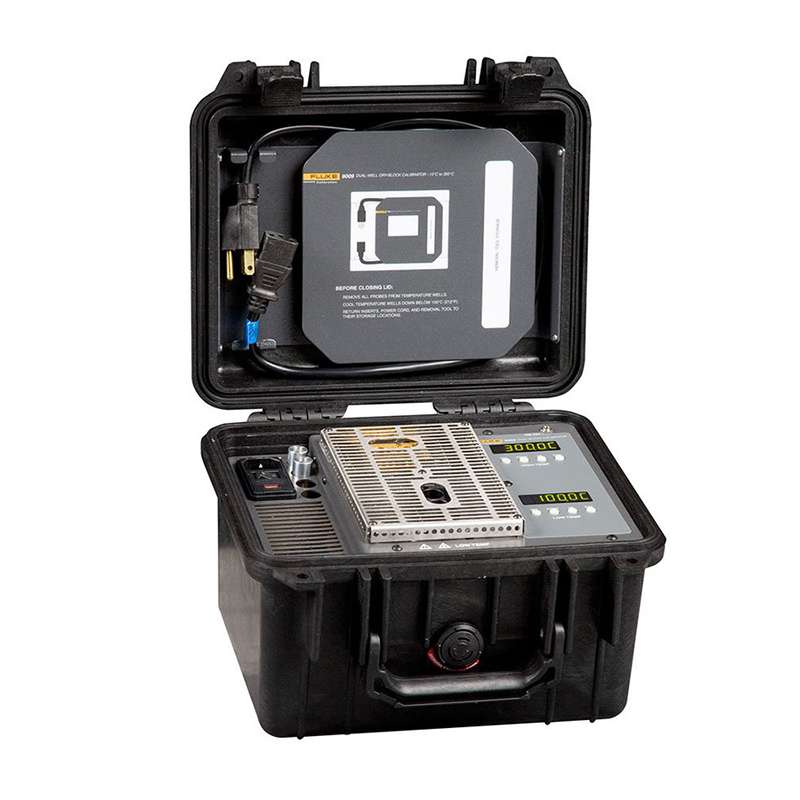

Dual Range Dry-Block Calibrator, Black

Hisco #:1657764-19816

MFG #:1657764

$
Manufacturer Lead Time When Not In Stock14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

The Fluke 1657764 industrial dual-block calibrator lets you calibrate at hot and cold temperatures simultaneously.

Fluke 1657764 Features:
  • Two independently controlled temperature blocks, one for heating and one for cooling with a combined range of -15 to 350°C
  • Unique dual unit allows you to calibrate your sensor in the heated well while the cool well stabilizes; this eliminates the need to wait for multiple temperature points during calibration
  • Each block is controlled by a precision Hart Scientific temperature controller
  • Inserts are available to accommodate sensors of any size from 1/16" (1.6 mm) to 7/16" (11.1 mm)
  • A single AC connection powers both temperature wells for convenience at the job site
Fluke 1657764 Specifications:
  • Brand: Fluke
  • Product Type: Current Calibrators
  • Well-to-Well Uniformity: ±0.1°C
  • Display Resolution: 0.1
  • Stabilization Times: 8 minutes
  • Well Depth: 4” (102 mm)
  • Removable Inserts: Two ¼" (6.4 mm) and 3/16" (4.8 mm) inserts included
  • Power: 115 VAC (±10%), 50/60 Hz, 3 A, 250 W
  • Dimensions: 7 x 10.5 x 9.75" (178 x 267 x 248 mm)
  • Safety: Over Voltage (Installation) CATEGORY II, Pollution Degree 2 per IEC1010-1

Product Description

The Fluke 1657764 industrial dual-block calibrator lets you calibrate at hot and cold temperatures simultaneously.

Fluke 1657764 Features:
  • Two independently controlled temperature blocks, one for heating and one for cooling with a combined range of -15 to 350°C
  • Unique dual unit allows you to calibrate your sensor in the heated well while the cool well stabilizes; this eliminates the need to wait for multiple temperature points during calibration
  • Each block is controlled by a precision Hart Scientific temperature controller
  • Inserts are available to accommodate sensors of any size from 1/16" (1.6 mm) to 7/16" (11.1 mm)
  • A single AC connection powers both temperature wells for convenience at the job site
Fluke 1657764 Specifications:
  • Brand: Fluke
  • Product Type: Current Calibrators
  • Well-to-Well Uniformity: ±0.1°C
  • Display Resolution: 0.1
  • Stabilization Times: 8 minutes
  • Well Depth: 4” (102 mm)
  • Removable Inserts: Two ¼" (6.4 mm) and 3/16" (4.8 mm) inserts included
  • Power: 115 VAC (±10%), 50/60 Hz, 3 A, 250 W
  • Dimensions: 7 x 10.5 x 9.75" (178 x 267 x 248 mm)
  • Safety: Over Voltage (Installation) CATEGORY II, Pollution Degree 2 per IEC1010-1

Technical Information

BrandFluke
