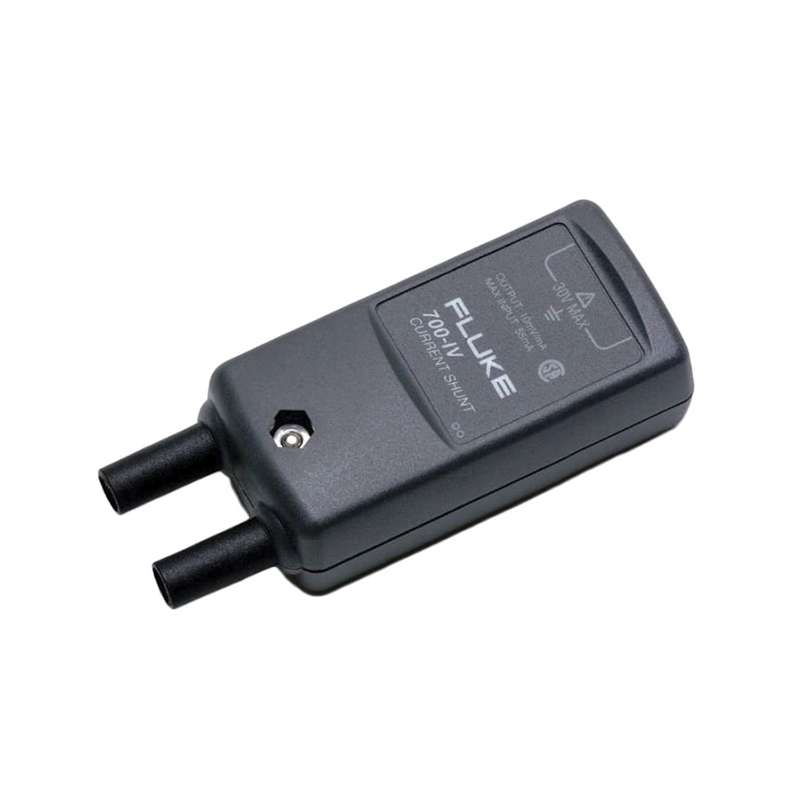

Current Shunt
Hisco #:202561-19816
MFG #:202561
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 202561 used with the 741 or 743 Documenting Process Calibrator to measure and source current simultaneously.
Fluke 202561 Features:- Input current range: 0 to 55 mA DC
- Conversion factor: 1 mA in converts to 10 mV out
- Accuracy (Note): ±0.025% of input
- Brand: Fluke
- Product Type: Current Calibrators
- Calibration interval: 1 year
- Input resistance: 250Ω Nominal
- Output resistance: 10Ω Nominal
- Maximum voltage input: 30V DC
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 202561 used with the 741 or 743 Documenting Process Calibrator to measure and source current simultaneously.
Fluke 202561 Features:- Input current range: 0 to 55 mA DC
- Conversion factor: 1 mA in converts to 10 mV out
- Accuracy (Note): ±0.025% of input
- Brand: Fluke
- Product Type: Current Calibrators
- Calibration interval: 1 year
- Input resistance: 250Ω Nominal
- Output resistance: 10Ω Nominal
- Maximum voltage input: 30V DC
Technical Information
Brand: Fluke
Availability: In Stock
