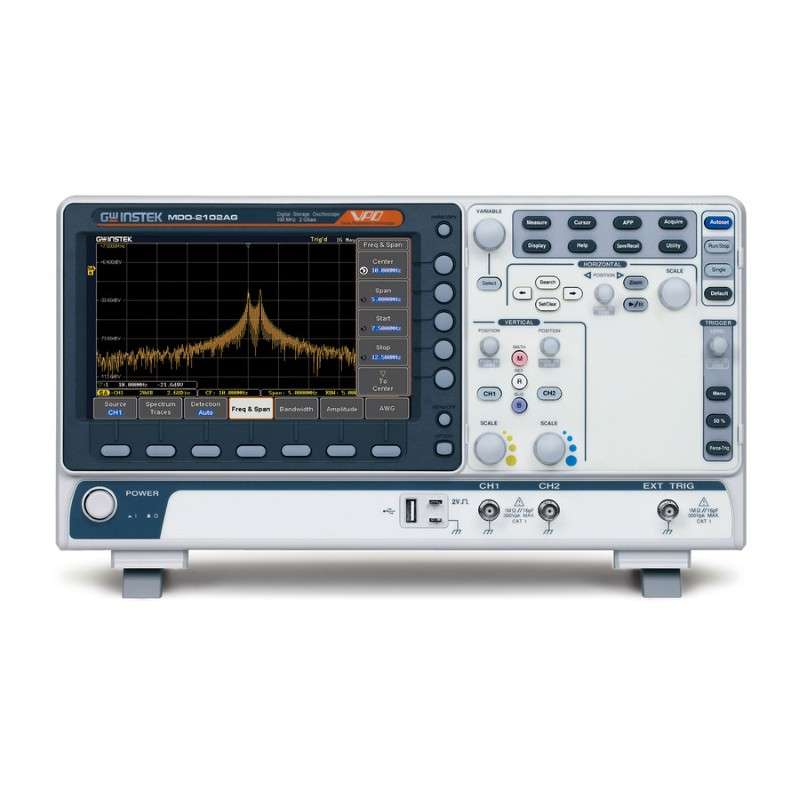

100MHz, 2-channel, DSO, Spectrum analyzer, dual channel 25MHz AWG

<ul> <li>300/200/100MHz bandwidth selections ;2 channels</li> <li>Real time sample rate is 2GSa/s max.</li> <li>Per Channel 20M memory depth and VPO waveform display technology</li> <li>Waveform update rate up to 120,000 wfms/s</li> <li>8 “ WVGA TFT LCD display</li> <li>Maximum 1M FFT provides higher frequency domain resolution measurements</li> <li>High ,low and band pass filter functions</li> <li>29,000 segmented memories and waveform search functions</li> <li>I2C/UART/CAN/LIN serial bus trigger and decoding function</li> <li>Data log function is able to track signal changes up to 1000 hours</li> <li>Network storage function</li> </ul><p>MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz.<br> The full bandwidth ranges include 300MHz, 200MHz and 100MHz. <br> The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved.</p> <p>The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG.<br> The entire series offers the functions of oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator.<br> The new generation MDO-2000A series provides better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.</p>
