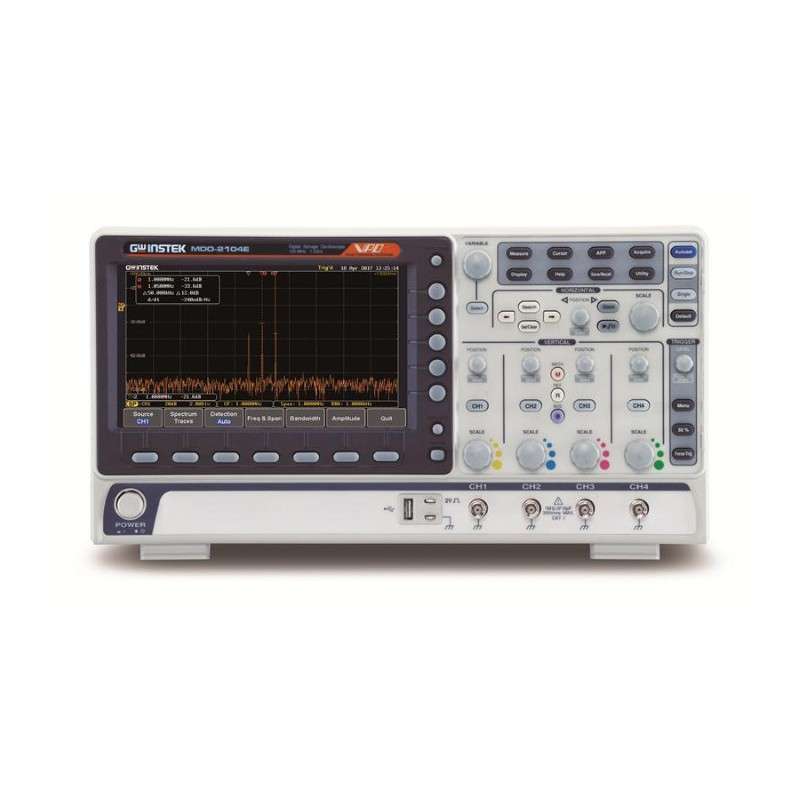

200MHz, 4-channel, DSO, Spectrum analyzer, dual channel 25MHz AWG

<ul> <li>200MHz, 4-ch, DSO, Spectrum analyzer, dual channel 25MHz AWG</li> <li>Real time sample rate for each channel is 1GSa/s (2 channel models)</li> <li>Maximum real time sample rate is 1GSa/s (4 channel models)</li> <li>Per Channel 10M memory depth and VPO waveform display technology</li> <li>Waveform update rate up to 120,000 wfms/s</li> <li>8 “ WVGA TFT LCD display</li> <li>Free Frequency Response Analyzer Software</li> <li>Maximum 1M FFT provides higher frequency domain resolution measurements</li> <li>High ,low and band pass filter functions</li> <li>29,000 segmented memories and waveform search functions</li> <li>I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function</li> <li>Data log function is able to track signal changes up to 1000 hours</li> <li>Network storage function</li> <li>Mask test function</li> <li>MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply.</li> </ul><p>MDO-2000E series is multi-functional mixed domain oscilloscope. The series includes two feature combinations : MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in a spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply.<br> The first of its kind, MDO-2000EX is the only oscilloscope to equip with a DMM and a power supply in the T&M industry.</p>
