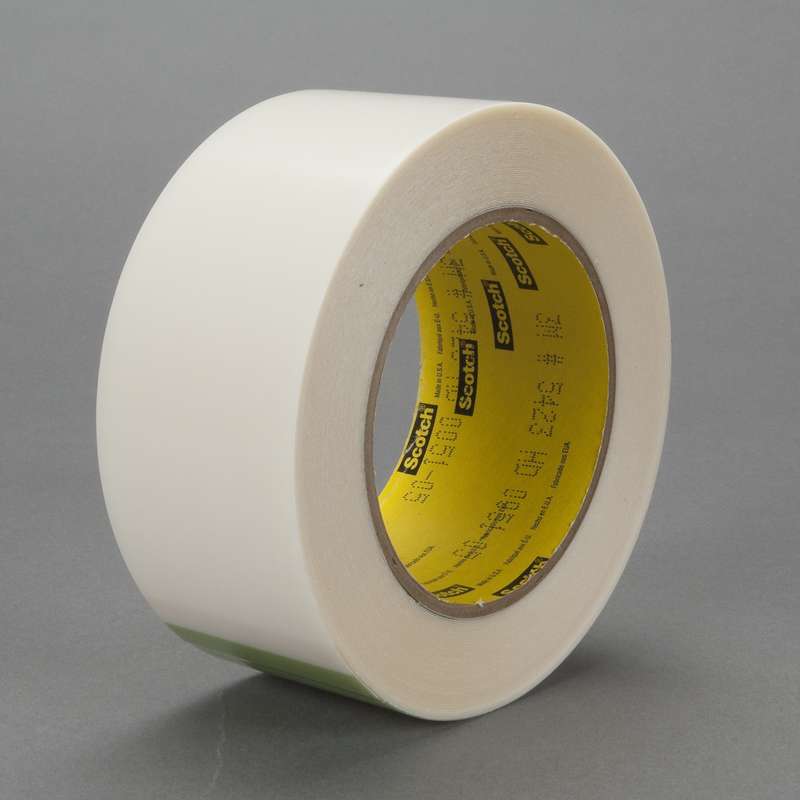

3M™ UHMW Film Tape 5423, Transparent, 2 1/2 in x 36 yd, 12 mil, 3 rolls per case

00051115117633-31196 MFG #: 00051115117633
$676.14 / RL
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Series: 5423
  • Product Type: Film Tape
  • Backing Material: Ultra-high molecular weight polyethylene
  • Adhesive Material: Rubber
  • Material Category: Plastic
  • Color: Translucent, Transparent
  • Primary Color: Clear
  • Width: 2.5 in
  • Length: 36yd
  • Thickness: 12 mil
  • Adhesion Strength: 26oz/in
  • Tensile Strength: 55lb/in
  • Elongation at Break: 300%
  • Resistance Properties: Abrasion Resistant
  • Applications: Conveyor Flat Guide Rails, Spray Booth Liners, Discharge Chutes, Tank and Bin Liners, Doctor Blades, Drawer and Cabinet Slides, Former Noses, Feed and Grain Chutes, Protecting Aluminum Sheets on Stretch Forming Presses
  • Maximum Operating Temperature: +225°F
  • Minimum Operating Temperature: -30°F
  • Package Quantity: 3 RLS, 3CA

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5423 is a thick caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

An Effective Solution for Many Noise and Vibration Problems
3M™ UHMW-PE Film Tape 5423 is often used in general industrial applications to help control squeaks and rattles due to vibration or wear of metal and plastic materials. This UHMW-PE (ultra-high molecular weight polyethylene) film tape provides good chemical resistance and excellent abrasion resistance that helps ensure a long wear life. 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, making it easy to die-cut to meet the demands of specific applications. It is ideal for applications requiring a low coefficient of friction and the movement of parts and/or materials. This slick surface tape is primarily used in aerospace, automotive, printing and MRO industries.
Recommended Applications

Flat conveyor guide rails and chutes
Spray booth liners
Tank and bin liners
Drawer and cabinet slides
Protecting aluminum sheets on stretch forming presses

The Science Behind Our Tape
The effectiveness of 3M™ UHMW-PE Film Tape 5423 lies in its Ultra-High Molecular Weight polyethylene (UHMW-PE) backing. UHMW-PE is a thermoplastic that has a unique combination of properties, such as exceptional hardness and low surface energy. The ultra-high molecular weight of this tape significantly reduces friction to create an effective solution for anti-stick and easy-release requirements. The abrasion resistance of UHMW-PE is greater than PTFE and increases as the molecular weight increases.

The extraordinary durability and versatility of UHMW-PE is used by designers and engineers in many industries worldwide. UHMW-PE based products offer a host of exceptional attributes that include high abrasion resistance, low coefficient of friction and one of the highest impact strength ratings of any thermoplastic. These attributes make them ideal for tough impact wear or sliding applications. The low coefficient of friction characteristic is surpassed only by PTFE; however, UHMW-PE tape has superior abrasion resistance. Our exceptional science and engineering of products provide long-lasting performance and successful solutions.

3M 00051115117633 Features:
  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Used in applications where lubrication is not possible because of contamination
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
3M 00051115117633 Specifications:
  • Backing Material: Ultra-high molecular weight polyethylene
  • Color: Transparent
  • Package Quantity: 3 RLS
  • Thickness: 12 mil
  • Width: 2.5 in
