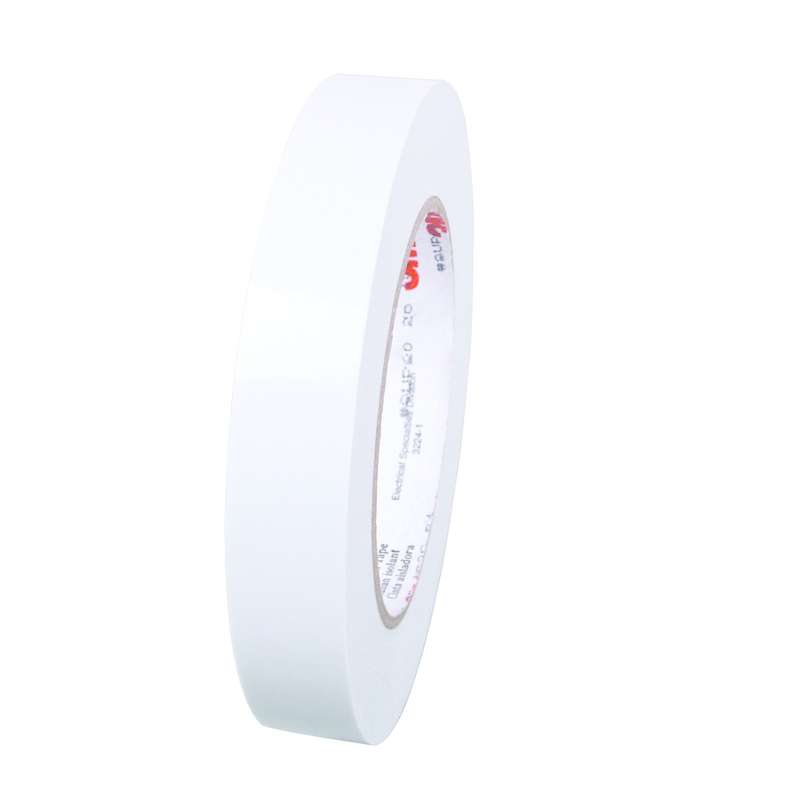

3M™ Super 10 Epoxy Film Electrical Tape, 15.5 in X 60 yd log trimmed, both sides

00051138692070-31196 MFG #: ETS10L
$414.01 / RL
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Series: 10
  • Product Type: Electrical Tape
  • Backing Material: Epoxy Film
  • Adhesive Material: Thermosetting Rubber
  • Material Category: Plastic
  • Color: Cream
  • Primary Color: Cream
  • Width: 15.5in
  • Length: 60yd
  • Thickness: 5mil
  • Adhesion Strength: 45oz/in
  • Tensile Strength: 45lb/in
  • Elongation at Break: 120%
  • Resistance Properties: Heat Resistant; Oxidation Resistant; Solvent Resistant; Oil Resistant; Insulation Resistant; Puncture Resistant; Solder Damage Resistant
  • Applications: Wrapping Relays, Coils, Transformers, Bobbin-Wound Sub-Fractional Horsepower Shaded-Pole Motors and Stick-Wound Coils, Holding in Fractional Horsepower Motors, Arbor-Wound Coils and Wire Harnesses, Use as Coil Cover, Anchor, Harnessing, Banding and a
  • Maximum Operating Temperature: +155°C
  • Minimum Operating Temperature: 0°C
  • Maximum Storage Temperature: 80
  • Minimum Storage Temperature: 50

3M™ Epoxy Film Electrical Tape Super 10 is a 5 mil thick, high dielectric electrical tape. The flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).

3M ETS10L Features:
  • The combination of pressure-sensitive, thermosetting, rubber adhesive and epoxy film backing provides good adherence and electrical purity
  • Offers resistance to solder damage and punctures
  • Suitable for use as a coil cover, anchor, harnessing, banding and as core, layer and crossover insulation
  • Withstands a temperature range of 32 to 311 degrees F (0 to 155 degrees C)
  • UL Listed and RoHS 2011/65/EU Compliant
3M ETS10L Specifications:
  • Length: 60
  • Width: 15.5
  • Backing Material: Epoxy
  • Color: Cream
  • Part Number: Super 10
  • Thickness: 5
Pack: Roll
