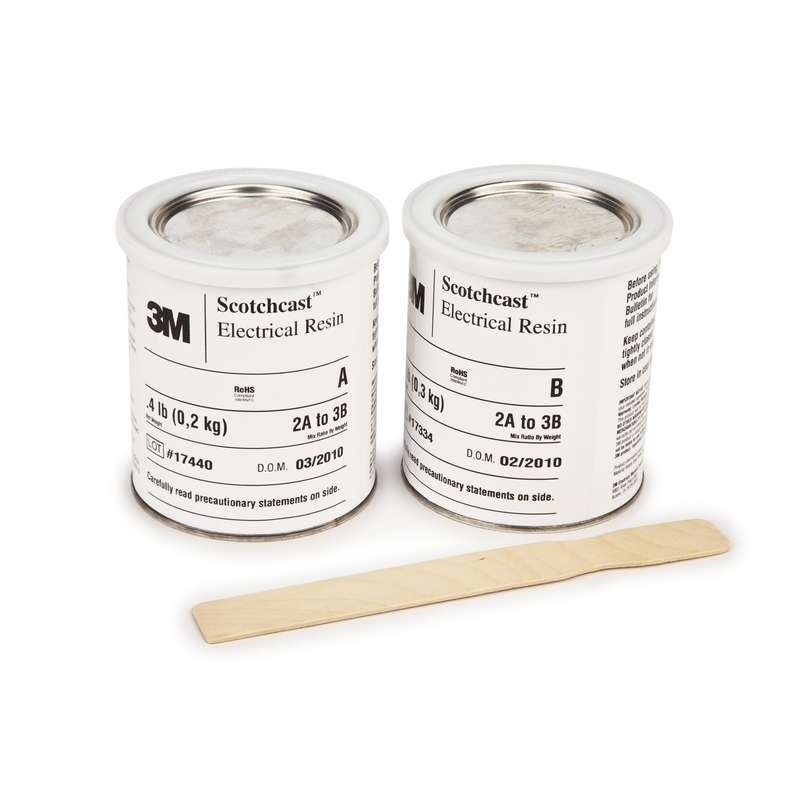

3M™ Scotchcast™ Electrical Resin 235 (10 lb)

00054007345091-31196 MFG #: 235
$256.76 / EA
Availability: 2 In Stock
  • Brand Name: 3M Scotchcast
  • Series: 235
  • Product Type: Epoxy Adhesive
  • Hardness: 55Shore D
  • Color: Part A:Bright Red; Part B:Black
  • Primary Color: Part A:Bright Red; Part B:Black
  • Mix Ratio: 1:2
  • Physical Form: Part A:Liquid; Part B:Liquid/Resin
  • Cure Time: 3h
  • Viscosity Measurement: Part A:11000 to 14000cP
  • Shelf Life: 730 Days From Date of Manufacture
  • Chemical Composition: Part A:Epoxy Resin, C.I. Pigment Red 22, C.I. Pigment Yellow 14; Part B:Dodecenylsuccinic Anhydride, Glycol Copolymer, Polymer, Dmp-30
  • Specific Gravity: Part A:1.16; Part B:1.02
  • Odor: Part A:Epoxy; Part B:Maleic
  • Cure Type: Oven >75°C
  • Dielectric Strength: 325V/mil
  • Elongation at Break: 75%
  • Gel Time: 18min
  • Maximum Operating Temperature: ?+130°C
  • Container Capacity: 10lb
  • Container Type: Kit
  • Applications: General Purpose
  • Availability: In Stock
  • Container Size: 1 gal
  • Maximum Storage Temperature: 86
  • Minimum Storage Temperature: 68

3M™ Scotchcast™ Resin 235 is a 2 part, oven curing, semi flexible, unfilled, epoxy based, liquid resin. Resin with low viscosity and good wetting characteristics is formulated for complete impregnation of small coils. This resin is suitable for a variety of general purpose applications.

3M 235 Features:
  • 55 Shore D hardness
  • Has 18-minute gel time at 248 degrees F (120 degrees C)
  • For general-purpose applications
  • Comes in brown color
  • 10-lb capacity
  • Withstands a temperature range of 32 to 266 degrees F (0 to 130 degrees C)
  • Elongates 75% longer than its original size for easy insulation or wrapping
3M 235 Specifications:
  • Product Type: Electrical Resin
  • Color: Reddish Brown
  • Part Number: 235-1GAL-10LBS/UNIT
Pack: Kit
