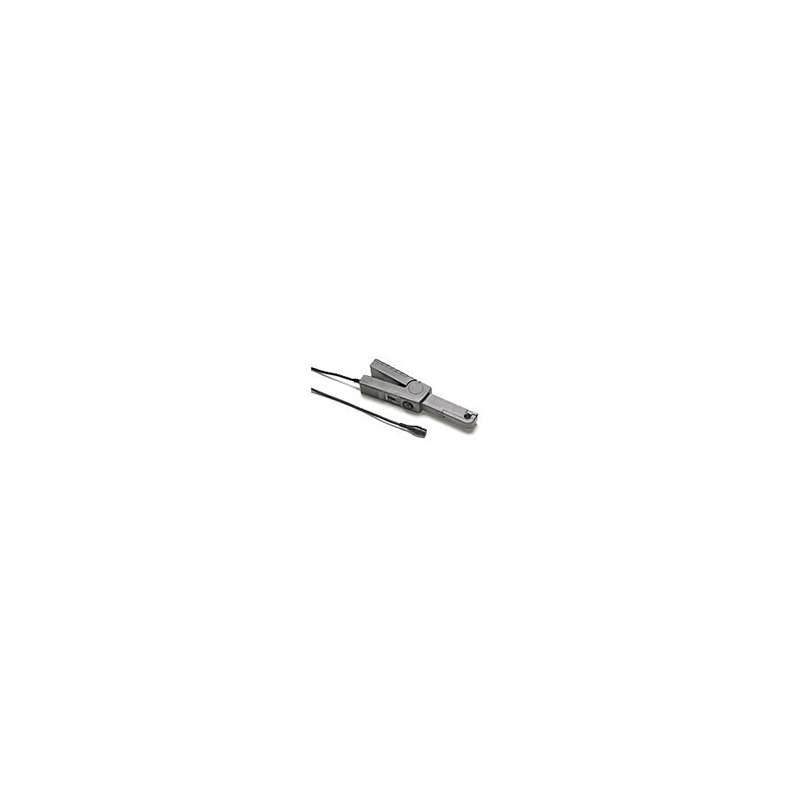

AC/DC Current Probe, Scopemeter(R)
Hisco #:114519-19816
MFG #:114519
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 114519 80i-110s AC/DC Current Clamp is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.
Fluke 114519 Features:- Current Range: 0.1 to 100A DC or 0.1 to 70A AC
- Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
- Brand: Fluke
- Product Type: Probes
- Bandwidth: 1Hz to 20kHz
- Working Voltage: 600V AC rms
- Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 114519 80i-110s AC/DC Current Clamp is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.
Fluke 114519 Features:- Current Range: 0.1 to 100A DC or 0.1 to 70A AC
- Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
- Brand: Fluke
- Product Type: Probes
- Bandwidth: 1Hz to 20kHz
- Working Voltage: 600V AC rms
- Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V
Technical Information
Brand: Fluke
