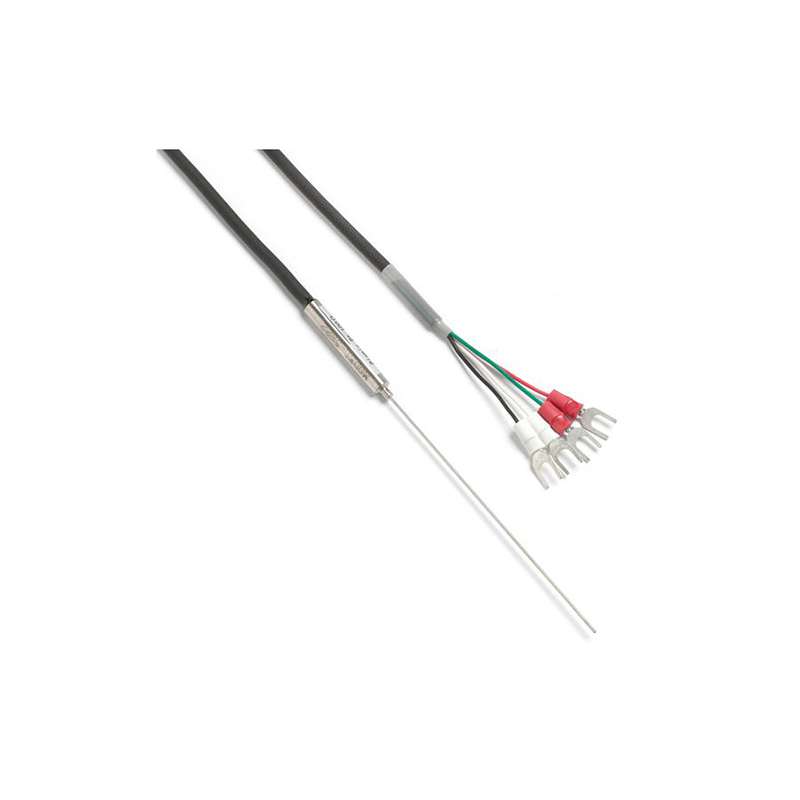

Fast Response Platinum Resistance Thermometer, PRT, with Bare Wire, 0.06in, 6ft Lead
Hisco #:1653563-19816
MFG #:1653563
Our Price: $789.26 PC
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 1653563 5622-16-B Thermometer is ideal for short immersion over a wide temperature range and features bare wire connections with a 0.06in sheath.
Fluke 1653563 Features:- Time constants as fast as 0.4 seconds
- Available as DIN/IEC Class A PRTs or with NVLAP-accredited calibration, lab code 200348-0
- Small probe diameters ranging from 0.02 to 0.13in (0.5 to 3.2mm)
- Brand: Fluke
- Product Type: Probes
- Temperature Range: -328 to 662°F (-200 to 350°C)
- Nominal RTPW: 100Ω
- Temperature Coefficient: 0.00385Ω/Ω/°C nominal
- Uncalibrated DIN/IEC Conformity: DIN/IEC Class A; ±0.15°C at 0°C
- Time Constant (63.2%): From 0°C to 100°C: 3.0 seconds
- Immersion Depth: 1.25in (32mm)
- Thermal EMF: 20mV at 350°C
- Sheath: 316 SST, 8 x 0.06in (200 x 1.6mm)
- Cable: PVC, 4-wire cable, 6.56ft (2m) long, 194°F (90°C) max temp
Product Description
Technical Information
Back to top
Product Description
The Fluke 1653563 5622-16-B Thermometer is ideal for short immersion over a wide temperature range and features bare wire connections with a 0.06in sheath.
Fluke 1653563 Features:- Time constants as fast as 0.4 seconds
- Available as DIN/IEC Class A PRTs or with NVLAP-accredited calibration, lab code 200348-0
- Small probe diameters ranging from 0.02 to 0.13in (0.5 to 3.2mm)
- Brand: Fluke
- Product Type: Probes
- Temperature Range: -328 to 662°F (-200 to 350°C)
- Nominal RTPW: 100Ω
- Temperature Coefficient: 0.00385Ω/Ω/°C nominal
- Uncalibrated DIN/IEC Conformity: DIN/IEC Class A; ±0.15°C at 0°C
- Time Constant (63.2%): From 0°C to 100°C: 3.0 seconds
- Immersion Depth: 1.25in (32mm)
- Thermal EMF: 20mV at 350°C
- Sheath: 316 SST, 8 x 0.06in (200 x 1.6mm)
- Cable: PVC, 4-wire cable, 6.56ft (2m) long, 194°F (90°C) max temp
