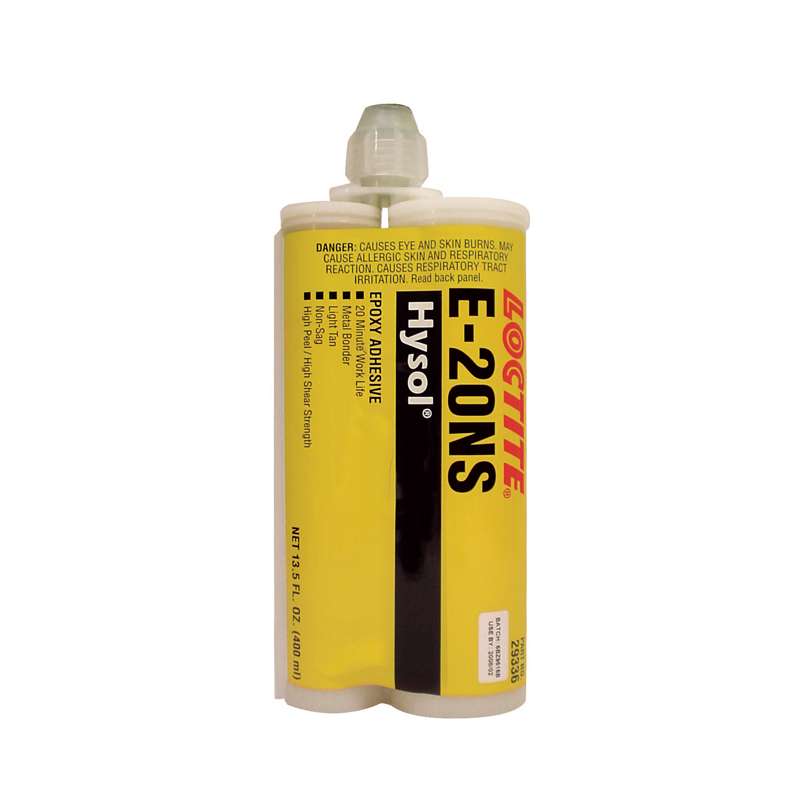

LOCTITE® HYSOL® E-20NS™ Adhesive, Non-sag, Low Odor

237121-30769 MFG #: 237121
$158.75 / CQ
Available to Order - 0 on Hand
LOCTITE® HYSOL® E-20NS™ Adhesive, Non-sag, Low Odor
  • Brand Name: Loctite
  • Series: E-20NS
  • Product Type: Epoxy Adhesive
  • Hardness: 84 to 95Shore D
  • Material Compatibility: Metal, Plastic, Glass
  • Color: Part A:Off-White; Part B:Tan/Light Green
  • Primary Color: Part A:Off-White; Part B:Brown/Light Green
  • Mix Ratio: 2:1
  • Physical Form: Viscous Liquid
  • Cure Time: 24h
  • Viscosity Measurement: Part A:80000 to 280000; Part B:30000 to 90000mPa/s
  • Shelf Life: 365 Days From Date of Manufacture
  • Chemical Composition: Part A:Epoxy Resin, Talc, Epoxy Resin, Treated Fumed Silica, Titanium Dioxide, Substituted Silane, Epoxy Resin; Part B:Talc, Quartz (SiO2), Substituted Piperazine, Nonylphenol, Diethylenetriamine, 4,4'-Isopropylidenediphenol, Treated Fumed Silica, Su
  • Specific Gravity: Part A:1.3 to 1.6; Part B:1.4 to 1.6
  • VOCs Content: <10g/L
  • Odor: Part A:Mild; Part B:Strong Ammoniacal
  • Cure Type: Room 77°F
  • Dielectric Strength: 24kV/mm
  • Elongation at Break: 4%
  • Gel Time: 40 to 80min
  • Container Capacity: 400ml
  • Container Type: Dual Cartridge
  • Applications: Bonding
  • Package Quantity: 6CA
  • Maximum Storage Temperature: 82
  • Minimum Storage Temperature: 46
  • Storage Conditions: 46-82F/8-28C

The Loctite 237121 is a Series E-20NS epoxy adhesive with a mix ratio of 2:1.

The Loctite 237121 Specifications:
  • Brand: Hysol®
  • Series: E-20NS
  • Product Type: Epoxy Adhesive
  • Hardness: 84 to 95Shore D
  • Material Compatibility: Metal, Plastic, Glass
  • Color: Part A:Off-White Part B:Tan/Light Green
  • Primary Color: Part A:Off-White Part B:Brown/Light Green
  • Mix Ratio: 2:1
  • Physical Form: Viscous Liquid
  • Cure Time: 24h
  • Viscosity Measurement: Part A:80000 to 280000 Part B:30000 to 90000mPa/s
  • Chemical Composition: Part A:Epoxy Resin, Talc, Epoxy Resin, Treated Fumed Silica, Titanium Dioxide, Substituted Silane, Epoxy Resin Part B:Talc, Quartz (SiO2), Substituted Piperazine, Nonylphenol, Diethylenetriamine, 4,4'-Isopropylidenediphenol, Treated Fumed Silica, Substitu
  • Specific Gravity: Part A:1.3 to 1.6 Part B:1.4 to 1.6
  • VOCs Content: <10g/L
  • Odor: Part A:Mild Part B:Strong Ammoniacal
  • Cure Type: Room 77°F
  • Dielectric Strength: 24kV/mm
  • Elongation at Break: 4%
  • Gel Time: 40 to 80min
  • Tensile Strength‎: 3335psi
  • Container Capacity: 400ml
  • Container Type: Dual Cartridge
  • Applications: Bonding
  • Package Quantity: 6CA
