I2000 Flex AC Current Probe
Hisco #:2584912-19816
MFG #:2584912
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

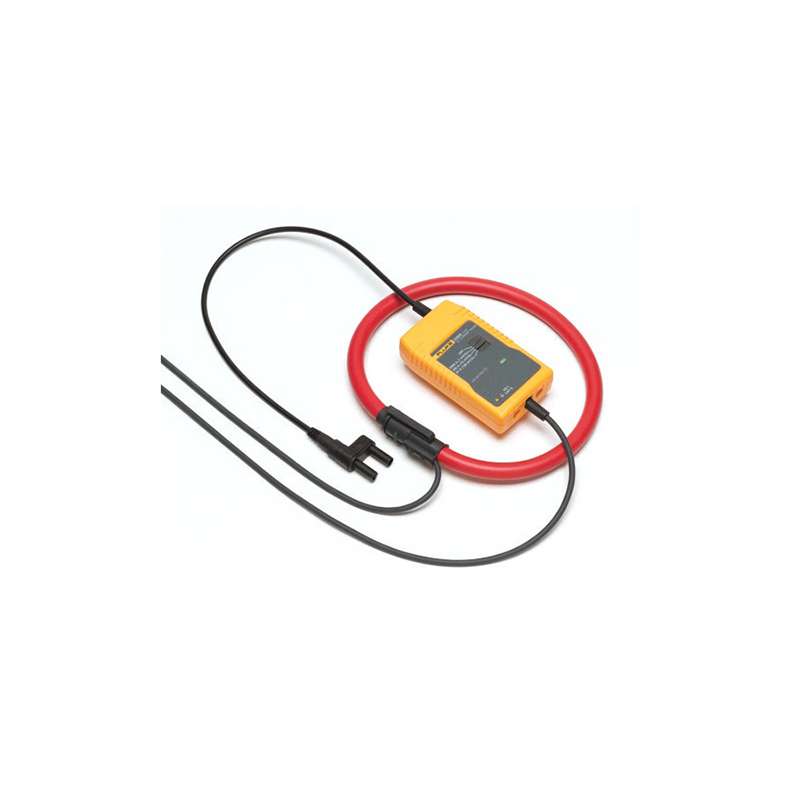

The Fluke 2584912 i2000 Flex AC Current Clamp can be used to measure currents up to 2000 A when used in conjunction with multimeters, recorders or data loggers.
Fluke 2584912 Features:- Three ranges: 20A, 200 A & 2000 A, 100 mV/A, 10 mV/A & 1 mV/A output
- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm
- CAT III 600 V safety rating
- Brand: Fluke
- Product Type: Probes
- Head Circumference: 610 mm(24 in)
- Head cable diameter: 14.3 mm (0.56 in)
- Head bend radius: 38.1 mm (1.5 in)
- Cable length(head to electronics): 2 m (6.56 ft)
- Output connection: Molded 4 mm safety plugs (not integrated)
- Operating temperature range: 0°C to +70°C (32°F to 158°F) (head and electronics)
- Operating humidity: 15% to 85% (non-condensing)
- EMC standards: EN 61326: 1998 +A1, A2, and A3
- Dimensions (H x W x D): 116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 2584912 i2000 Flex AC Current Clamp can be used to measure currents up to 2000 A when used in conjunction with multimeters, recorders or data loggers.
Fluke 2584912 Features:- Three ranges: 20A, 200 A & 2000 A, 100 mV/A, 10 mV/A & 1 mV/A output
- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm
- CAT III 600 V safety rating
- Brand: Fluke
- Product Type: Probes
- Head Circumference: 610 mm(24 in)
- Head cable diameter: 14.3 mm (0.56 in)
- Head bend radius: 38.1 mm (1.5 in)
- Cable length(head to electronics): 2 m (6.56 ft)
- Output connection: Molded 4 mm safety plugs (not integrated)
- Operating temperature range: 0°C to +70°C (32°F to 158°F) (head and electronics)
- Operating humidity: 15% to 85% (non-condensing)
- EMC standards: EN 61326: 1998 +A1, A2, and A3
- Dimensions (H x W x D): 116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)
Technical Information
Brand: Fluke
Availability: In Stock
