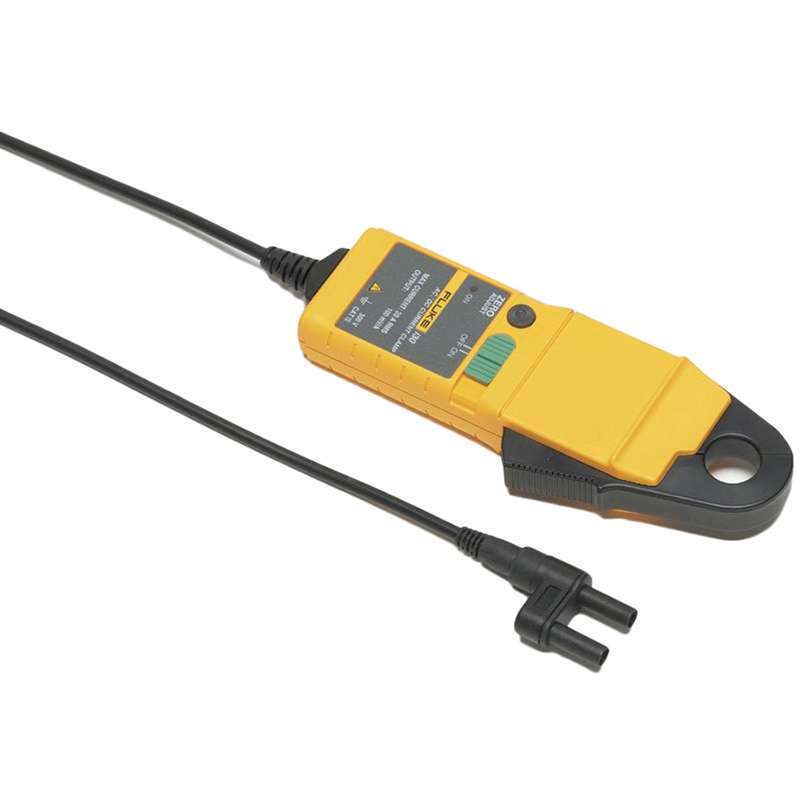

I30 AC/DC Current Clamp
Hisco #:2584920-19816
MFG #:2584920
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 2584920 i30s AC/DC Current Clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.
Fluke 2584920 Features:- Includes banana plug end for compatibility with multimeters
- Current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms
- Frequency range: DC to 20 kHz (-0.5 dB)
- CAT III 300 V safety rating
- Brand: Fluke
- Product Type: Clamp Meters
- Maximum conductor size: 19 mm diameter
- Output connection: 4 mm safety connector
- Output zero: Manual adjust via thumbwheel
- Cable length: 1.5 meters
- Operating temperature range: 0°C to +50°C
- Storage temperature range (with battery removed): -20°C to +85°C
- Operating humidity: 15% to 85% (non-condensing)
- EMC Compatibility: IEC 61326-1: Portable Electromagnetic Environment
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 2584920 i30s AC/DC Current Clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.
Fluke 2584920 Features:- Includes banana plug end for compatibility with multimeters
- Current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms
- Frequency range: DC to 20 kHz (-0.5 dB)
- CAT III 300 V safety rating
- Brand: Fluke
- Product Type: Clamp Meters
- Maximum conductor size: 19 mm diameter
- Output connection: 4 mm safety connector
- Output zero: Manual adjust via thumbwheel
- Cable length: 1.5 meters
- Operating temperature range: 0°C to +50°C
- Storage temperature range (with battery removed): -20°C to +85°C
- Operating humidity: 15% to 85% (non-condensing)
- EMC Compatibility: IEC 61326-1: Portable Electromagnetic Environment
Technical Information
Brand: Fluke
Availability: In Stock
