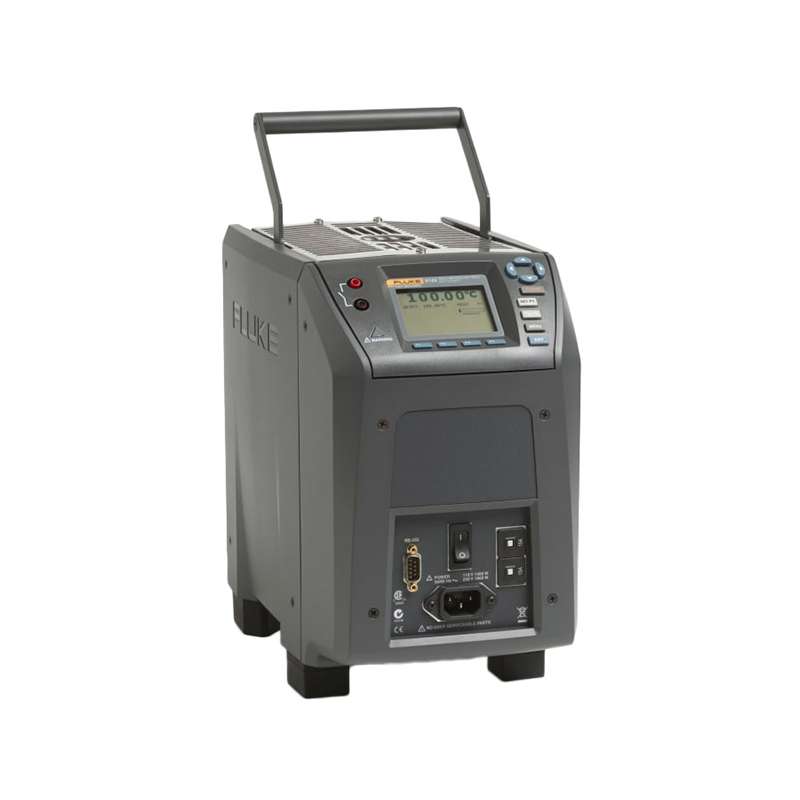

Medium Temp Field Metrology Well with insert B, 91 to 662°F
Hisco #:3054586-19816
MFG #:3054586
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 3054586 is ideal for performing accurate transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the type B insert, this unit offers a range of 91.4 to 662°F and accepts probe diameters of 1⁄8" 3⁄8", two wells of 3⁄16", and two wells of 1⁄4".
Fluke 3054586 Features:- Lightweight, portable, and fast
- Cool to -13°F (–25°C) in 15 minutes and heat to 1220°F (660°C) in 15 minutes
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01°C
- Brand: Fluke
- Product Type: Temperature Calibrators
- Resolution: 0.01°
- Display: LCD, °C or °F user-selectable
- Power Requirements: 100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V
- Computer Interface: RS-232 interface
- Automation: Use the 1586A Super-DAQ to automate temperature sensor calibration
- Dimensions: 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
Product Description
Technical Information
Back to top
Product Description
The Fluke 3054586 is ideal for performing accurate transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the type B insert, this unit offers a range of 91.4 to 662°F and accepts probe diameters of 1⁄8" 3⁄8", two wells of 3⁄16", and two wells of 1⁄4".
Fluke 3054586 Features:- Lightweight, portable, and fast
- Cool to -13°F (–25°C) in 15 minutes and heat to 1220°F (660°C) in 15 minutes
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01°C
- Brand: Fluke
- Product Type: Temperature Calibrators
- Resolution: 0.01°
- Display: LCD, °C or °F user-selectable
- Power Requirements: 100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V
- Computer Interface: RS-232 interface
- Automation: Use the 1586A Super-DAQ to automate temperature sensor calibration
- Dimensions: 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
