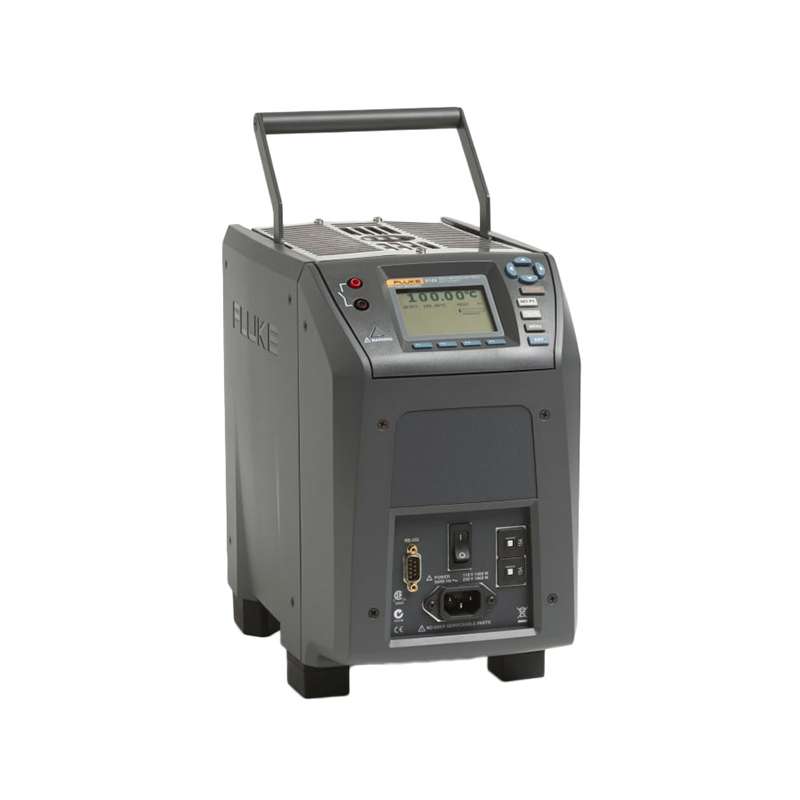

Medium Temp Field Metrology Well with insert C, 91 to 662°F
Hisco #:3054629-19816
MFG #:3054629
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 3054629 is ideal for performing accurate transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the type C insert, this unit offers a range of 91.4 to 662°F and accepts four wells with 1⁄4" probe diameters.
Fluke 3054629 Features:- Lightweight, portable, and fast
- Cool to -13°F (–25°C) in 15 minutes and heat to 1220°F (660°C) in 15 minutes
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01°C
- Brand: Fluke
- Product Type: Temperature Calibrators
- Resolution: 0.01°
- Display: LCD, °C or °F user-selectable
- Power Requirements: 100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V
- Computer Interface: RS-232 interface
- Automation: Use the 1586A Super-DAQ to automate temperature sensor calibration
- Dimensions: 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 3054629 is ideal for performing accurate transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the type C insert, this unit offers a range of 91.4 to 662°F and accepts four wells with 1⁄4" probe diameters.
Fluke 3054629 Features:- Lightweight, portable, and fast
- Cool to -13°F (–25°C) in 15 minutes and heat to 1220°F (660°C) in 15 minutes
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01°C
- Brand: Fluke
- Product Type: Temperature Calibrators
- Resolution: 0.01°
- Display: LCD, °C or °F user-selectable
- Power Requirements: 100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V
- Computer Interface: RS-232 interface
- Automation: Use the 1586A Super-DAQ to automate temperature sensor calibration
- Dimensions: 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
Technical Information
Brand: Fluke
