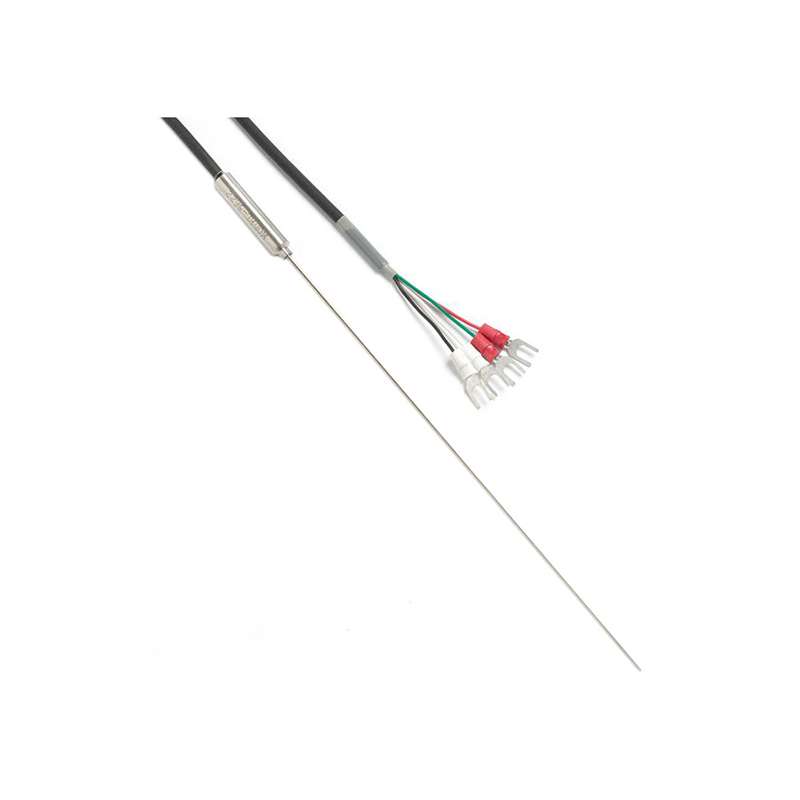

Fast Response Platinum Resistance Thermometer, PRT, with Info-Con for 1523/1524 Models, 0.02in, 6ft Lead
Hisco #:3377004-19816
MFG #:3377004
Our Price: $935.32 Piece
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1 Piece
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 3377004 5622-05-P Thermometer is ideal for short immersion over a wide temperature range and features INFO-CON connections for 1523 and 1524 models with a 0.02in sheath.
Fluke 3377004 Features:- Time constants as fast as 0.4 seconds
- Available as DIN/IEC Class A PRTs or with NVLAP-accredited calibration, lab code 200348-0
- Small probe diameters ranging from 0.02 to 0.13in (0.5 to 3.2mm)
- Brand: Fluke
- Product Type: Probes
- Temperature Range: -328 to 662°F (-200 to 350°C)
- Nominal RTPW: 100Ω
- Temperature Coefficient: 0.00385Ω/Ω/°C nominal
- Uncalibrated DIN/IEC Conformity: DIN/IEC Class A; ±0.15°C at 0°C
- Time Constant (63.2%): From 0°C to 100°C: 0.4 seconds
- Immersion Depth: 0.4in (10mm)
- Thermal EMF: 20mV at 350°C
- Sheath: 316 SST, 4 x 0.02in (100 x 0.5mm)
- Cable: PVC, 4-wire cable, 6.56ft (2m) long, 194°F (90°C) max temp
Product Description
Technical Information
Back to top
Product Description
The Fluke 3377004 5622-05-P Thermometer is ideal for short immersion over a wide temperature range and features INFO-CON connections for 1523 and 1524 models with a 0.02in sheath.
Fluke 3377004 Features:- Time constants as fast as 0.4 seconds
- Available as DIN/IEC Class A PRTs or with NVLAP-accredited calibration, lab code 200348-0
- Small probe diameters ranging from 0.02 to 0.13in (0.5 to 3.2mm)
- Brand: Fluke
- Product Type: Probes
- Temperature Range: -328 to 662°F (-200 to 350°C)
- Nominal RTPW: 100Ω
- Temperature Coefficient: 0.00385Ω/Ω/°C nominal
- Uncalibrated DIN/IEC Conformity: DIN/IEC Class A; ±0.15°C at 0°C
- Time Constant (63.2%): From 0°C to 100°C: 0.4 seconds
- Immersion Depth: 0.4in (10mm)
- Thermal EMF: 20mV at 350°C
- Sheath: 316 SST, 4 x 0.02in (100 x 0.5mm)
- Cable: PVC, 4-wire cable, 6.56ft (2m) long, 194°F (90°C) max temp
