Fast Response Platinum Resistance Thermometer with Info-Con for the 1523 and 1524, 0.13in, 6ft lead
Hisco #:3377037-19816
MFG #:3377037
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

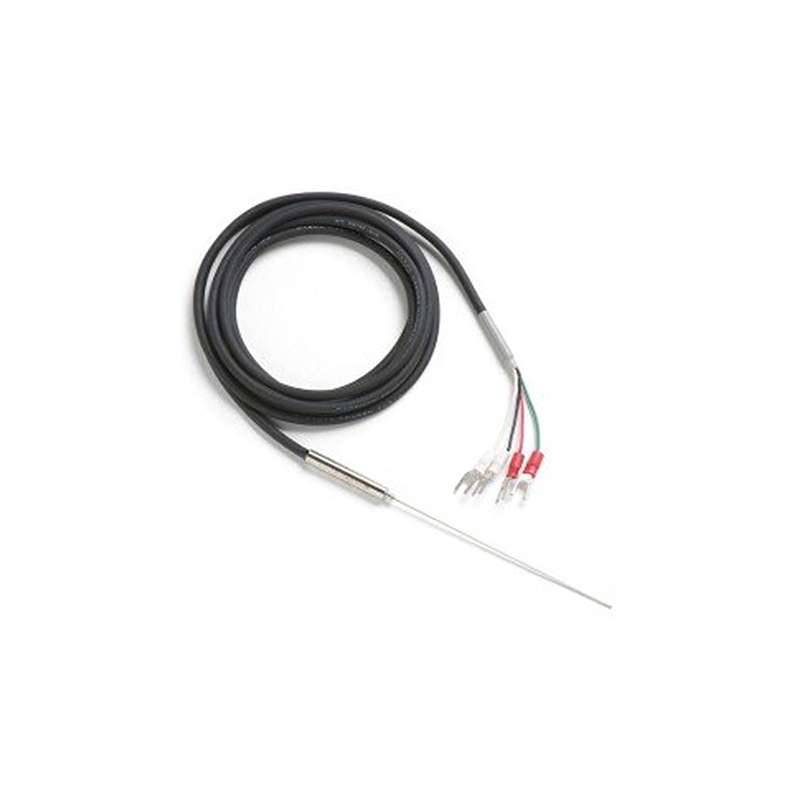

The Fluke 3377037 5622-32-P Thermometer is designed for use with the 1523 and 1524 reference thermometers and is ideal for short immersion over a wide temperature range.
Fluke 3377037 Features:- Time constants as fast as 0.4 seconds
- Small probe diameters ranging from 0.02 to 0.13in (0.5 to 3.2mm)
- Brand: Fluke
- Product Type: Probes
- Temperature Range: -328 to 662°F (-200 to 350°C)
- Nominal RTPW: 100Ω
- Temperature Coefficient: 0.00385Ω/Ω/°C nominal
- Uncalibrated DIN/IEC Conformity: DIN/IEC Class A; ±0.15°C at 0°C
- Time Constant (63.2%): From 32 to 212°F (0 to 100°C): 10 seconds (90%)
- Immersion Depth: 2.5” (64mm)
- Thermal EMF: 20mV at 350°C
- Sheath: 316 SST, 8 x 0.13in (200 x 3.2mm)
- Cable: PVC, 4-wire cable, 6.56ft (2m) long, 194°F (90°C) max temp
Product Description
Technical Information
Back to top
Product Description
The Fluke 3377037 5622-32-P Thermometer is designed for use with the 1523 and 1524 reference thermometers and is ideal for short immersion over a wide temperature range.
Fluke 3377037 Features:- Time constants as fast as 0.4 seconds
- Small probe diameters ranging from 0.02 to 0.13in (0.5 to 3.2mm)
- Brand: Fluke
- Product Type: Probes
- Temperature Range: -328 to 662°F (-200 to 350°C)
- Nominal RTPW: 100Ω
- Temperature Coefficient: 0.00385Ω/Ω/°C nominal
- Uncalibrated DIN/IEC Conformity: DIN/IEC Class A; ±0.15°C at 0°C
- Time Constant (63.2%): From 32 to 212°F (0 to 100°C): 10 seconds (90%)
- Immersion Depth: 2.5” (64mm)
- Thermal EMF: 20mV at 350°C
- Sheath: 316 SST, 8 x 0.13in (200 x 3.2mm)
- Cable: PVC, 4-wire cable, 6.56ft (2m) long, 194°F (90°C) max temp
