Insulation Tester, Extended Lead Kit, with 50ft Test Lead
Hisco #:3504709-19816
MFG #:3504709
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

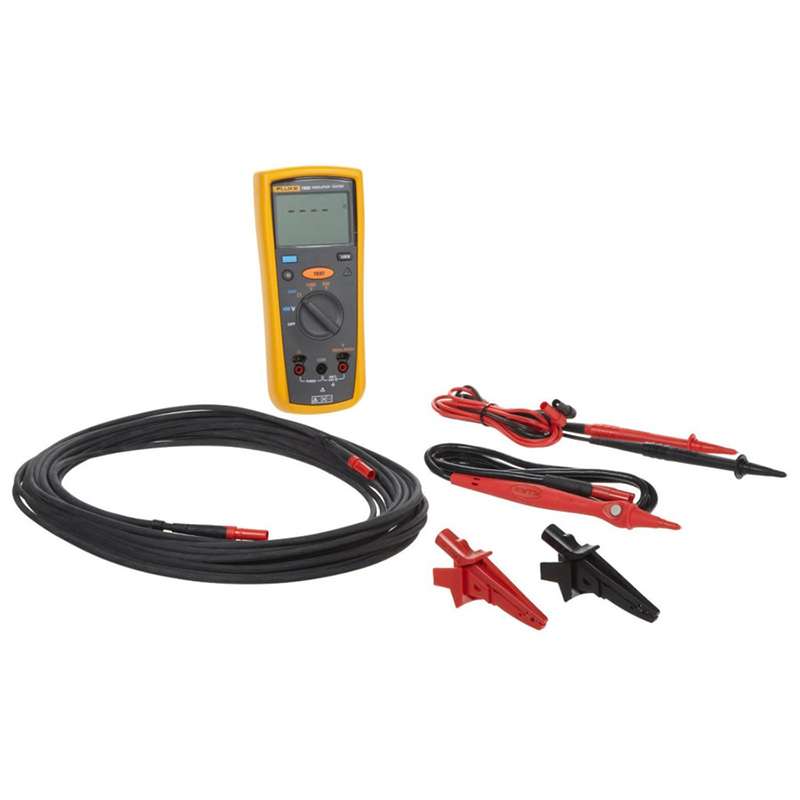

The Fluke 3504709 features multiple test voltages, which is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additionally, it comes equipped with a remote probe, test leads, test probes, alligator clips, and 50' test lead.
Fluke 3504709 Features:- A rugged, compact insulation resistance tester for residential and commercial electricians
- Performs insulation tests from 0.01 to 2000 MΩ
- Offers two insulation test voltages: 500 and 1000 V
- Includes live circuit detection to prevent insulation test if voltage >30 V is detected
- Measures resistance from 0.01 to 20.00 kΩ
- Saves battery power with auto power off
- Brand: Fluke
- Product Type: Multimeter Test Kits
- Input Impedance: 3 MΩ (nominal), <100 pF
- Common Mode Rejection Ratio (1 kΩ unbalanced): >60 dB at DC, 50 or 60 Hz
- AC/DC Voltage Measurement Overload Protection: 600 V rms or DC
- Maximum Capacitive Load: Operable with up to 1 µF load
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 3504709 features multiple test voltages, which is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additionally, it comes equipped with a remote probe, test leads, test probes, alligator clips, and 50' test lead.
Fluke 3504709 Features:- A rugged, compact insulation resistance tester for residential and commercial electricians
- Performs insulation tests from 0.01 to 2000 MΩ
- Offers two insulation test voltages: 500 and 1000 V
- Includes live circuit detection to prevent insulation test if voltage >30 V is detected
- Measures resistance from 0.01 to 20.00 kΩ
- Saves battery power with auto power off
- Brand: Fluke
- Product Type: Multimeter Test Kits
- Input Impedance: 3 MΩ (nominal), <100 pF
- Common Mode Rejection Ratio (1 kΩ unbalanced): >60 dB at DC, 50 or 60 Hz
- AC/DC Voltage Measurement Overload Protection: 600 V rms or DC
- Maximum Capacitive Load: Operable with up to 1 µF load
Technical Information
Brand: Fluke
