Intrinsically Safe True RMS Digital Multimeter
Hisco #:4017176-19816
MFG #:4017176
Item must be ordered in multiples of 1

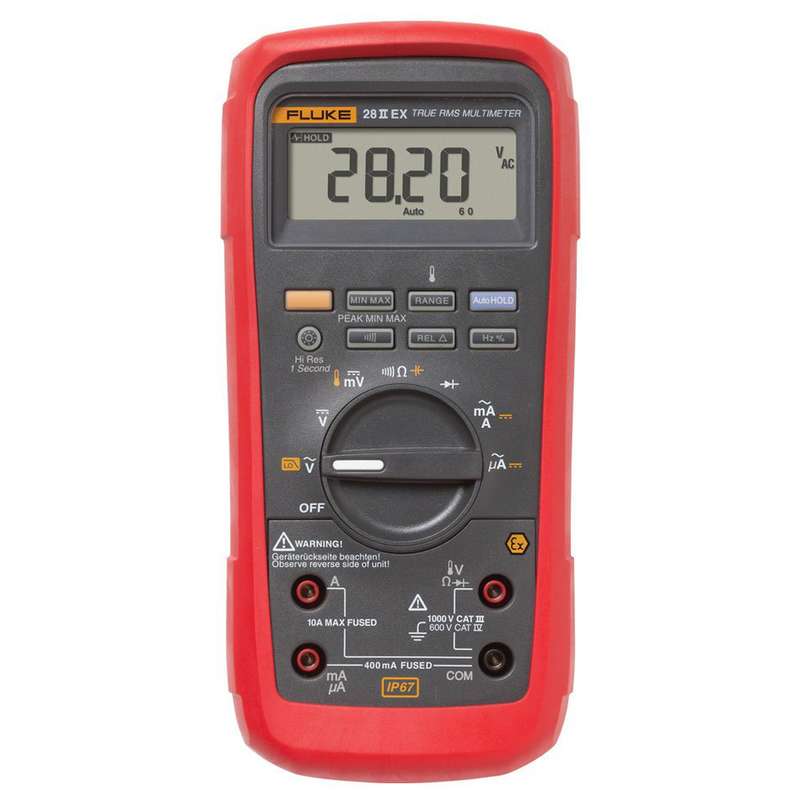

Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter
Key Features
A completely sealed, IP67 rated case
Withstands drops up to 10 ft or 3 m (with holster)
Waterproof per IEC 60529 IPx7
CAT III 1000 V, CAT IV 600 V
Reversible holster for added protection of the display when not in use
Functions and Specifications
4-1/2 digit mode for precise measurements (20 000 counts)
True-rms ac voltage and current for accurate measurement on nonlinear signals
Measures up to 1000 V and 10A AC and DC (note that Ex zones require reduced measurements)
Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)
Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies
Resistance, continuity and diode test
10 000 μF capacitance range for components and motor caps
Conductance measurements for high resistance or leakage tests
Min/Max-Average and Peak capture to record transients and variations automatically
Relative mode to remove test lead interference on resistance measurements
Auto and manual ranging for maximum flexibility
Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs
Easy to use:
Backlit keypad buttons provide extra visibility in poorly lit areas, even when you’re wearing full PPE
Large display digits and 2-level bright white backlight also increases visibility
Long battery life – 400 hours typical without backlight (Alkaline)
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
The Fluke 28II Ex intrinsically safe digital multimeter combines durability, safety, and versatility, making it an essential tool for professionals working in hazardous environments such as petroleum, chemical, and pharmaceutical industries. Designed to withstand extreme conditions, this rugged DMM is waterproof, and drop-proof, ensuring reliable performance in demanding settings.
INTRINSICALLY SAFE
The 28II Ex multimeter’s certification allows you to carry the most trusted name in DMM’s into many Ex rated areas.
INTRINSICALLY RUGGED
Tested for drops of up to 3 meters (10 feet), waterproof, and this completely sealed and extremely rugged DMM survives the roughest treatment in the harshest environments, Fluke 28II Ex is one of the most rugged intrinsically safe digital multimeters available.
INTRINSICALLY RELIABLE
Like all Fluke DMMs, the 28II Ex delivers the accuracy and measurement performance you depend upon to succeed in your work, day after day.
Intrinsic safety and regulatory approvals
The 28II Ex carries Ex certifications from the world’s leading certification bodies.
USA
Class I Zone 1 AEx ia IIC T4
USA and Canada
Class I, Division 1, Groups ABCD T4
Europe, China, Australia, Brazil
See “Safety Certifications” on back page
28II safety compliance
IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: Measurement CAT III 1000 V / CAT IV 600V
In the Box
Fluke 28 II Ex Intrinsically Safe Digital Multimeter
Ex-holster
Alligator clips x1
Test leads x1
Installed batteries
Quick reference guide
Product Description
Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter
Key Features
A completely sealed, IP67 rated case
Withstands drops up to 10 ft or 3 m (with holster)
Waterproof per IEC 60529 IPx7
CAT III 1000 V, CAT IV 600 V
Reversible holster for added protection of the display when not in use
Functions and Specifications
4-1/2 digit mode for precise measurements (20 000 counts)
True-rms ac voltage and current for accurate measurement on nonlinear signals
Measures up to 1000 V and 10A AC and DC (note that Ex zones require reduced measurements)
Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)
Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies
Resistance, continuity and diode test
10 000 μF capacitance range for components and motor caps
Conductance measurements for high resistance or leakage tests
Min/Max-Average and Peak capture to record transients and variations automatically
Relative mode to remove test lead interference on resistance measurements
Auto and manual ranging for maximum flexibility
Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs
Easy to use:
Backlit keypad buttons provide extra visibility in poorly lit areas, even when you’re wearing full PPE
Large display digits and 2-level bright white backlight also increases visibility
Long battery life – 400 hours typical without backlight (Alkaline)
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
The Fluke 28II Ex intrinsically safe digital multimeter combines durability, safety, and versatility, making it an essential tool for professionals working in hazardous environments such as petroleum, chemical, and pharmaceutical industries. Designed to withstand extreme conditions, this rugged DMM is waterproof, and drop-proof, ensuring reliable performance in demanding settings.
INTRINSICALLY SAFE
The 28II Ex multimeter’s certification allows you to carry the most trusted name in DMM’s into many Ex rated areas.
INTRINSICALLY RUGGED
Tested for drops of up to 3 meters (10 feet), waterproof, and this completely sealed and extremely rugged DMM survives the roughest treatment in the harshest environments, Fluke 28II Ex is one of the most rugged intrinsically safe digital multimeters available.
INTRINSICALLY RELIABLE
Like all Fluke DMMs, the 28II Ex delivers the accuracy and measurement performance you depend upon to succeed in your work, day after day.
Intrinsic safety and regulatory approvals
The 28II Ex carries Ex certifications from the world’s leading certification bodies.
USA
Class I Zone 1 AEx ia IIC T4
USA and Canada
Class I, Division 1, Groups ABCD T4
Europe, China, Australia, Brazil
See “Safety Certifications” on back page
28II safety compliance
IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: Measurement CAT III 1000 V / CAT IV 600V
In the Box
Fluke 28 II Ex Intrinsically Safe Digital Multimeter
Ex-holster
Alligator clips x1
Test leads x1
Installed batteries
Quick reference guide
