Dual Sensor Pressure Calibrator, 36 PSIG, 5000 PSIG
Hisco #:4353514-19816
MFG #:4353514
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

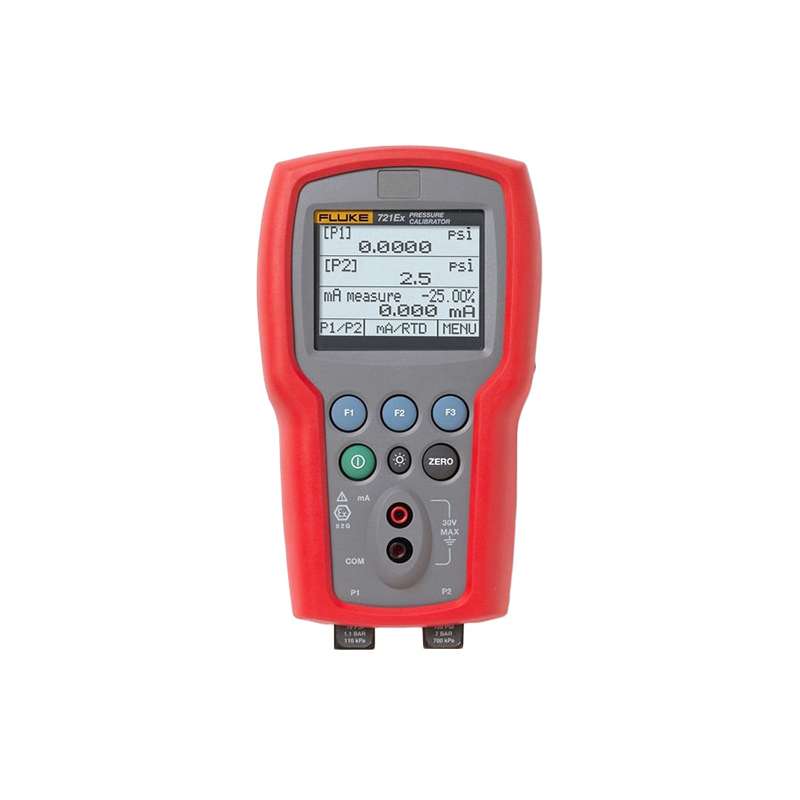

The Fluke 4353514 allows you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). Features a 36 psig/5000 psig pressure range.
Fluke 4353514 Features:- Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
- Two isolated, stainless steel, pressure sensors with 0.025% accuracy
- Switch test on both pressure inputs
- Precision temperature measurement with optional RTD probe
- Brand: Fluke
- Product Type: Pressure Calibrators
- Resolution: 0.001 psi (0.0001 bar)
- Accuracy: ±0.025% f.s.
- Current Range: 0 to 24mA
- Loop Supply Range: 24V
- Power Supply: (4) standard AA batteries
- Dimensions: 7.9 x 4.3 x 2.3 (20 x 11 x 5.8 cm)
- Connectors/ports pressure: Two, 1/8” NPT, 750P Series Pressure Module; RTD Probe
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4353514 allows you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). Features a 36 psig/5000 psig pressure range.
Fluke 4353514 Features:- Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
- Two isolated, stainless steel, pressure sensors with 0.025% accuracy
- Switch test on both pressure inputs
- Precision temperature measurement with optional RTD probe
- Brand: Fluke
- Product Type: Pressure Calibrators
- Resolution: 0.001 psi (0.0001 bar)
- Accuracy: ±0.025% f.s.
- Current Range: 0 to 24mA
- Loop Supply Range: 24V
- Power Supply: (4) standard AA batteries
- Dimensions: 7.9 x 4.3 x 2.3 (20 x 11 x 5.8 cm)
- Connectors/ports pressure: Two, 1/8” NPT, 750P Series Pressure Module; RTD Probe
Technical Information
Brand: Fluke
