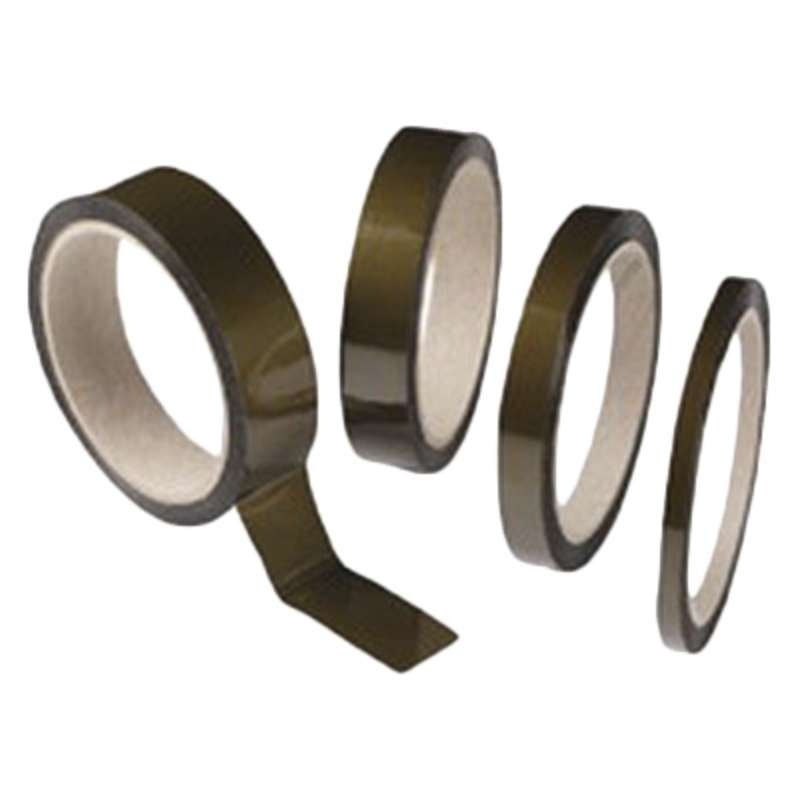

Wescorp™ 47027 High Temperature ESD Tape, 1/2 in x 36 yd x 2.4 mil
Hisco #:47027-6942
MFG #:47027
Our Price: $49.23 RL
Ships direct from manufacturer
Manufacturer Estimated Lead Time When Not In Stock: 13 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 49.23 | |
| 3 | 48.19 | Save |
The Wescorp 47027 is an esd high temp polyimide tape with a color of brown.
The Wescorp 47027 Features:- Removal leaves little or no residue
- Static charge generation during unwind and peel off stainless steel plate application is 5 volts @ 50% RH
- 1.0 mil thick (0.001" or 0.0254 mm) Polyimide film (DuPont Kapton® or equivalent)
- 1.4 mil thick (0.0014" or 0.0356 mm) conductive polysiloxide adhesive
- Adhesive surface resistivity 10E3 to 10E4 ohms
- Max Temperature 260°C (500°F)
- For best results, apply to board using a rubber roller
- Product Type: Anti-Static Tape
- Printed (Yes/No): No
- Adhesive Material: Conductive Polysiloxide
- Backing Material: Polyimide Film
- Material Category: Plastic
- Color: Brown
- Primary Color: Brown
- Length: 36yd
- Width: 0.5in
- Thickness: 2.4mil
- Surface Resistance: 10^3 to 10^4Ω
- Applications: Masking PCB Gold Features for Wave Soldering and IR Reflow Ovens
- Package Quantity: 1EA
- Maximum Operating Temperature: +500°F
- Special Features: ESD
- Standards Met: RoHS Compliant
Product Description
Technical Information
Back to top
Product Description
The Wescorp 47027 is an esd high temp polyimide tape with a color of brown.
The Wescorp 47027 Features:- Removal leaves little or no residue
- Static charge generation during unwind and peel off stainless steel plate application is 5 volts @ 50% RH
- 1.0 mil thick (0.001" or 0.0254 mm) Polyimide film (DuPont Kapton® or equivalent)
- 1.4 mil thick (0.0014" or 0.0356 mm) conductive polysiloxide adhesive
- Adhesive surface resistivity 10E3 to 10E4 ohms
- Max Temperature 260°C (500°F)
- For best results, apply to board using a rubber roller
- Product Type: Anti-Static Tape
- Printed (Yes/No): No
- Adhesive Material: Conductive Polysiloxide
- Backing Material: Polyimide Film
- Material Category: Plastic
- Color: Brown
- Primary Color: Brown
- Length: 36yd
- Width: 0.5in
- Thickness: 2.4mil
- Surface Resistance: 10^3 to 10^4Ω
- Applications: Masking PCB Gold Features for Wave Soldering and IR Reflow Ovens
- Package Quantity: 1EA
- Maximum Operating Temperature: +500°F
- Special Features: ESD
- Standards Met: RoHS Compliant
Technical Information
Brand: Wescorp
Weight: 0.085
Country Of Origin: IE
Harmonized Code: 3919.10.2055
UPC Code: No UPC
