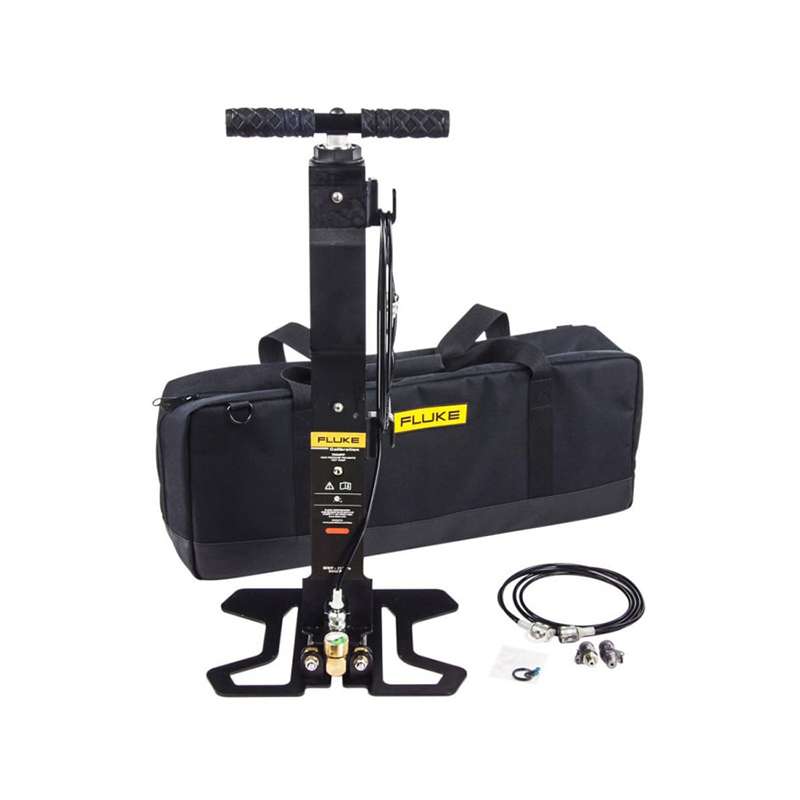

High Pressure Pneumatic Test Pump, 21 MPA, Metric
Hisco #:4810470-19816
MFG #:4810470
Our Price: $4,102.10 Piece
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1 Piece
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4810470 Pump/Comparator Kit supplies pressure to devices under test (DUTs) that include transmitters, controllers, pilots, digital and analog gauges, and more. Ideal choice for calibration technicians, test engineers, and instrument technicians.
Fluke 4810470 Features:- No weights to load and unload, transport or send out for calibration
- Provides real-time pressure indication with no need to know and correct for local gravity or ambient temperature
- No piston-cylinder changes
- No significant sensitivity to level or vibration
- Operates in any unit of measure, switching easily from one unit to the next
- Brand: Fluke
- Product Type: Comparators
- Maximum Working Pressure: 3000 psi (21 MPa)
- Time to Generate Full Scale Pressure with 10cc Volume (s): 20
- Reference Gauge Connection: 1/4 NPT, Quick Connect
- Inlet Supply Contamination Protection: Desiccant Filter
- DUT Contamination Protection Filter: 100 Micron
- Fine Adjustment Resolution: 0.05% rdg
- Maximum Leak Rate: Isolation Valve Closed: 0.01% rdg
- Dimensions: 66 x 30.5 x 13cm (26 x 12 x 5")
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4810470 Pump/Comparator Kit supplies pressure to devices under test (DUTs) that include transmitters, controllers, pilots, digital and analog gauges, and more. Ideal choice for calibration technicians, test engineers, and instrument technicians.
Fluke 4810470 Features:- No weights to load and unload, transport or send out for calibration
- Provides real-time pressure indication with no need to know and correct for local gravity or ambient temperature
- No piston-cylinder changes
- No significant sensitivity to level or vibration
- Operates in any unit of measure, switching easily from one unit to the next
- Brand: Fluke
- Product Type: Comparators
- Maximum Working Pressure: 3000 psi (21 MPa)
- Time to Generate Full Scale Pressure with 10cc Volume (s): 20
- Reference Gauge Connection: 1/4 NPT, Quick Connect
- Inlet Supply Contamination Protection: Desiccant Filter
- DUT Contamination Protection Filter: 100 Micron
- Fine Adjustment Resolution: 0.05% rdg
- Maximum Leak Rate: Isolation Valve Closed: 0.01% rdg
- Dimensions: 66 x 30.5 x 13cm (26 x 12 x 5")
Technical Information
Brand: Fluke
