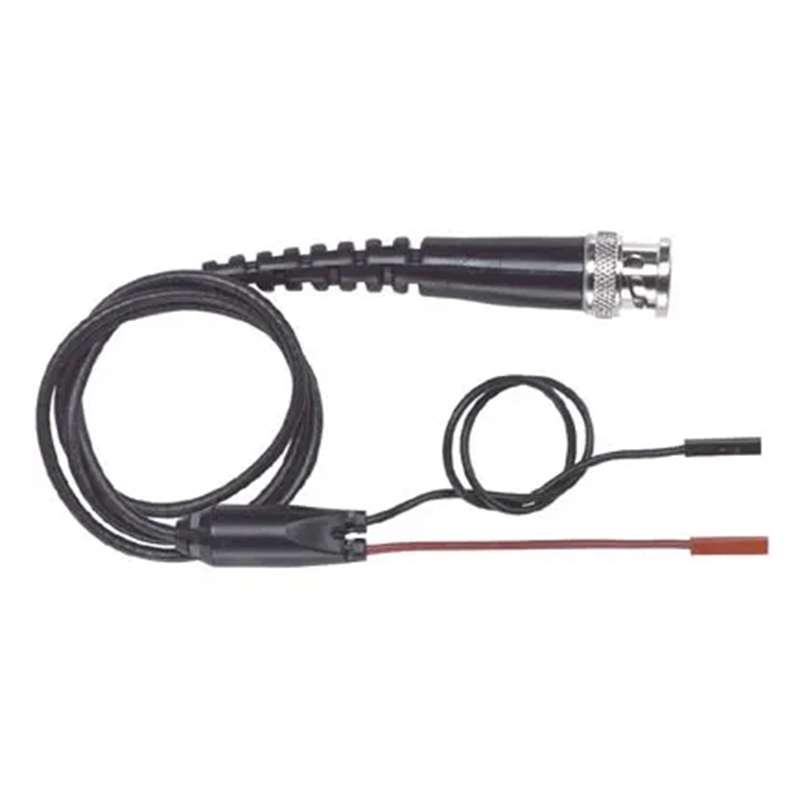

BNC Male to .025" Square Pin Receptacles on RG174/U, 48"
Hisco #:4945-K-48-19816
MFG #:4945-K-48
Our Price: $42.99 Piece
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 2 Pieces
Item must be ordered in multiples of 2
Item must be ordered in multiples of 2
| Quantity | Price | Save |
|---|---|---|
| 6 | 42.09 | Save |
The Pomona 4945-K-48 is a test lead with a connector end1 of male bnc plug.
The Pomona 4945-K-48 Features:- BNC connector and breakout wires are molded directly to the cable for added pull strength
- Alligators clip jaws open up to 0.187 inch
- BNC features PTFE dielectric and gold plated center contact for optimum electrical performance
- Product Type: Test Lead
- Voltage Rating: 30 V ac 60 V dc 500 Vrms
- Connector End1: Male BNC Plug
- Connector End2: Square Pin Receptacle
- Wire Size: 26AWG
- Lead Length: 48in
- Tip Length: 0.52in
- Insulation Material: Square Pin Receptacle:Polypropylene Wire:PVC BNC:PTFE
- Body Material: BNC:Brass Square Pin Receptacle:Phosphor Bronze
- Tip Material: BNC:Brass
- Color: Black
- Maximum Operating Temperature: +167°F
- Minimum Operating Temperature: -40°F
- Primary Color: Black
Product Description
Technical Information
Back to top
Product Description
The Pomona 4945-K-48 is a test lead with a connector end1 of male bnc plug.
The Pomona 4945-K-48 Features:- BNC connector and breakout wires are molded directly to the cable for added pull strength
- Alligators clip jaws open up to 0.187 inch
- BNC features PTFE dielectric and gold plated center contact for optimum electrical performance
- Product Type: Test Lead
- Voltage Rating: 30 V ac 60 V dc 500 Vrms
- Connector End1: Male BNC Plug
- Connector End2: Square Pin Receptacle
- Wire Size: 26AWG
- Lead Length: 48in
- Tip Length: 0.52in
- Insulation Material: Square Pin Receptacle:Polypropylene Wire:PVC BNC:PTFE
- Body Material: BNC:Brass Square Pin Receptacle:Phosphor Bronze
- Tip Material: BNC:Brass
- Color: Black
- Maximum Operating Temperature: +167°F
- Minimum Operating Temperature: -40°F
- Primary Color: Black
Technical Information
Brand: Pomona
Weight: 0.1
Country Of Origin: US
Harmonized Code: 8544.42.2000
UPC Code: 095969169943
