Cutters, Standoff Shear Small Frame .060" Standoff, Long Thin Jaw
Hisco #:530E-4-US-060-18168
MFG #:530E-4-US-060
$
Manufacturer Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

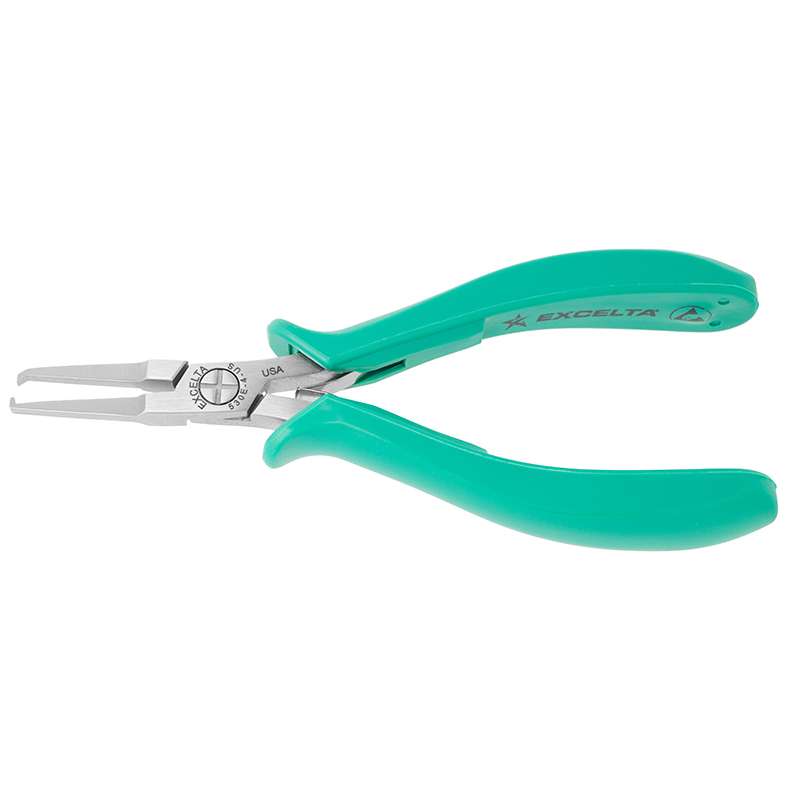

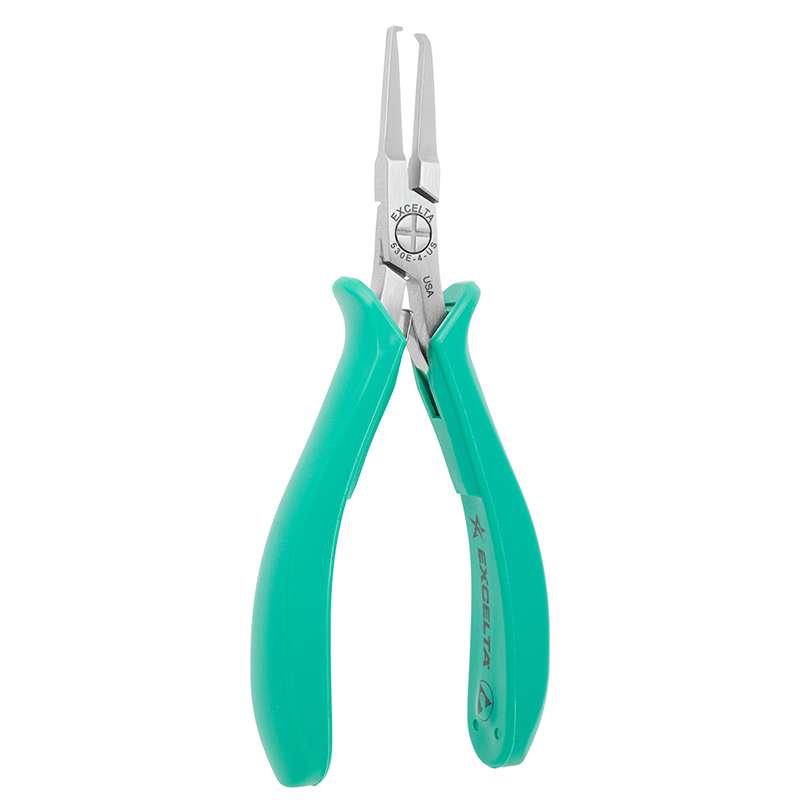

The Excelta 530E-4-US-060 is a 5.75" long jaw anti-shock shear cutter designed with a long thinner tip to fit between connector pins. The tip width is .100". It's recommended cutting capacity is 24 AWG (.020" diameter). It features an ergonomically molded antimicrobial grip (10¹⁰ ohms/sq surface resistivity) with dual leaf springs.
Excelta 530E-4-US-060 Features:- Reduces shock
- Offers ergonomic grip
- Fits between connector pins
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .10" x .060" (2.5mm x 1.5mm)
- Body Height: 0.25" (6.25mm)
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .090"
- Handle Type: Standard Molded Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 5.75" (143.75mm)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Excelta 530E-4-US-060 is a 5.75" long jaw anti-shock shear cutter designed with a long thinner tip to fit between connector pins. The tip width is .100". It's recommended cutting capacity is 24 AWG (.020" diameter). It features an ergonomically molded antimicrobial grip (10¹⁰ ohms/sq surface resistivity) with dual leaf springs.
Excelta 530E-4-US-060 Features:- Reduces shock
- Offers ergonomic grip
- Fits between connector pins
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .10" x .060" (2.5mm x 1.5mm)
- Body Height: 0.25" (6.25mm)
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .090"
- Handle Type: Standard Molded Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 5.75" (143.75mm)
Technical Information
Brand: Excelta
Weight: 0.375
Country Of Origin: US
UPC Code: 662847013355
