Dual Layer Rubber, Dimensions 48 x 24 x 0.06, Gray
Hisco #:66224-15062
MFG #:66224
$
Manufacturer Lead Time When Not In Stock: 10 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

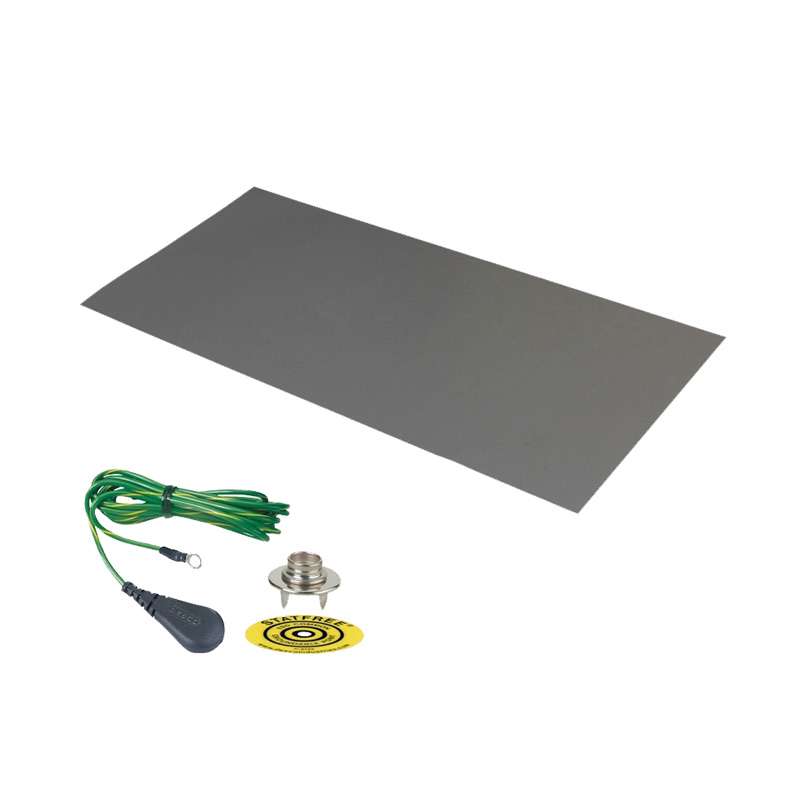

The Desco 66224 is a dual layer rubber with a length of 48.
The Desco 66224 Features:- Dissipative Dual Layer Rubber Material provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner
- Dissipative (1 x 106 to < 1 x 109 ohms Rtt) Top Layer meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.
- Conductive (< 1 x 104 ohms Rtt) Bottom Layer the dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD workstation monitors
- Heat and Chemical resistant may be used with soldering iron, flux, and other chemicals
- Includes Grounding Hardware: 09817- Cord and 09861- Push and Clinch Snap
- Product Type: Mat Top Kit
- Material Properties: Conductive Dissipative
- Color: Gray
- Primary Color: Gray
- Dimensions: 48 x 24 x 0.06in
- Length: 48in
- Width: 24in
- Thickness: 0.06in
- Resistance: 1 x 10^6 to <1 x 10^9Ω
- Number of Layers: 2
- Decay Time: <0.01s
- Resistance Properties: Chemical Resistance Heat Resistance
- Standards Met: ANSI/ESD S4.1, ANSI/ESD S20.20
- Includes: Benchmat, Ground Cord, Push and Cinch Snap
Product Description
Technical Information
Back to top
Product Description
The Desco 66224 is a dual layer rubber with a length of 48.
The Desco 66224 Features:- Dissipative Dual Layer Rubber Material provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner
- Dissipative (1 x 106 to < 1 x 109 ohms Rtt) Top Layer meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.
- Conductive (< 1 x 104 ohms Rtt) Bottom Layer the dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with ESD workstation monitors
- Heat and Chemical resistant may be used with soldering iron, flux, and other chemicals
- Includes Grounding Hardware: 09817- Cord and 09861- Push and Clinch Snap
- Product Type: Mat Top Kit
- Material Properties: Conductive Dissipative
- Color: Gray
- Primary Color: Gray
- Dimensions: 48 x 24 x 0.06in
- Length: 48in
- Width: 24in
- Thickness: 0.06in
- Resistance: 1 x 10^6 to <1 x 10^9Ω
- Number of Layers: 2
- Decay Time: <0.01s
- Resistance Properties: Chemical Resistance Heat Resistance
- Standards Met: ANSI/ESD S4.1, ANSI/ESD S20.20
- Includes: Benchmat, Ground Cord, Push and Cinch Snap
Technical Information
Brand: Desco
Weight: 4.5
Country Of Origin: US
UPC Code: No UPC
$
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
