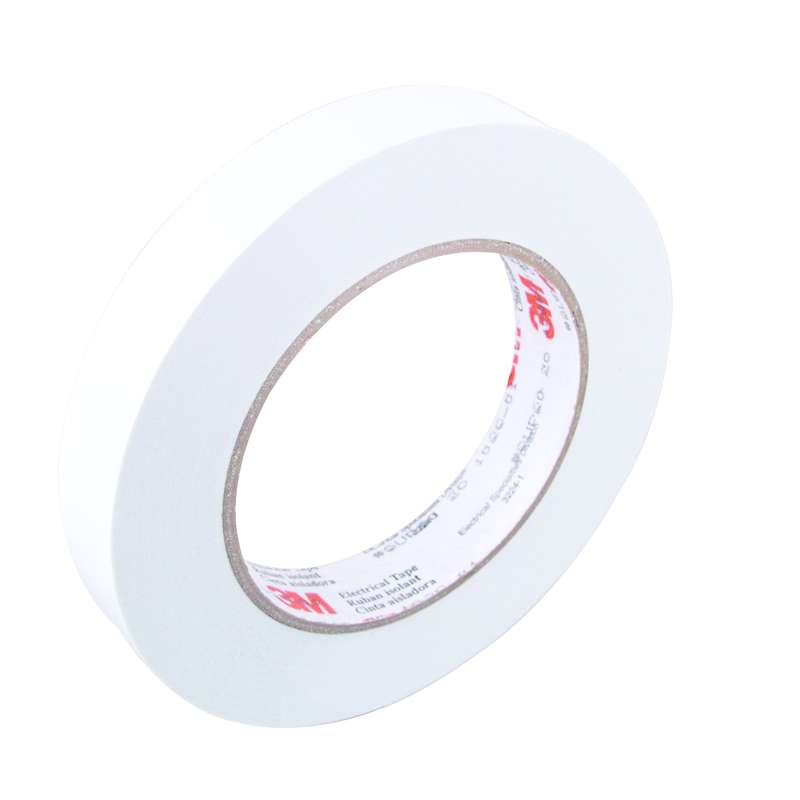

3M™ Epoxy Film Electrical Tape Super 20, 15.5 in X 60 yd log trimmed, both sides, 1 Roll/Case

3M™ Epoxy Film Electrical Tape Super 20 is a 5 mil thick, high dielectric electrical tape. This flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).

3M™ Tape Super 20 has an acrylic, pressure sensitive adhesive and is resistant to heat, oxidation, solvents and oils. This puncture resistant tape has excellent electrical and handling properties. Highly conformable tape is tough and provides resistant to solder damage. It is suitable for use in wrapping relays, coils, transformers, bobbin wound sub fractional horsepower shaded pole motors and stick wound coils. UL Listed and RoHS 2011/65/EU Compliant.

• The combination of the acrylic adhesive and the epoxy film backing provides excellent adherence and electrical properties
• Flame-retardant and highly resistant to heat, oxidation, solvents and oils
• Suitable for use in transformers, coils, stick-wound coils, wrapping relays and bobbin-wound, sub-fractional horsepower, shaded-pole motors
• Withstands a temperature range of 32 to 311 °F (0 to 155 °C)
• Printable
• UL Listed and RoHS 2011/65/EU Compliant

• Color: Cream
• Package Quantity: 1 RLS
• Part Number: S20LOG 15.5"X60YD
• Specifications: UL Listed, RoHS 2011/65/EU, UL 510N/A
• Width: 15.512 in
