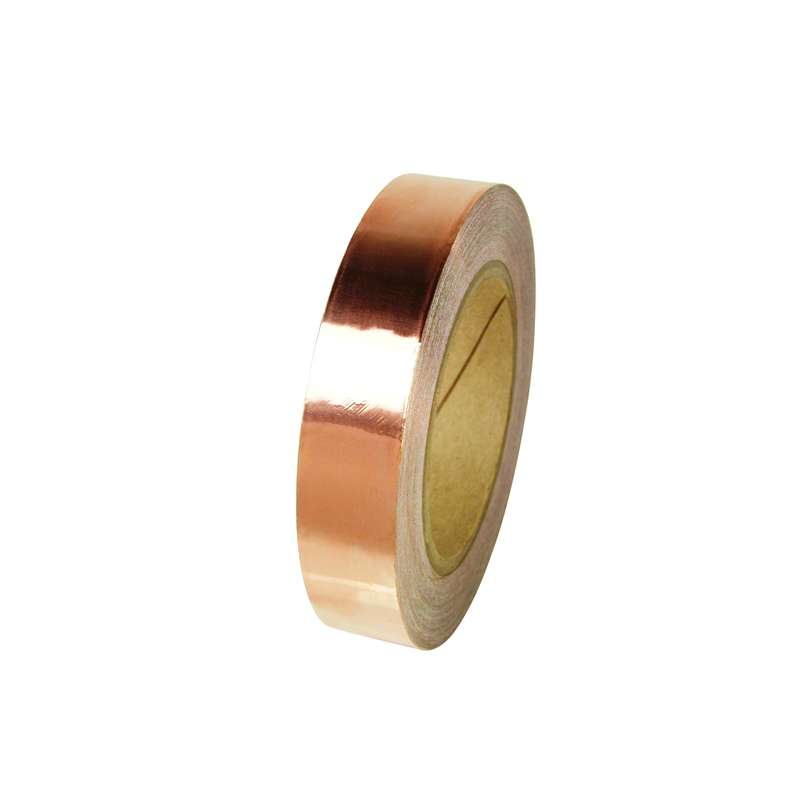

3M™ Copper Foil EMI Shielding Tape 1126, 1/4 in x 36 yd, Roll, 36 Rolls/Case
Hisco #:7010349619-31180
MFG #:7010349619
Item must be ordered in multiples of 36
| Quantity | Price | Save |
|---|---|---|
| 108 | 23.13 | Save |
3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
3M™ Tape 1126 has rolled, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. This flame retardant, EMI/RFI shielding tape is suitable for use in electronic industry applications such as cable wrapping and providing surface contact to non solderable materials. UL Listed and RoHS 2011/65/EU Compliant.
3M 7010349619 Features:- Highly conformable with a pressure-sensitive, acrylic adhesive
- Outstanding soldering ability
- Suitable for use in electronic industry applications
- Flame-retardant and has copper foil backing
- Rated for 600V applications
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
- Backing Material: Foil, Copper, Flat
- Package Quantity: 36 RLS
- Part Number: 1126 1/4"X36YD
- Specifications: RoHS 2011/65/EU, UL RecognizedN/A
- Width: 0.25 in
Product Description
3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
3M™ Tape 1126 has rolled, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. This flame retardant, EMI/RFI shielding tape is suitable for use in electronic industry applications such as cable wrapping and providing surface contact to non solderable materials. UL Listed and RoHS 2011/65/EU Compliant.
3M 7010349619 Features:- Highly conformable with a pressure-sensitive, acrylic adhesive
- Outstanding soldering ability
- Suitable for use in electronic industry applications
- Flame-retardant and has copper foil backing
- Rated for 600V applications
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
- Backing Material: Foil, Copper, Flat
- Package Quantity: 36 RLS
- Part Number: 1126 1/4"X36YD
- Specifications: RoHS 2011/65/EU, UL RecognizedN/A
- Width: 0.25 in
