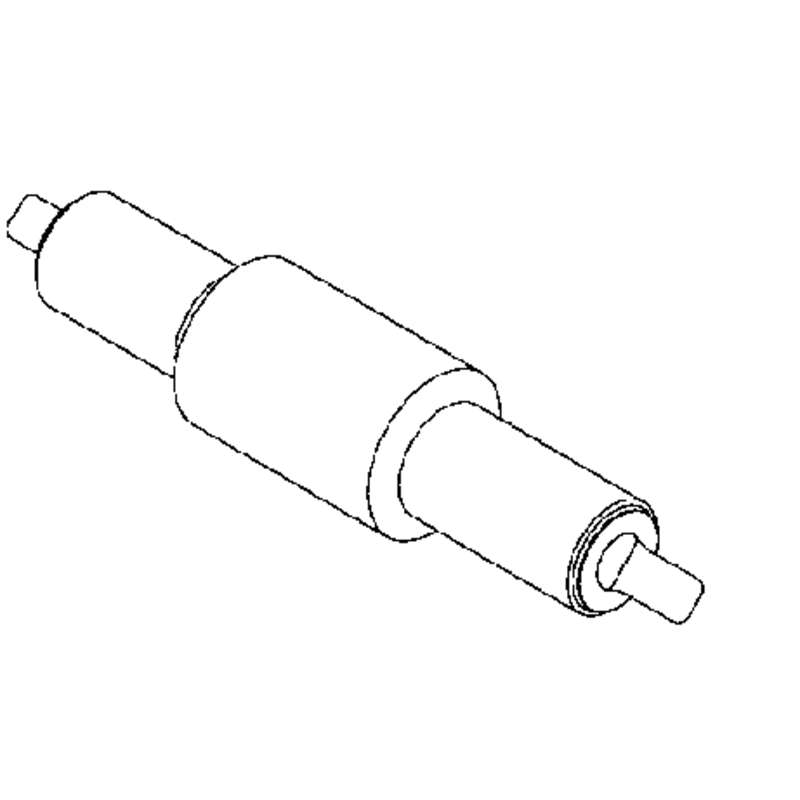

3M™ Aluminum Connector CI-22A, up to 35 kV, 2/0 AWG solid, Connector O.D. 0.910 in (23,1 mm), 10 /Case
Hisco #:7100163914-31180
MFG #:7100163914
Item must be ordered in multiples of 10
The 3M™ Aluminum Connectors CI-A Series are for splicing applications on aluminum or copper cable conductors. The CI Series aluminum connectors are specially designed for use with 3M™ QS, QS II and QS III Pre molded Power Cable Splice Bodies. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. These connectors meet the requirements of ANSI C119.4.
3M 7100163914 Features:- Transition connector used with 3M 5420 and 3M 5450 splice kits
- 10/case
- Connector Type: Compression
- For Use With: Aluminum or Copper Conductors
- Outside Diameter: 23.1 mm
- Package Quantity: 10 EACH
- Part Number: CI-22A
- Voltage: 15 kV
Product Description
The 3M™ Aluminum Connectors CI-A Series are for splicing applications on aluminum or copper cable conductors. The CI Series aluminum connectors are specially designed for use with 3M™ QS, QS II and QS III Pre molded Power Cable Splice Bodies. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. These connectors meet the requirements of ANSI C119.4.
3M 7100163914 Features:- Transition connector used with 3M 5420 and 3M 5450 splice kits
- 10/case
- Connector Type: Compression
- For Use With: Aluminum or Copper Conductors
- Outside Diameter: 23.1 mm
- Package Quantity: 10 EACH
- Part Number: CI-22A
- Voltage: 15 kV
Technical Information
Item must be ordered in multiples of 10
