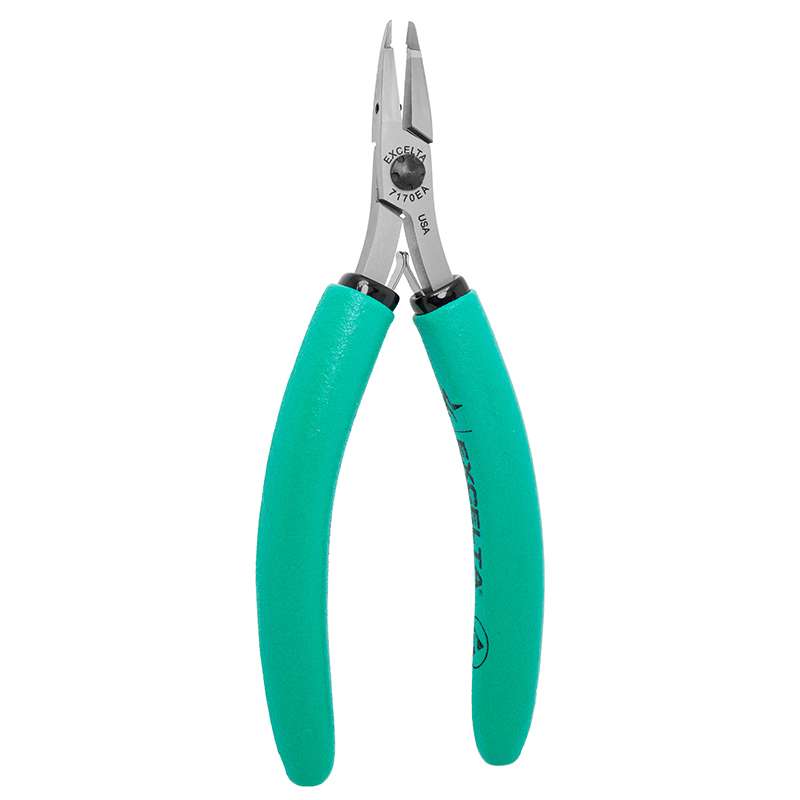

Cutters, Long Nose Fine .02" x .02" Tip, Relieved Head
Hisco #:7170EA-18168
MFG #:7170EA
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 144.21 | |
| 3 | 138.29 | Save |
The Excelta 7170EA is a Lazer Line® medium fine tip, laser flush cutter has a cutting capacity of .001" - .020" . It is made of carbon tool steel with induction hardened cutting blades to RHC 63-65. This overall length is 6" . The CNC machining allows the joint surfaces to be perfect to allow for long life. The Anti-Static grips are soft cushioned foam and have a surface resistivity of 10¹⁰ ohms/sq.The dual leaf springs provide smooth action.
Excelta 7170EA Features:- Made of carbon tool steel
- Offers anti-static grips
- Utilizes dual leaf spring
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Relieved Head
- Brand: TealShield™/Lazer Line®
- Material: Carbon
- Tip Size: .02" x .02" (.5mm x .5mm)
- Body Height: .25" (6.25mm)
- Tip Angle: 16°
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .28"
- Handle Type: Long Cushioned Grips
- Type of Cut: Lazer Flush
- Maximum Cut Capacity (Inches): .001 - .020"
- Maximum Cut Capacity (mm): .03 - .5 mm
- Maximum Cut Capacity (AWG): 50 - 24 AWG
- Overall Length: 6.25" (156.25mm)
Product Description
The Excelta 7170EA is a Lazer Line® medium fine tip, laser flush cutter has a cutting capacity of .001" - .020" . It is made of carbon tool steel with induction hardened cutting blades to RHC 63-65. This overall length is 6" . The CNC machining allows the joint surfaces to be perfect to allow for long life. The Anti-Static grips are soft cushioned foam and have a surface resistivity of 10¹⁰ ohms/sq.The dual leaf springs provide smooth action.
Excelta 7170EA Features:- Made of carbon tool steel
- Offers anti-static grips
- Utilizes dual leaf spring
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Relieved Head
- Brand: TealShield™/Lazer Line®
- Material: Carbon
- Tip Size: .02" x .02" (.5mm x .5mm)
- Body Height: .25" (6.25mm)
- Tip Angle: 16°
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .28"
- Handle Type: Long Cushioned Grips
- Type of Cut: Lazer Flush
- Maximum Cut Capacity (Inches): .001 - .020"
- Maximum Cut Capacity (mm): .03 - .5 mm
- Maximum Cut Capacity (AWG): 50 - 24 AWG
- Overall Length: 6.25" (156.25mm)
