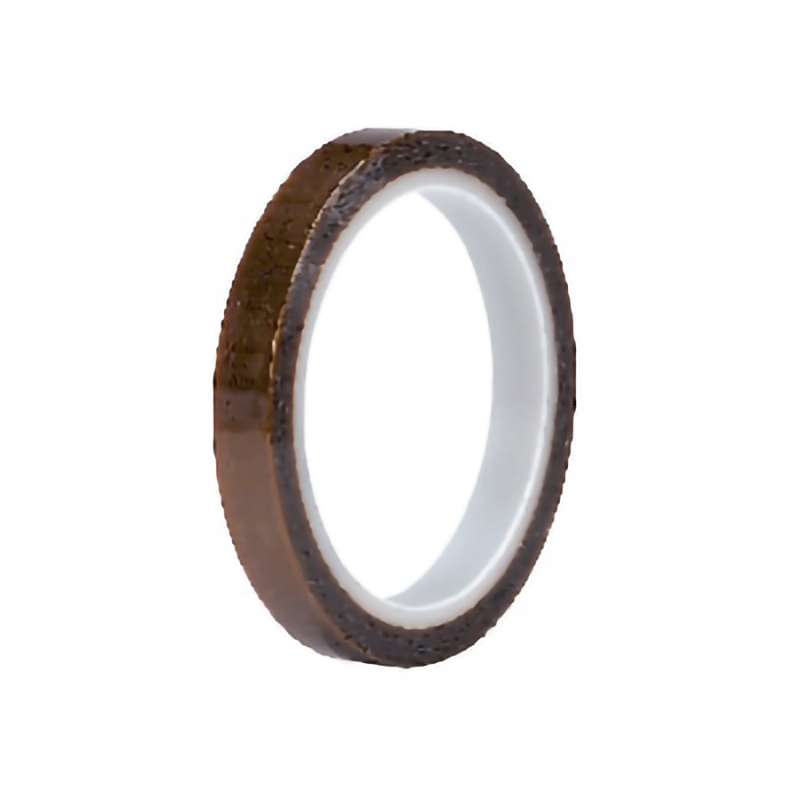

Kapton Tape, 1/4"x36 Yds, 3" Core, 3.5 mil, Silicone Adhesive
Hisco #:758ST0250
MFG #:758ST0250
Our Price: $5.27 EA
Availability: 239 In Stock
Manufacturer Estimated Lead Time When Not In Stock: 0 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 5.27 | |
| 3 | 4.54 | Save |
- These Kapton tapes feature a polyimide backing and silicone adhesive, offering exceptional thermal resistance and excellent electrical insulating properties.
- Temperature resistant to 500°F
- This tape is used in applications where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
- Polyimide high temperature tapes are employed for various applications providing protection to gold fingers during wave soldering. Serving as ground barriers and phase insulation in high-performance coils. Acting as outer wraps for small bobbin wound coils and use in form wound coils for traction motors.
- The manufacturing process involves coating the polyimide film with a desired adhesive system. Resulting in film thicknesses ranging from 0.5 mil to 10 mils. Adhesive thicknesses ranging from 0.5 mil to 2 mils.
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
- These Kapton tapes feature a polyimide backing and silicone adhesive, offering exceptional thermal resistance and excellent electrical insulating properties.
- Temperature resistant to 500°F
- This tape is used in applications where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
- Polyimide high temperature tapes are employed for various applications providing protection to gold fingers during wave soldering. Serving as ground barriers and phase insulation in high-performance coils. Acting as outer wraps for small bobbin wound coils and use in form wound coils for traction motors.
- The manufacturing process involves coating the polyimide film with a desired adhesive system. Resulting in film thicknesses ranging from 0.5 mil to 10 mils. Adhesive thicknesses ranging from 0.5 mil to 2 mils.
Technical Information
Brand: Techni-Pro
Availability: In Stock
Weight: 0.08
Country Of Origin: TW
Harmonized Code: 3919.90.5040
