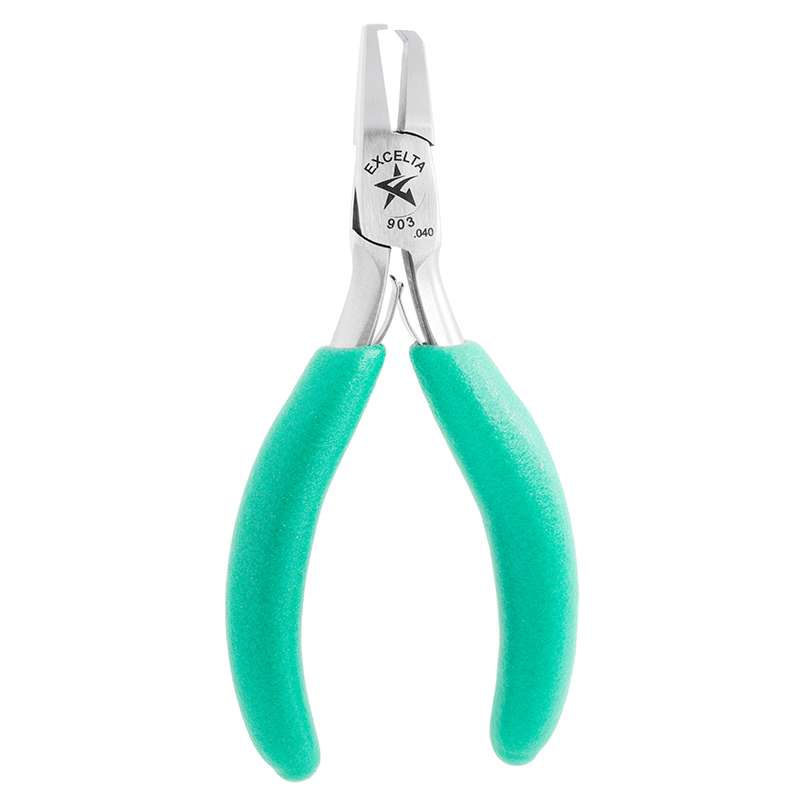

Cutters, Standoff Shear Large Frame, Tip width .18", Carbon Steel, Heavy Duty, .020" Standoff
Hisco #:903-20-18168
MFG #:903-020
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 255.79 | |
| 3 | 247.11 | Save |

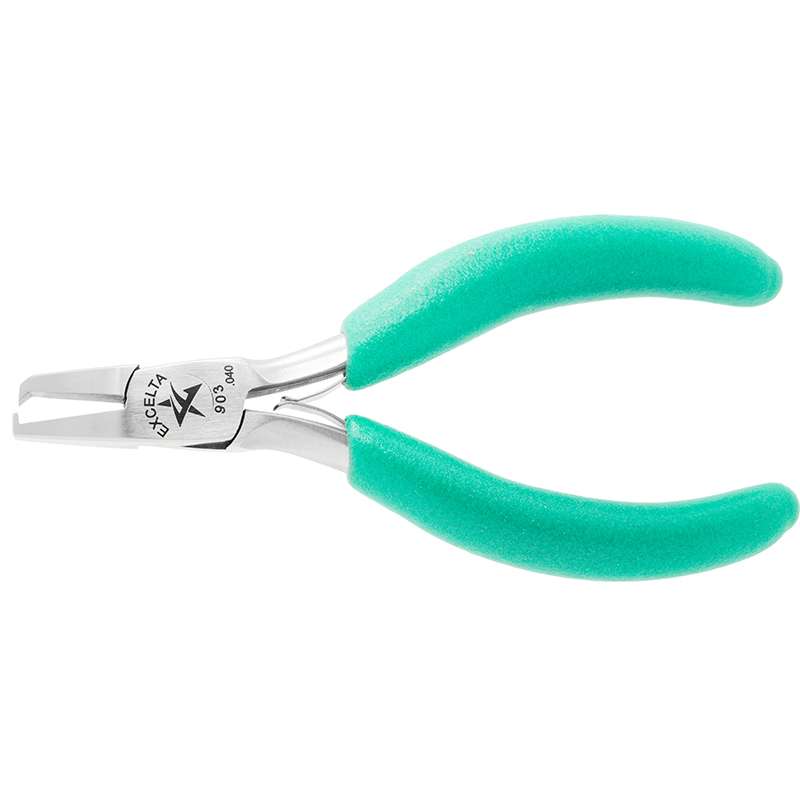

The Excelta 903-020 is a 5.5" heavy duty anti-shock shear cutter designed for cutting of connector pins and large component leads. Tip width is .18". Recommended cutting capacity is 18AWG (.040" diameter). Standard cut length is .040". It features soft cushioned ergonomic Anti-Static grips (10¹⁰ ohms/sq surface resistivity) with dual leaf springs for smooth action.
Excelta 903-020 Features:- Cuts 18AWG wire
- Offers ergonomic grip
- Utilizes dual leaf springs
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .180" (4.5mm)
- Body Height: 0.26" (6.5mm)
- Width at Joint: 0.43" (10.75mm)
- Cutting Edge Length: .18"
- Handle Type: Standard Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .040"
- Maximum Cut Capacity (mm): 1 mm
- Maximum Cut Capacity (AWG): 18AWG
- Overall Length: 5.5" (137.5mm)
Product Description
The Excelta 903-020 is a 5.5" heavy duty anti-shock shear cutter designed for cutting of connector pins and large component leads. Tip width is .18". Recommended cutting capacity is 18AWG (.040" diameter). Standard cut length is .040". It features soft cushioned ergonomic Anti-Static grips (10¹⁰ ohms/sq surface resistivity) with dual leaf springs for smooth action.
Excelta 903-020 Features:- Cuts 18AWG wire
- Offers ergonomic grip
- Utilizes dual leaf springs
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .180" (4.5mm)
- Body Height: 0.26" (6.5mm)
- Width at Joint: 0.43" (10.75mm)
- Cutting Edge Length: .18"
- Handle Type: Standard Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .040"
- Maximum Cut Capacity (mm): 1 mm
- Maximum Cut Capacity (AWG): 18AWG
- Overall Length: 5.5" (137.5mm)
