Cutters, Standoff Shear Large Frame, Tip width .18", Carbon Steel, Heavy Duty, Custom Standoff
Hisco #:903-CUSTOM-18168
MFG #:903-CUSTOM
Item must be ordered in multiples of 1

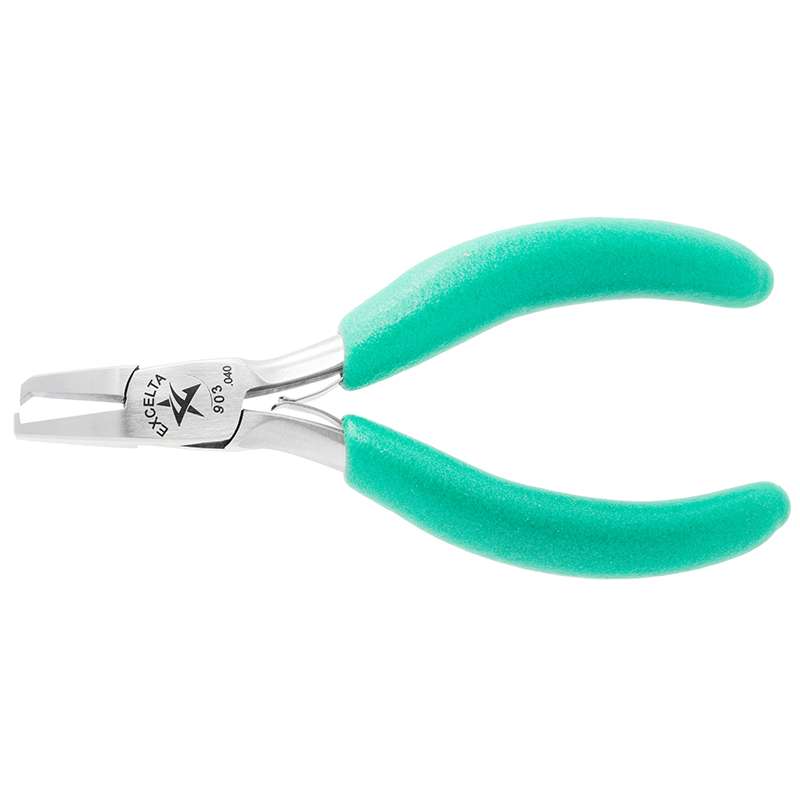

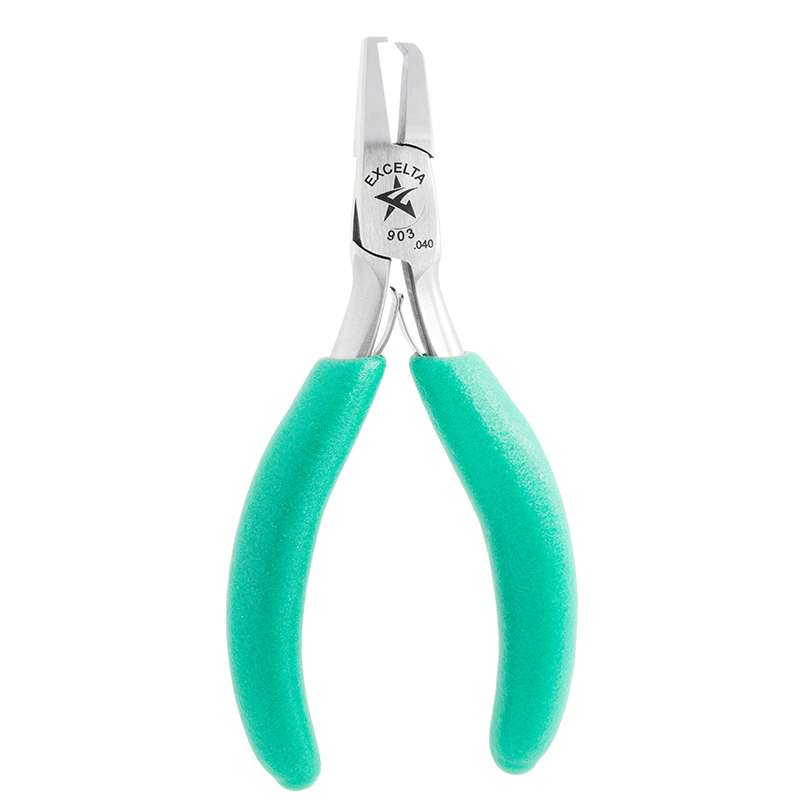

The Excelta 903-CUSTOM is a 5.5" heavy duty anti-shock shear cutter designed for cutting of connector pins and large component leads. Tip width is .18". Recommended cutting capacity is 18AWG (.040" diameter). Customer specifies stand-off. It features soft cushioned ergonomic Anti-Static grips (10¹⁰ ohms/sq surface resistivity) with dual leaf springs for smooth action.
Excelta 903-CUSTOM Features:- Cuts up to 18AWG wire
- Offers ergonomic grip
- Utilizes dual leaf springs
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .180" (4.5mm)
- Body Height: 0.26" (6.5mm)
- Width at Joint: 0.43" (10.75mm)
- Cutting Edge Length: .18"
- Handle Type: Standard Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .040"
- Maximum Cut Capacity (mm): 1 mm
- Maximum Cut Capacity (AWG): 18AWG
- Overall Length: 5.5" (137.5mm)
Product Description
The Excelta 903-CUSTOM is a 5.5" heavy duty anti-shock shear cutter designed for cutting of connector pins and large component leads. Tip width is .18". Recommended cutting capacity is 18AWG (.040" diameter). Customer specifies stand-off. It features soft cushioned ergonomic Anti-Static grips (10¹⁰ ohms/sq surface resistivity) with dual leaf springs for smooth action.
Excelta 903-CUSTOM Features:- Cuts up to 18AWG wire
- Offers ergonomic grip
- Utilizes dual leaf springs
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .180" (4.5mm)
- Body Height: 0.26" (6.5mm)
- Width at Joint: 0.43" (10.75mm)
- Cutting Edge Length: .18"
- Handle Type: Standard Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .040"
- Maximum Cut Capacity (mm): 1 mm
- Maximum Cut Capacity (AWG): 18AWG
- Overall Length: 5.5" (137.5mm)
