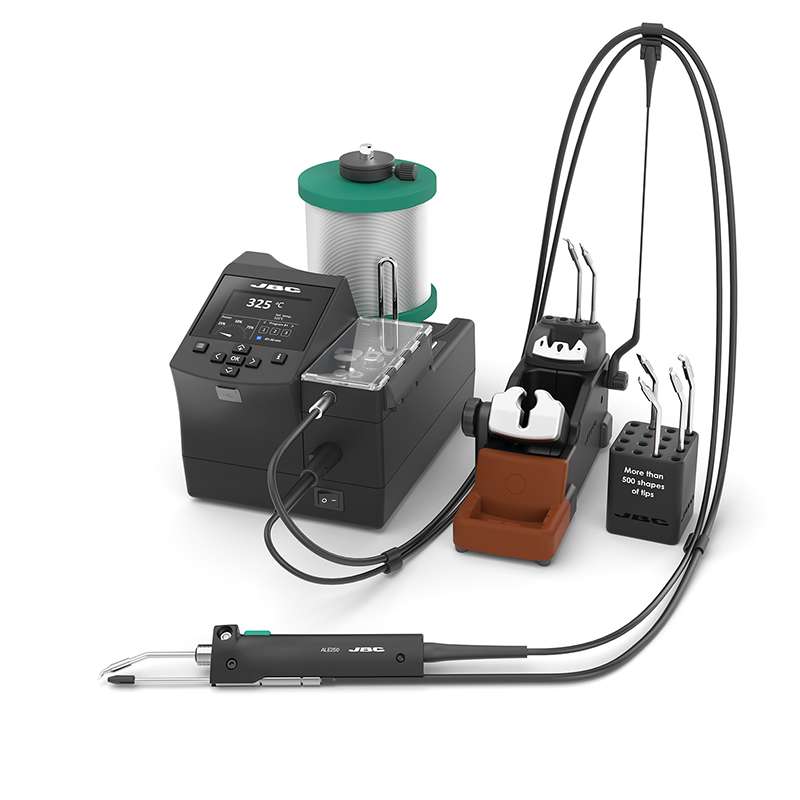

Auto-Feed Soldering Station, 120V
Hisco #:AL-1A-30348
MFG #:AL-1A
$
Manufacturer Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The JBC AL-1A is a Series AL-1A soldering station with a maximum operating temperature of +104.
The JBC AL-1A Features:- Al-1a120v 50/60hz. Input fuse: 2a. Output: 23.5v
- Al-2a230v 50/60hz. Input fuse: 1a. Output: 23.5v
- Al-9a100v 50/60hz. Input fuse: 2a. Output: 23.5v
- Total weight: 5.8 kg (12.9 lb)
- Dimensions: 195 x 200 x 240 mm
- Output peak power: 130w
- Temperature range: 90 - 450°C (190 - 840°F) (±5%)
- Complies with CE standards on electrical safety, electro magnetic compatibility and ESD protected housing skin effect
- RoHS compliant
- Equip-potential connector and the tool tip are connected to station mains ground supply for ESD protection
- Diameter of solder wire: 0.4 - 1.8 mm / 0.02 - 0.07 in
- Complies with CE standards
- ESD protected housing skin effect
- Series: AL-1A
- Product Type: Auto Feed
- Applications: Soldering
- Power Rating: 130W
- Input Voltage Rating: 230 120 100V ac
- Output Voltage Rating: 23.5V
- Maximum Operating Temperature: +104°F
- Minimum Operating Temperature: +50°F
- Tip to Ground Resistance: <2Ω
- Dimensions: 240 x 200 x 195mm
- Length: 240mm
- Width: 200mm
- Height: 195mm
- ESD Safe (Yes/No): Yes
- Standards Met: CE Certified
Product Description
Technical Information
Back to top
Product Description
The JBC AL-1A is a Series AL-1A soldering station with a maximum operating temperature of +104.
The JBC AL-1A Features:- Al-1a120v 50/60hz. Input fuse: 2a. Output: 23.5v
- Al-2a230v 50/60hz. Input fuse: 1a. Output: 23.5v
- Al-9a100v 50/60hz. Input fuse: 2a. Output: 23.5v
- Total weight: 5.8 kg (12.9 lb)
- Dimensions: 195 x 200 x 240 mm
- Output peak power: 130w
- Temperature range: 90 - 450°C (190 - 840°F) (±5%)
- Complies with CE standards on electrical safety, electro magnetic compatibility and ESD protected housing skin effect
- RoHS compliant
- Equip-potential connector and the tool tip are connected to station mains ground supply for ESD protection
- Diameter of solder wire: 0.4 - 1.8 mm / 0.02 - 0.07 in
- Complies with CE standards
- ESD protected housing skin effect
- Series: AL-1A
- Product Type: Auto Feed
- Applications: Soldering
- Power Rating: 130W
- Input Voltage Rating: 230 120 100V ac
- Output Voltage Rating: 23.5V
- Maximum Operating Temperature: +104°F
- Minimum Operating Temperature: +50°F
- Tip to Ground Resistance: <2Ω
- Dimensions: 240 x 200 x 195mm
- Length: 240mm
- Width: 200mm
- Height: 195mm
- ESD Safe (Yes/No): Yes
- Standards Met: CE Certified
Technical Information
Brand: JBC
Weight: 12.81
Country Of Origin: ES
$
