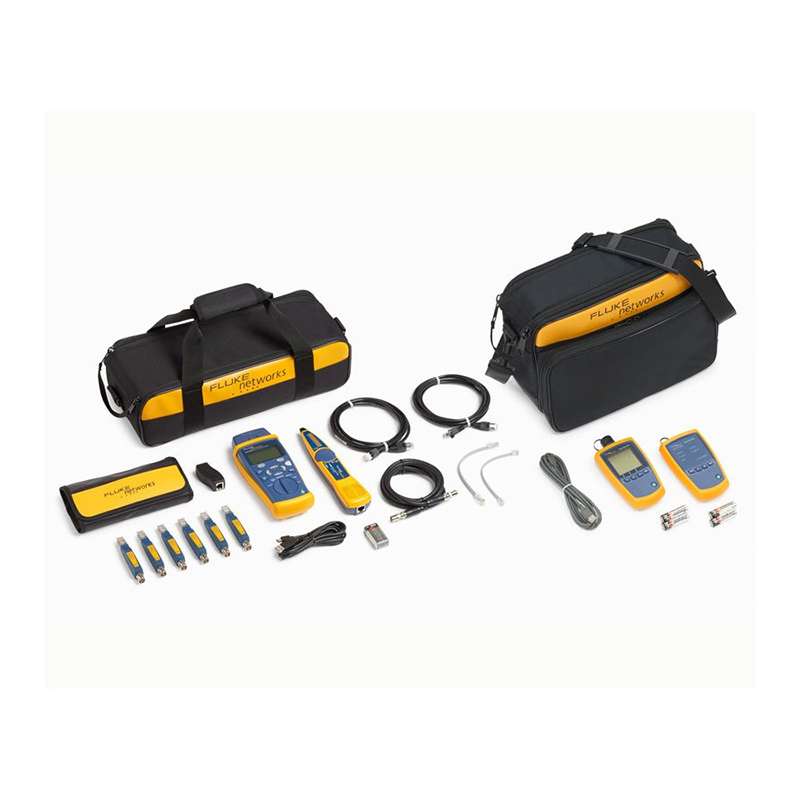

Copper, Fiber, Technicians Kit (CIQ-Kit + FTK1000)

The Fluke Networks CIQ-FTKSFP is a Copper & Fiber Cable Tester Kit that offers all the advantages of the CableIQ™ Kit but also provides a way to test and verify your fiber connections through the SimpliFiber® Pro Power Meter and Light Source.

• Troubleshoot copper cabling and qualifies for 10/100/Gig Ethernet
• Measures power and loss in fiber networking
• Supports multimode 850 and 1300 nm wavelength
• Verifies network drop quickly
• Maps wiring configuration graphically and shows distances to fault
• Made in the USA

• Brand: Fluke Networks
• Dimensions: 7" x 3.5" x 1.75"
• Packaged Weight: 1.2 lbs
• Cable types supported UTP, STP, FTP, SSTP, RG6, RG59, audio and security
• Qualification autotests: 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax
• Supported tests: Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection
• Wiremap: Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs
• Find fault: Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application
• Results storage: Up to 250 qualification test results
• Power: Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries
• Battery life: 20 hours of typical use, without backlight
• Other battery types supported: 4AA photo lithium, NIHM, NICAD
