Industrial Ethernet DSX Kit 1
Hisco #:DSX2-5-IE-K1-65681
MFG #:DSX2-5-IE-K1
Item must be ordered in multiples of 1
The Fluke Networks DSX2-5-IE-K1 is an Industrial Ethernet CableAnalyzer™ network testing kit. It shows pass or fail within 10 seconds with details of the measurements. Supporting RJ45, M12D, and M12X connectors it offers touchscreen management and advanced troubleshooting with integrated Wi-Fi and an eight hour battery life. This kit includes the Versiv mainframe and remote units, a reference module, adapters, commonly used accessories and a statement of calibration.
Fluke Networks DSX2-5-IE-K1 Features:- Supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
- Graphically displays the source of failures
- Manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
- Analyze test results and create professional test reports using LinkWare management software
- Made in the USA
- Brand: Fluke Networks
- Dimensions: 16.5" x 15.74" x 11.5"
- Cable Types: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8
- Compliant Standards: CSA 22.2 No. 61010, EN 61326-1, IEC 61010-1 3rd Edition
- Features: 1000MHz maximum frequency, 1-year calibration period, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
- Media: Copper
- Product Type: Network tester kit
- Software: LinkWare PC
- Test Standards: TIA-568-C.2
- Tests, Tools and Measurements: Attenuation-to-crosstalk ratio far end, Common mode return loss (CMRL), DC loop resistance, Delay skew between pair, Equal level transverse conversion transfer loss (ELTCTL), Far end crosstalk (FEXT), Insertion loss (attenuation), Length, Near-end crosstalk, Pair resistance unbalance, Pair-to-pair resistance unbalance, Power sum, Propagation delay, Return loss, Transverse conversion loss (TCL), Wiremap

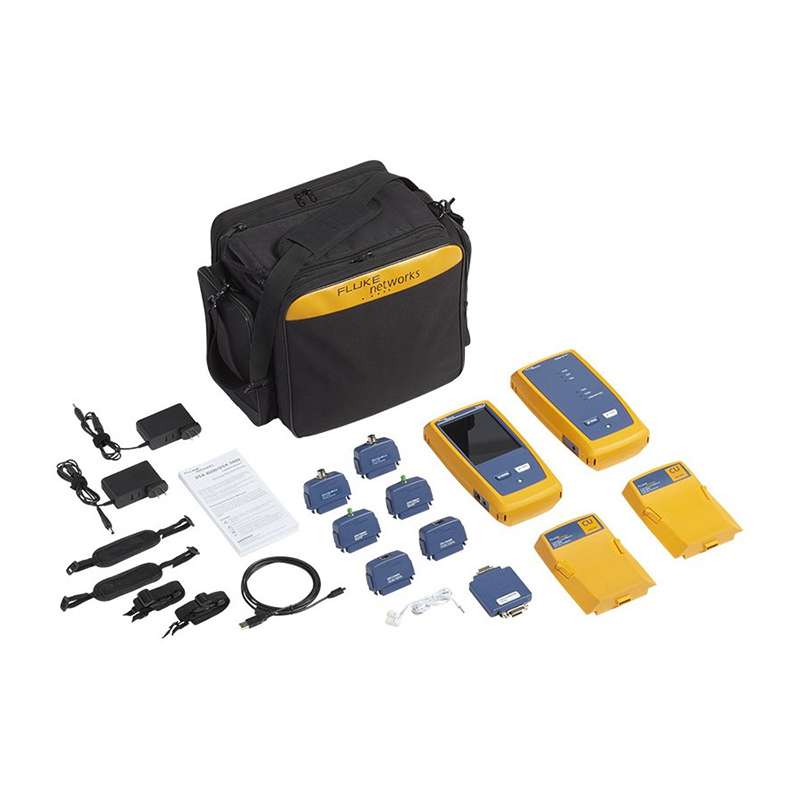

- Kit Includes: 2 x AC power adapters, 2 x hand straps, 2 x headsets, 2 x shoulder straps, Carrying case, CAT 6A/Class EA channel adapters set, M12D adapters set, M12X adapters set, Reference module, 1 x USB cable
- Color Support: Color
- Display Diagonal Size: 5.7 inch
- Display Screen: LCD
- Display Features: Touchscreen
- Battery Chemistry: Lithium ion
- Battery Voltage: 7.2 volt
- Battery Run Time (Up To): 8 hour(s)
Product Description
The Fluke Networks DSX2-5-IE-K1 is an Industrial Ethernet CableAnalyzer™ network testing kit. It shows pass or fail within 10 seconds with details of the measurements. Supporting RJ45, M12D, and M12X connectors it offers touchscreen management and advanced troubleshooting with integrated Wi-Fi and an eight hour battery life. This kit includes the Versiv mainframe and remote units, a reference module, adapters, commonly used accessories and a statement of calibration.
Fluke Networks DSX2-5-IE-K1 Features:- Supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
- Graphically displays the source of failures
- Manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
- Analyze test results and create professional test reports using LinkWare management software
- Made in the USA
- Brand: Fluke Networks
- Dimensions: 16.5" x 15.74" x 11.5"
- Cable Types: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8
- Compliant Standards: CSA 22.2 No. 61010, EN 61326-1, IEC 61010-1 3rd Edition
- Features: 1000MHz maximum frequency, 1-year calibration period, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
- Media: Copper
- Product Type: Network tester kit
- Software: LinkWare PC
- Test Standards: TIA-568-C.2
- Tests, Tools and Measurements: Attenuation-to-crosstalk ratio far end, Common mode return loss (CMRL), DC loop resistance, Delay skew between pair, Equal level transverse conversion transfer loss (ELTCTL), Far end crosstalk (FEXT), Insertion loss (attenuation), Length, Near-end crosstalk, Pair resistance unbalance, Pair-to-pair resistance unbalance, Power sum, Propagation delay, Return loss, Transverse conversion loss (TCL), Wiremap
- Kit Includes: 2 x AC power adapters, 2 x hand straps, 2 x headsets, 2 x shoulder straps, Carrying case, CAT 6A/Class EA channel adapters set, M12D adapters set, M12X adapters set, Reference module, 1 x USB cable
- Color Support: Color
- Display Diagonal Size: 5.7 inch
- Display Screen: LCD
- Display Features: Touchscreen
- Battery Chemistry: Lithium ion
- Battery Voltage: 7.2 volt
- Battery Run Time (Up To): 8 hour(s)
