Desoldering Tool Module Kit for FM-203/202 or FP-102
Hisco #:FM2024-21-3021
MFG #:FM2024-21
$
Manufacturer Lead Time When Not In Stock: 28 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Hakko FM-2024 Desoldering Module extends the versatility of the award winning Hakko FM-202 or the new FM-203 Soldering Station giving you a complete soldering and desoldering solution, in one modular station.
The Hakko FM2024-21 Features:- Desoldering nozzle/tip heater cartridge assembly offers a one-step, quick-change
- The disposable filter pipe is safe and easy-to-remove
- Desoldering Control Module is required to operate the desoldering gun/pencil
- Reconfigurable handpiece that allows the user the option to use the tool as either a gun or pencil style handpiece by simply removing or adding the handle
- Product Type: Desoldering Tool Module Kit
- Part Number: FM2024-21
- Power Consumption: 12W
- Output: 24V
- Vacuum Generator: Ejector Type
- Vacuum Pressure: 93 kPa (700 mmHg, 28 inHg)
- Suction Flow: 20 l/min
- Applied Air Pressure: 490 kPa (71 PSI) when trigger is pressed
- Compressed Air Consumption: 1.62 cfm (46 l/min)
- Temperature Range: 350°C - 450°C (660°F - 840°F)
- Desoldering Tool Power Consumption: 70W / 24V
- For Use With: FM-206/205/204/203/202 or FP-102

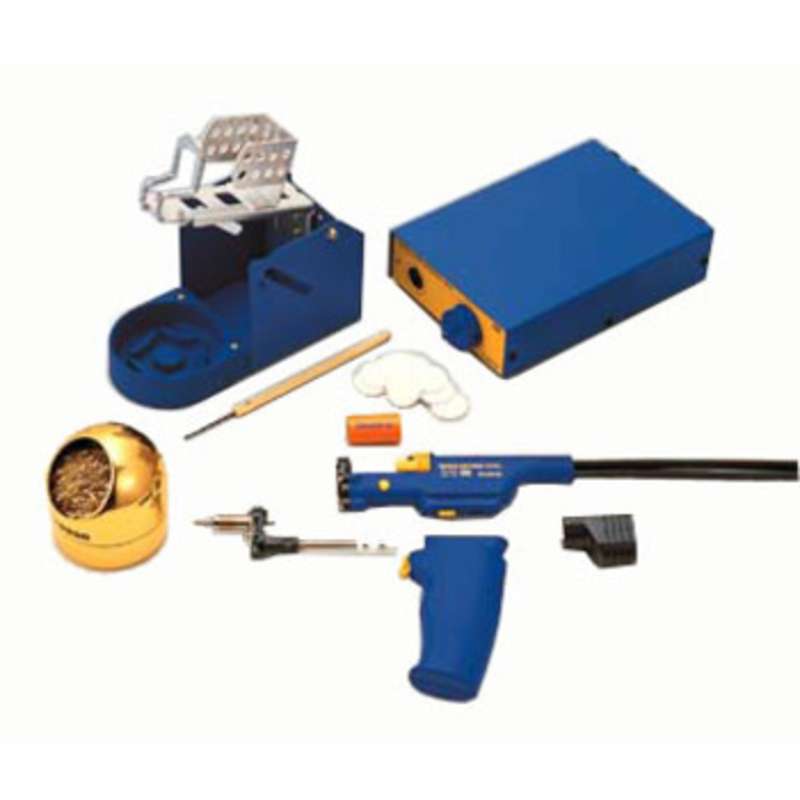

- Includes: FM2024-02 Tool w/Handle, C1492 Desolder Control Box, FH200-05 Handpiece Holder w/599B, B2873 Cleaning Drill, B2876 Nozzle Remover, B3253 Sleep Mode Cord, A1511 Filter Pipe, Rubber Feet (2x), Nozzles NOT included
Product Description
Technical Information
Parts & Accessories
Related Products
Back to top
Product Description
The Hakko FM-2024 Desoldering Module extends the versatility of the award winning Hakko FM-202 or the new FM-203 Soldering Station giving you a complete soldering and desoldering solution, in one modular station.
The Hakko FM2024-21 Features:- Desoldering nozzle/tip heater cartridge assembly offers a one-step, quick-change
- The disposable filter pipe is safe and easy-to-remove
- Desoldering Control Module is required to operate the desoldering gun/pencil
- Reconfigurable handpiece that allows the user the option to use the tool as either a gun or pencil style handpiece by simply removing or adding the handle
- Product Type: Desoldering Tool Module Kit
- Part Number: FM2024-21
- Power Consumption: 12W
- Output: 24V
- Vacuum Generator: Ejector Type
- Vacuum Pressure: 93 kPa (700 mmHg, 28 inHg)
- Suction Flow: 20 l/min
- Applied Air Pressure: 490 kPa (71 PSI) when trigger is pressed
- Compressed Air Consumption: 1.62 cfm (46 l/min)
- Temperature Range: 350°C - 450°C (660°F - 840°F)
- Desoldering Tool Power Consumption: 70W / 24V
- For Use With: FM-206/205/204/203/202 or FP-102
- Includes: FM2024-02 Tool w/Handle, C1492 Desolder Control Box, FH200-05 Handpiece Holder w/599B, B2873 Cleaning Drill, B2876 Nozzle Remover, B3253 Sleep Mode Cord, A1511 Filter Pipe, Rubber Feet (2x), Nozzles NOT included
Technical Information
Brand: Hakko
Availability: In Stock
Weight: 5.8
Country Of Origin: JP
UPC Code: 641328051611
$
