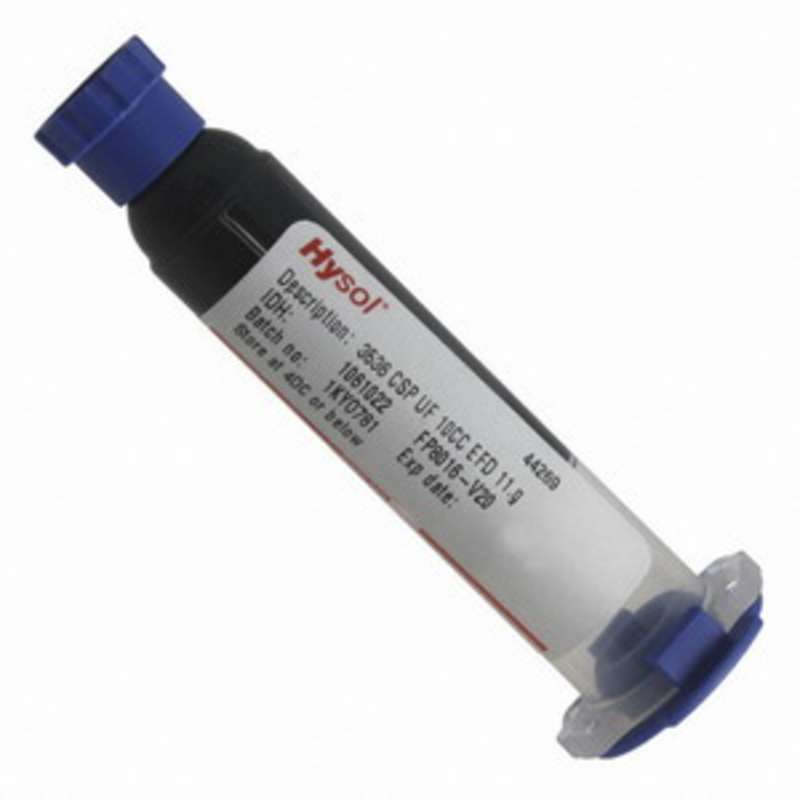

LOCTITE® 3536™ Reworkable, Capillary Flow, Underfill Epoxy CSP/BGA Underfill, 30 mL
Hisco #:FP8016-V19-34899
MFG #:3536
$
Manufacturer Lead Time When Not In Stock: 120 days
Minimum Order QTY: 10
Item must be ordered in multiples of 10
Item must be ordered in multiples of 10
The Loctite 3536 is a black underfill epoxy adhesive in an 30 ml syringe. Use it to protect solder joints from mechanical strains such as shock, drop and vibration.
Loctite 3536 Features:- Series: 3536
- Product Type: Epoxy Adhesive
- Color: Black
- Primary Color: Black
- Cure Time: 2min
- Viscosity Measurement: 1800mPa/s
- Shelf Life: 6month
- Chemical Composition: Reaction product: bisphenol-F-(epichlorhydrin), Epoxy Resin (number average molecular weight <= 700) 10-30%, Silicon Dioxide 10-30, 7-Oxabicyclo [4.1.0] hept-3-ylmethyl 7-oxabicyclo [4.1.0] heptane-3-carboxylate 10-30%, Butadiene Acrylic Copolymer 5-10%
- Specific Gravity: 1.25
- VOCs Content: 7.5g/L
- Cure Type: Heat Cure
- Gel Time: 14days
- Container Capacity: 30ml
- Container Type: Syringe
- Applications: Capillary Flow Underfill
- Package Quantity: 15CA
- Series: 3536
- Product Type: Epoxy Adhesive
- Color: Black
- Primary Color: Black
- Cure Time: 2min
- Viscosity Measurement: 1800mPa/s
- Shelf Life: 6month
- Chemical Composition: Reaction product: bisphenol-F-(epichlorhydrin), Epoxy Resin (number average molecular weight <= 700) 10-30%, Silicon Dioxide 10-30, 7-Oxabicyclo [4.1.0] hept-3-ylmethyl 7-oxabicyclo [4.1.0] heptane-3-carboxylate 10-30%, Butadiene Acrylic Copolymer 5-10%
- Specific Gravity: 1.25
- VOCs Content: 7.5g/L
- Cure Type: Heat Cure
- Gel Time: 14days
- Container Capacity: 30ml
- Container Type: Syringe
- Applications: Capillary Flow Underfill
- Package Quantity: 15CA
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Loctite 3536 is a black underfill epoxy adhesive in an 30 ml syringe. Use it to protect solder joints from mechanical strains such as shock, drop and vibration.
Loctite 3536 Features:- Series: 3536
- Product Type: Epoxy Adhesive
- Color: Black
- Primary Color: Black
- Cure Time: 2min
- Viscosity Measurement: 1800mPa/s
- Shelf Life: 6month
- Chemical Composition: Reaction product: bisphenol-F-(epichlorhydrin), Epoxy Resin (number average molecular weight <= 700) 10-30%, Silicon Dioxide 10-30, 7-Oxabicyclo [4.1.0] hept-3-ylmethyl 7-oxabicyclo [4.1.0] heptane-3-carboxylate 10-30%, Butadiene Acrylic Copolymer 5-10%
- Specific Gravity: 1.25
- VOCs Content: 7.5g/L
- Cure Type: Heat Cure
- Gel Time: 14days
- Container Capacity: 30ml
- Container Type: Syringe
- Applications: Capillary Flow Underfill
- Package Quantity: 15CA
- Series: 3536
- Product Type: Epoxy Adhesive
- Color: Black
- Primary Color: Black
- Cure Time: 2min
- Viscosity Measurement: 1800mPa/s
- Shelf Life: 6month
- Chemical Composition: Reaction product: bisphenol-F-(epichlorhydrin), Epoxy Resin (number average molecular weight <= 700) 10-30%, Silicon Dioxide 10-30, 7-Oxabicyclo [4.1.0] hept-3-ylmethyl 7-oxabicyclo [4.1.0] heptane-3-carboxylate 10-30%, Butadiene Acrylic Copolymer 5-10%
- Specific Gravity: 1.25
- VOCs Content: 7.5g/L
- Cure Type: Heat Cure
- Gel Time: 14days
- Container Capacity: 30ml
- Container Type: Syringe
- Applications: Capillary Flow Underfill
- Package Quantity: 15CA
Technical Information
Brand: Loctite
Weight: 0.74
