Fluke Networks
Multimode Fiber Power Meter, Source with Inspection
Hisco #:FTK1375-65681
MFG #:FTK1375
Our Price: $7,127.25 PC
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

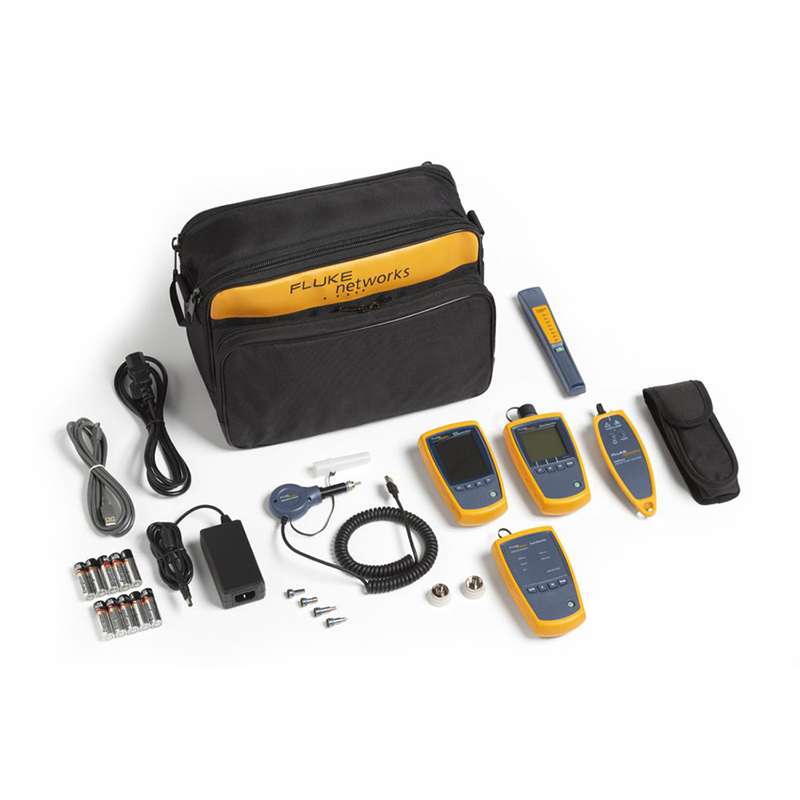

The Fluke Networks FTK1375 is a SimpliFiber® 850/1300 multimode verification kit with FI-500 and Visifault VFL. The SimplitFiber® is a simple to use fiber loss tester with time saving features.
Fluke Networks FTK1375 Features:- Troubleshoot optical fiber cabling systems
- Measure loss and power levels
- Inspect and clean connector end faces
- Completes testing in half the time and saves measurements from both wavelengths into one record
- Emits an audible tone and displays an icon when a live fiber is detected, eliminating the need to set up a measurement
- Brand: Fluke Networks
- Kit includes: Simplifiber® Pro Optical power meter; 850/1300 multimode source; VisiFault VFL; FI-500 FiberInspector; FindFiber Remote ID sources; Magnetic Strap attachments; Carrying case; SC, ST, and LC power meter adapters
- Optical output connector: Fixed SC
- Emitter type: 850/1300: LED; 1310/1550: FP Laser; FindFiber: Laser
- Emitter wavelengths: 850, 1300, 1310, 1490, 1550, 1625
- Power output (minimum): MM: ≥ -20 dBm; SM: ≥ 8 dBm minimum;; -7 dBm nominal
- Power output stability(8 hours): MM: +/- 0.1 dB over 8 hours; SM: +/- 0.25 dB over 8 hours
- MM battery life (2 x AA IEC LR6): 40 hours typical
- SM battery life (2 x AA IEC LR6): 30 hours typical
- FindFiber battery life (2 x AA IEC LR6): 80 hours typical
- Power measurement accuracy: +/-0.25 dB
- Optical connector: Removable adapter; SC adapter standard; Optional adapters include LC, ST
- Detector type: InGaAs
- Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625
- Power measurement range: 850: 10 to -52 dBm; 1300, 1310, 1490, 1550, 1625: 10 to -60 dBm
- Power measurement linearity: 850 nm: +/- 0.2 dB; +/- 0.2 dB for power from 0 dBm to -45 dBm, +/- 0.25 dB for power < -45 dBm; 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm: +/- 0.1 dB; +/- 0.1 dB for power from 0 dBm to -55 dBm, +/- 0.2 dB for power > 0 dBm and < -55 dBm
- Resolution: 0.01 dB
- Battery life: >50 hours typical
- Memory: 1000 loss or power measurements
- Serial communication physical interface: USB
Product Description
Technical Information
Back to top
Product Description
The Fluke Networks FTK1375 is a SimpliFiber® 850/1300 multimode verification kit with FI-500 and Visifault VFL. The SimplitFiber® is a simple to use fiber loss tester with time saving features.
Fluke Networks FTK1375 Features:- Troubleshoot optical fiber cabling systems
- Measure loss and power levels
- Inspect and clean connector end faces
- Completes testing in half the time and saves measurements from both wavelengths into one record
- Emits an audible tone and displays an icon when a live fiber is detected, eliminating the need to set up a measurement
- Brand: Fluke Networks
- Kit includes: Simplifiber® Pro Optical power meter; 850/1300 multimode source; VisiFault VFL; FI-500 FiberInspector; FindFiber Remote ID sources; Magnetic Strap attachments; Carrying case; SC, ST, and LC power meter adapters
- Optical output connector: Fixed SC
- Emitter type: 850/1300: LED; 1310/1550: FP Laser; FindFiber: Laser
- Emitter wavelengths: 850, 1300, 1310, 1490, 1550, 1625
- Power output (minimum): MM: ≥ -20 dBm; SM: ≥ 8 dBm minimum;; -7 dBm nominal
- Power output stability(8 hours): MM: +/- 0.1 dB over 8 hours; SM: +/- 0.25 dB over 8 hours
- MM battery life (2 x AA IEC LR6): 40 hours typical
- SM battery life (2 x AA IEC LR6): 30 hours typical
- FindFiber battery life (2 x AA IEC LR6): 80 hours typical
- Power measurement accuracy: +/-0.25 dB
- Optical connector: Removable adapter; SC adapter standard; Optional adapters include LC, ST
- Detector type: InGaAs
- Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625
- Power measurement range: 850: 10 to -52 dBm; 1300, 1310, 1490, 1550, 1625: 10 to -60 dBm
- Power measurement linearity: 850 nm: +/- 0.2 dB; +/- 0.2 dB for power from 0 dBm to -45 dBm, +/- 0.25 dB for power < -45 dBm; 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm: +/- 0.1 dB; +/- 0.1 dB for power from 0 dBm to -55 dBm, +/- 0.2 dB for power > 0 dBm and < -55 dBm
- Resolution: 0.01 dB
- Battery life: >50 hours typical
- Memory: 1000 loss or power measurements
- Serial communication physical interface: USB
Technical Information
Brand: Fluke Networks
Weight: 6.569
UPC Code: 754082137580
