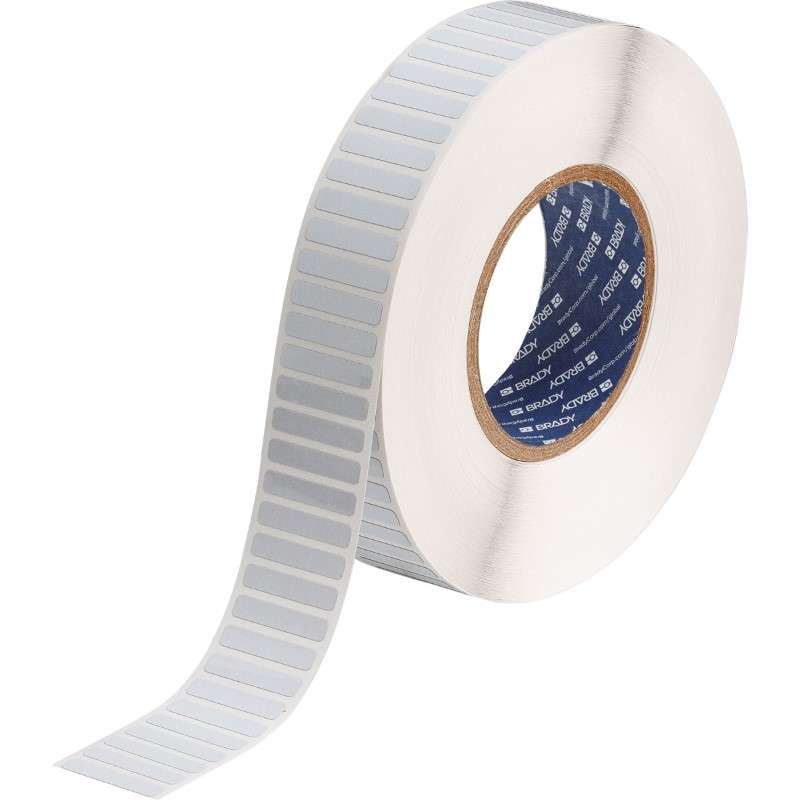

Laser Markable Polyimide Labels, Glossy White, 0.25 x 1.25", 10,000 per Roll

LZR-43-732-10-6691 MFG #: LZR-43-732-10
$1,130.00 / RL
Available to Order - 0 on Hand
  • Brand Name: Brady
  • Product Type: Printer Label
  • Color: White
  • Indoor or Outdoor Use: Indoor Use
  • Maximum Service Temperature: 212 °F
  • Minimum Service Temperature: -94 °F
  • Thickness: 0.0046in
  • Resistance Properties: Abrasion-Resistant, Chemical-Resistant, Heat-Resistant
  • Finish: Gloss
  • Adhesive Type: Acrylic
  • Printer Compatibility: IR Laser Marking Systems
  • Length: 0.25in
  • Material: Polyimide
  • Width: 1.25in
  • Shape: Rectangle
  • Compatible Surface Type: General, High Surface Energy
  • Applications: Circuit Board and Component Tracking, Circuit Board Marking
  • Quantity per Roll: 10,000
  • Standards Met: MIL-STD-202G, Method 215K

The Brady LZR-43-732-10 is a die-cut polyimide label designed to be permanently marked using IR laser systems. Developed to meet small font requirements when used with a high resolution laser marking system. It offers properties such as chemical and heat resistancy. The laser markable polyimide label is ideal to use in circuit boards and electronic components.

Brady LZR-43-732-10 Features:
  • Resists repeated harsh washdown cycles
  • Resists high temperatures that occur during wave soldering
  • Compatible with most IR laser marking systems
Brady LZR-43-732-10 Specifications:
  • Material: B-732A Polyimide
  • Indoor or Outdoor Use: Indoor
  • Corner Type: Rounded corners
Pack: Roll
