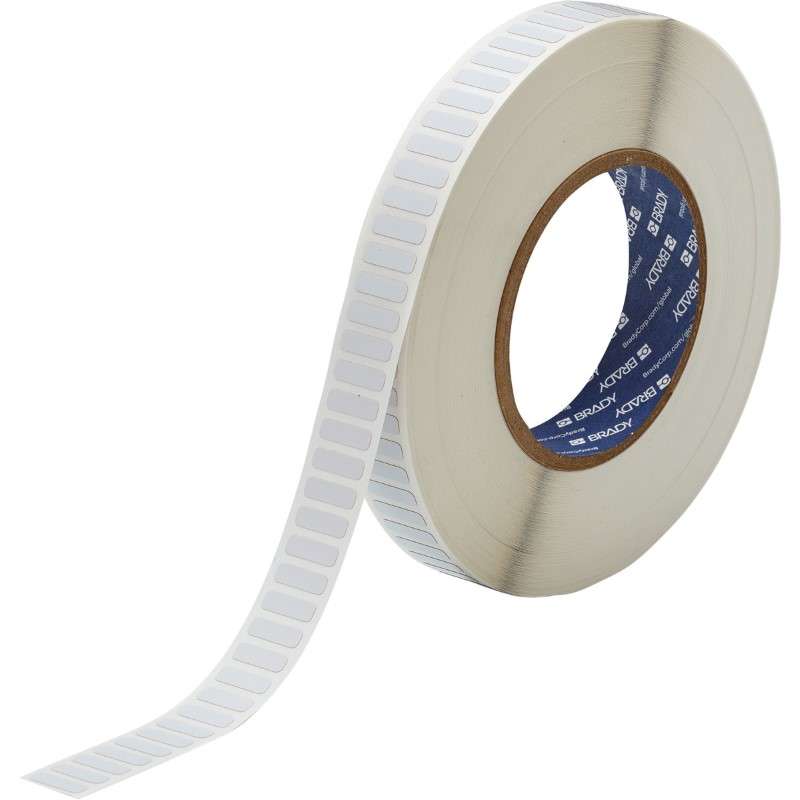

Laser Markable ESD Polyimide Labels, Glossy White, 0.20 x 0.65", 10,000 per Roll

LZR-47-733-10-6691 MFG #: LZR-47-733-10
$539.10 / RL
Available to Order - 0 on Hand
  • Brand Name: Brady
  • ESD-Safe: Yes
  • Product Type: Printer Label
  • Color: White
  • Indoor or Outdoor Use: Indoor Use
  • Maximum Service Temperature: 572 °F
  • Minimum Service Temperature: -94 °F
  • Thickness: 0.0048 in
  • Resistance Properties: Aggressive Adhesive Labels, Chemical Resistant, Harsh Environment Labels, Heat Resistant Labels
  • Finish: Glossy
  • Adhesive Type: Static Dissipative Permanent Acrylic
  • Printer Compatibility: IR Laser Marking Systems
  • Length: 0.20in
  • Material: Polyimide
  • Width: 0.65in
  • Shape: Rectangle
  • Compatible Surface Type: Epoxy PC Board
  • Applications: Circuit Board Labeling
  • Quantity per Roll: 10,000
  • Standards Met: ANSI/ESD S541-2008, MIL-STD-202G, Method 215K

The Brady LZR-47-733-10 is a die-cut electrostatic dissipative polyimide label designed to be permanently marked using IR laser systems. Developed to meet small font requirements when used with a high resolution laser marking system. It offers properties such as chemical and heat resistancy. The laser markable polyimide label is ideal to use in circuit boards and electronic components.

Brady LZR-47-733-10 Features:
  • Constructed with a static dissipative adhesive
  • Resists repeated harsh washdown cycles
  • Resists high temperatures that occur during wave soldering
  • Compatible with most IR laser marking systems
Brady LZR-47-733-10 Specifications:
  • Material: B-733A Polyimide
  • Indoor or Outdoor Use: Indoor
  • Corner Type: Rounded corners
  • Compatible Surface Types: Epoxy PC Board
Pack: Roll
