MultiFiber Pro Singlemode Kit with Power Meter and 1310 NM Light Source

The Fluke Networks MFTK-SM1310 is a MultiFiber Pro and Singlemode MPO test kit with 1310 laser light sources.

• Ensures correct end to end connectivity of MPO fiber trunks using built in polarity verification
• Automatic scanning and testing of all fibers in MPO connectors with Scan All
• Support for both Multimode and Singlemode MPO fiber trunks
• Eliminates the need for fan-out cords when testing MPO fiber trunks
• Easy to interpret test results with minimal navigation

• Brand: Fluke Networks

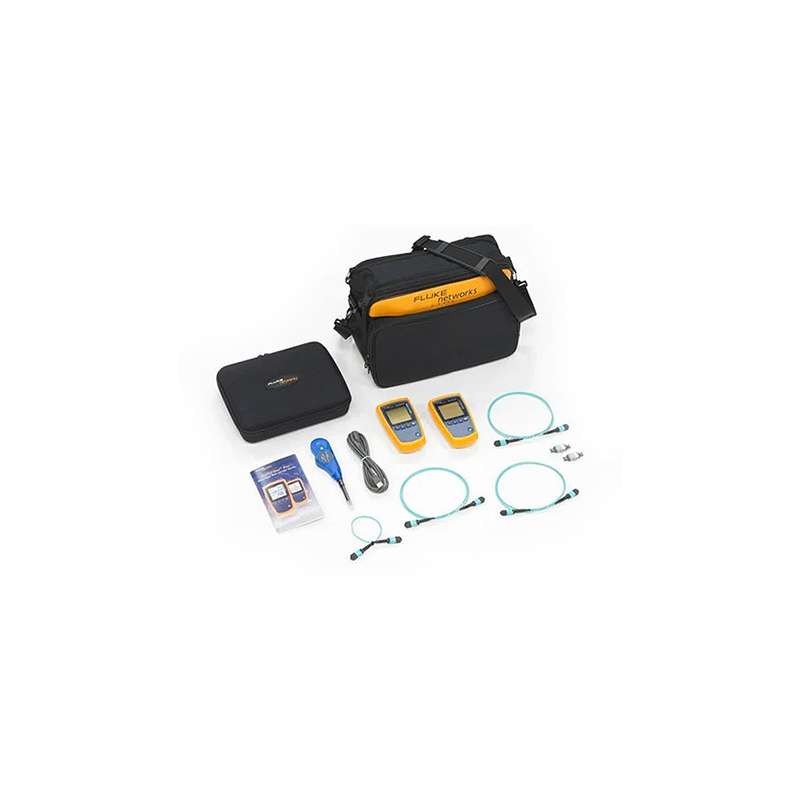

• Kit includes: MultiFiber Pro Power Meter; 1310 nm laser light source; Singlemode test cords: 1 unpinned/unpinned, 1 unpinned/pinned, 2 pinned/pinned; 2X APC MPO adapters; Carrying case
• Operating temperature: -10ºC to +50ºC
• Storage temperature: -20ºC to +50ºC
• Operating humidity: 95% (10ºC to +35ºC) non-condensing; 75% (35ºC to +45ºC) non-condensing; Uncontrolled <10ºC
• Operating altitude: 4,000 m
• Storage altitude: 12,000 m
• Vibration: Random 2 G, 5 Hz to 500 Hz
• Detector type: InGaAs
• Calibrated wavelengths: 850 nm, 1300 nm, 1310 nm, 1550 nm
• Measurement range: 0 dBm to -50 dBm
• Test time: 6 seconds
• Power measurement linearity: ±0.1 dB2
• Power measurement uncertainty: ±0.35 dB2
• Power measurement repeatability: < 0.10 dB2
• Display resolution, dB or dBm: 0.01
• Power display units: dBm, mW, µW
• User-selectable limit for loss: 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB
• Auto wavelength detection: Yes
• Polarity detection: Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities
• 2 kHz detection: Yes
• Record storage: 3000 records, one fiber per record (250 12-fiber cables)
• External interface: USB 2.0, full speed
• Emitter type: Laser
• Wavelength: 1310 nm Source: 1310 nm ±20 nm; 1550 nm Source: 1550 nm ±20 nm
• Spectral width (FWHM): 2 nm typical, 5 nm maximum
• Minimum output power: ≥ -1 dBm
• Power output stability: ±0.25 dB over 8 hours
• Laser Safety: IEC 60825-1:Class 1
• Optical connector: MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm, 50 µm, and singlemode fibers. Connector has a self-closing, protective cover.
• Power requirement: 2 AA alkaline batteries
• Battery life: 30 hours (typical)
• Automatic power-off: 10, 20, 30, or 60 minutes (can be disabled by the user)
• Low battery warning: Low battery icon blinks
• Size: 5.7" x 3.2" x 1.5"
• Weight: 10.9 oz
