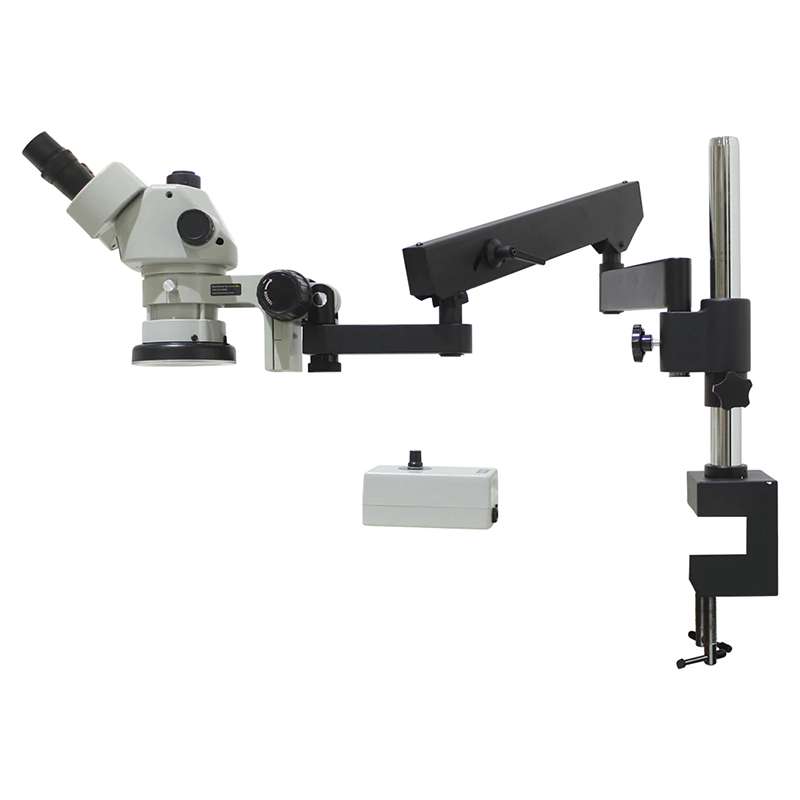

SPZV-50 Stereo Zoom Microscope (6.75x-50x), Articulating Arm, LED Ring Light
Hisco #:SPZV50-209-550-PCL-5550
MFG #:SPZV50-209-550-PCL
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 3827.11 | |
| 3 | 3746.35 | Save |
The Aven SPZV50-209-550-PCL provides crisp clear 3D images, long working distance and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces. The C-Mount trinocular port on the top of the microscope is designed to be used with an external camera. The articulating arm is great for examining parts attached to a large or awkward shaped item. Comes complete with Aven's E-Arm focus mount with an integrated LED ring light and LED adjustment controller.
Aven SPZV50-209-550-PCL Features:- Articulating arm can be easily moved out of the way when microscope is not in use to create more space
- E-Arm focus mount gives operators the ability to view through the microscope eyepieces or on a monitor
- Focus mount features a built in eco-friendly daylight 60 LED ring light for ultra-bright illumination
- 10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses
- Heavy-duty table clamp secures to the edge of a work bench, saving valuable space
- Expandable magnification range with optional eyepieces and objective lenses
- Graduations on zoom knob tell operators exact the magnifications for applications requiring very specific adjustments
- Brand: Aven
- Illumination: 60 White LED
- Body: Trinocular
- Magnification: 6.7x-50x
- Eyepiece: 10x Wide Field (FN23), 45 degree Inclined, C-Mount Camera Port
- Auxiliary Lens: 0.5x, 0.75x, 1.6x, 2x optional lenses available
- Interpupillary Distance: 52mm-75mm
- Zoom Ratio: 7.46:1
- Optical System: Greenough
- Microscope Weight: 5 lb
- Stand Type: Articulating Arm
- Stand Base Type: Clamp
- Vertical Post Height: 384mm
- Max Vertical Post Extended Length: 254mm
- Total Arm Length: 800mm
- Mounting Hole on Horizontal Arm: 5/8" End Adapter
- Horizontal Rotation Angle: 360 Degree
- Horizontal Arm Maximum Load: 9.07kg (20 lb)
- Horizontal Rotation Angle: 360 Degree
- Clamp Opening: 0-44mm
- Clamp Dimensions: 104mm x 77mm x 136mm
- Stand Dimensions: 330mm x 150mm x 405mm
- Focus Mount Type: E-Arm
- Illumination: 60 LED Ring Light with Dimmer Control
- Package Contents: SPZV-50 Stereo Zoom Microscope, E-Arm Focus Mount with LED Ring Light, Articulating Arm Stand with Table Clamp
Product Description
The Aven SPZV50-209-550-PCL provides crisp clear 3D images, long working distance and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces. The C-Mount trinocular port on the top of the microscope is designed to be used with an external camera. The articulating arm is great for examining parts attached to a large or awkward shaped item. Comes complete with Aven's E-Arm focus mount with an integrated LED ring light and LED adjustment controller.
Aven SPZV50-209-550-PCL Features:- Articulating arm can be easily moved out of the way when microscope is not in use to create more space
- E-Arm focus mount gives operators the ability to view through the microscope eyepieces or on a monitor
- Focus mount features a built in eco-friendly daylight 60 LED ring light for ultra-bright illumination
- 10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses
- Heavy-duty table clamp secures to the edge of a work bench, saving valuable space
- Expandable magnification range with optional eyepieces and objective lenses
- Graduations on zoom knob tell operators exact the magnifications for applications requiring very specific adjustments
- Brand: Aven
- Illumination: 60 White LED
- Body: Trinocular
- Magnification: 6.7x-50x
- Eyepiece: 10x Wide Field (FN23), 45 degree Inclined, C-Mount Camera Port
- Auxiliary Lens: 0.5x, 0.75x, 1.6x, 2x optional lenses available
- Interpupillary Distance: 52mm-75mm
- Zoom Ratio: 7.46:1
- Optical System: Greenough
- Microscope Weight: 5 lb
- Stand Type: Articulating Arm
- Stand Base Type: Clamp
- Vertical Post Height: 384mm
- Max Vertical Post Extended Length: 254mm
- Total Arm Length: 800mm
- Mounting Hole on Horizontal Arm: 5/8" End Adapter
- Horizontal Rotation Angle: 360 Degree
- Horizontal Arm Maximum Load: 9.07kg (20 lb)
- Horizontal Rotation Angle: 360 Degree
- Clamp Opening: 0-44mm
- Clamp Dimensions: 104mm x 77mm x 136mm
- Stand Dimensions: 330mm x 150mm x 405mm
- Focus Mount Type: E-Arm
- Illumination: 60 LED Ring Light with Dimmer Control
- Package Contents: SPZV-50 Stereo Zoom Microscope, E-Arm Focus Mount with LED Ring Light, Articulating Arm Stand with Table Clamp
