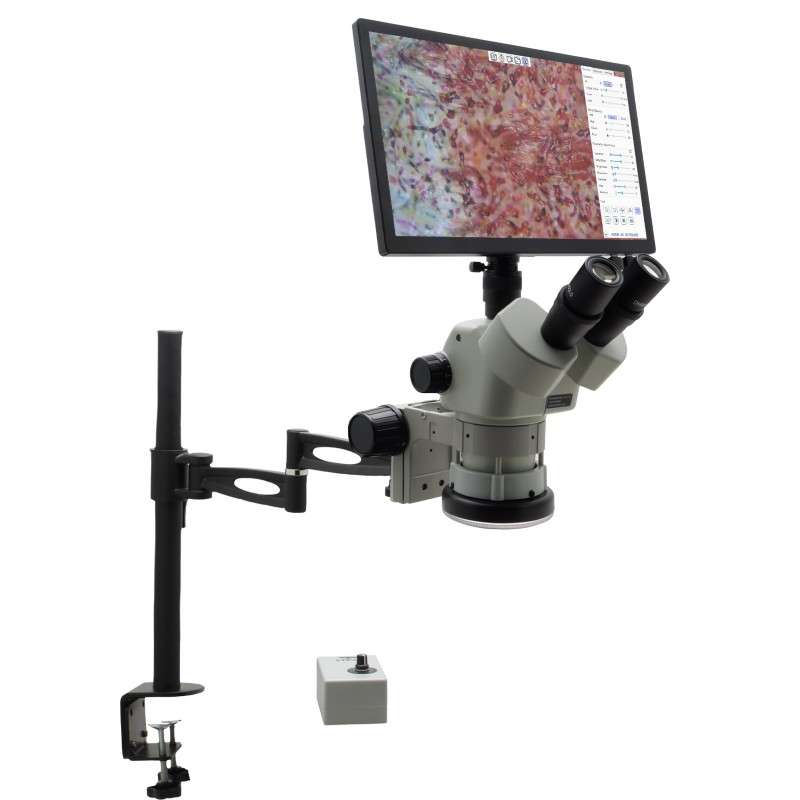

Microscope, 50X, Compact Articulating Arm Stand, w/Mighty Cam Eidos 4K XL Camera/Monitor, Stereo Zoom Series

The Aven 26800B-728SPZV-50 microscope provides crisp clear 3D images and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces. View objects beneath the microscope through the traditional eyepieces, or on the Mighty Cam Eidos 4K screen. The compact articulating arm stand saves bench space, and can be placed out of the way when not in use.

Designed for Ergonomic Inspection

Extended microscope use has long been associated with eye strain and musculoskeletal fatigue. Traditional optical microscopes often force operators into fixed, awkward postures — bending the neck, leaning forward, and limiting head and body movement for prolonged periods.

The Mighty Cam Eidos 4K XL system is designed to overcome these challenges. Its integrated 13.3” high-definition display positions the inspection image at eye level, allowing operators to sit comfortably in a natural working posture. With approximately 31% more viewing area than an 11.6” display, the XL significantly reduces fatigue while improving focus and productivity during long inspection sessions.

When optical viewing is required, the microscope remains fully functional — providing the flexibility of both digital and traditional inspection methods.

Precision-Engineered Stereo Zoom Microscope

The SPZV-50 stereo zoom microscope is ideal for a wide range of inspection and investigative applications. Using standard 10× eyepieces, it delivers 6.7×–50× continuous optical zoom while maintaining a consistent 84mm (3.3”) working distance.

• 6.7×–50× optical magnification
• Up to 255× on-screen magnification (system dependent)
• Click-stop zoom knobs for repeatable measurements
• True trinocular head for simultaneous optical and digital viewing

Digital Inspection Made Easy

Enhanced Comfort with a Larger Display

The Mighty Cam Eidos 4K XL features a high-performance 8.29MP CMOS sensor (1/1.8”) delivering 4K Ultra HD resolution (3840 × 2160 @ 30 FPS). Mounted to a trinocular microscope or video lens via its standard C-mount, the system delivers exceptional clarity, contrast, and color accuracy.

The integrated 13.3” HD display enables comfortable, eyepiece-free inspection while maintaining full optical functionality.

Capture and Save 4K Images and Video

No Computer Required

Capture ultra-high-resolution 4K images and video directly to a MicroSD card. No PC or external software is required, allowing for fast documentation, review, and traceability without interrupting workflow.

Tilting Display for Ergonomic Comfort

The integrated monitor tilts to the optimal viewing angle, reducing glare and neck strain while maintaining clear, detailed imaging during extended inspection sessions.

HDMI and USB-C Outputs

The Mighty Cam Eidos 4K XL includes HDMI and USB-C outputs for flexible connectivity. HDMI allows live viewing on an external monitor or projector while maintaining the built-in display.

The USB-C port supports data transfer and integration with third-party imaging software. (Software not included.)

Integrated Measurement Software

The built-in computational imaging software enables accurate on-screen measurement without a PC.

• Calibration editor
• Radius and diameter measurement
• 2- and 3-point circle tools
• Crosshair and line measurement tools
• Center distance and concentric circle measurements
• Annotation and screenshot capture tools

Benefits

• True 4K Ultra HD resolution (3840 × 2160 @ 30 FPS)
• 8.29MP CMOS sensor (1/1.8”)
• 13.3” tilting HD display with ~31% more viewing area
• All-in-one, space-saving inspection system
• Built-in measurement and annotation tools
• HDMI and USB-C connectivity
• Save images and video directly to MicroSD card
• Reduces eye strain and operator fatigue

Applications

• Precision assembly and inspection
• Quality control and production
• Electronics and PCB inspection
• Medical device manufacturing
• Aerospace and automotive inspection
• Research, training, and education
