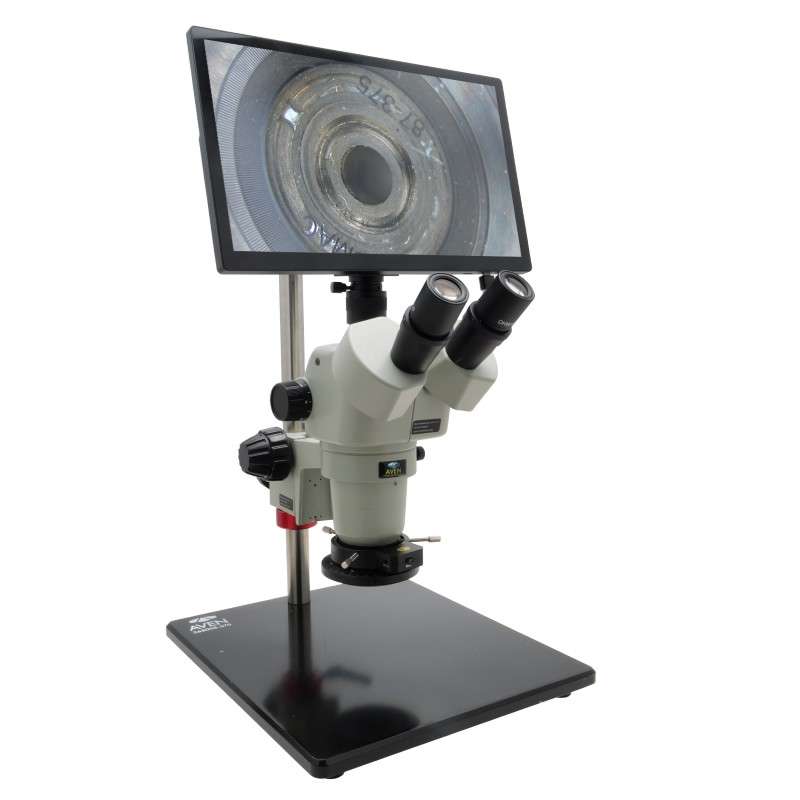

Microscope, 50X, Post Stand with Polarized LED Ring Light, w/Mighty Cam Eidos 4K XL Camera/Monitor, Stereo Zoom Series
Hisco #:26800B-735-5550
MFG #:26800B-735
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 5922.19 | |
| 3 | 5797.21 | Save |
The Aven 26800B-735high-performance inspection platform combines precision stereo optics with integrated 4K digital imaging. Built for detailed visual inspection, measurement, and documentation, the system delivers crisp 3D images with a wide field of view and smooth, continuous zoom—no PC required.
High-Precision Stereo Optics
The SPZV-50 true trinocular stereo zoom microscope delivers exceptional optical performance with a best-in-class zoom ratio, wide field of view, and long working distance. Precision-engineered optics produce sharp, high-contrast 3D images across the entire field — ideal for inspection, documentation, and digital imaging.
- Simultaneous viewing through eyepieces and camera
- Click-stop zoom adjustment for repeatable measurements
- Fine-focus adjustable C-mount camera adapter
- Large 7.46:1 zoom ratio — best in class
- Field of view: 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance: 108mm (4.25")
- High eye-point 10× widefield eyepieces (FN23) — ideal for eyeglass wearers
- Diopter adjustment on both eyepiece tubes
Dual Viewing with Mighty Cam Eidos 4K XL
Expanded 13.3” Display — No Computer Required
The Mighty Cam Eidos 4K XL elevates the SPZV-50 into a fully integrated digital inspection system. Featuring a high-performance 8.29MP CMOS sensor (1/1.8”), the camera delivers true 4K Ultra HD resolution (3840 × 2160 @ 30 FPS) with exceptional detail, contrast, and color accuracy.
The upgraded 13.3” high-definition display provides approximately 31% more viewing area than an 11.6” screen, improving visibility, collaboration, and operator comfort during extended inspection sessions.
- All-in-one camera and monitor inspection system
- 13.3” tilting display for ergonomic viewing
- Save images and video directly to MicroSD card
- HDMI output for external monitor or projector
- USB-C port for data transfer and software integration
- Built-in measurement and annotation tools
- Grid overlays, freeze, mirror, and compare modes
- Reduces eye strain and neck fatigue
Product Description
The Aven 26800B-735high-performance inspection platform combines precision stereo optics with integrated 4K digital imaging. Built for detailed visual inspection, measurement, and documentation, the system delivers crisp 3D images with a wide field of view and smooth, continuous zoom—no PC required.
High-Precision Stereo Optics
The SPZV-50 true trinocular stereo zoom microscope delivers exceptional optical performance with a best-in-class zoom ratio, wide field of view, and long working distance. Precision-engineered optics produce sharp, high-contrast 3D images across the entire field — ideal for inspection, documentation, and digital imaging.
- Simultaneous viewing through eyepieces and camera
- Click-stop zoom adjustment for repeatable measurements
- Fine-focus adjustable C-mount camera adapter
- Large 7.46:1 zoom ratio — best in class
- Field of view: 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance: 108mm (4.25")
- High eye-point 10× widefield eyepieces (FN23) — ideal for eyeglass wearers
- Diopter adjustment on both eyepiece tubes
Dual Viewing with Mighty Cam Eidos 4K XL
Expanded 13.3” Display — No Computer Required
The Mighty Cam Eidos 4K XL elevates the SPZV-50 into a fully integrated digital inspection system. Featuring a high-performance 8.29MP CMOS sensor (1/1.8”), the camera delivers true 4K Ultra HD resolution (3840 × 2160 @ 30 FPS) with exceptional detail, contrast, and color accuracy.
The upgraded 13.3” high-definition display provides approximately 31% more viewing area than an 11.6” screen, improving visibility, collaboration, and operator comfort during extended inspection sessions.
- All-in-one camera and monitor inspection system
- 13.3” tilting display for ergonomic viewing
- Save images and video directly to MicroSD card
- HDMI output for external monitor or projector
- USB-C port for data transfer and software integration
- Built-in measurement and annotation tools
- Grid overlays, freeze, mirror, and compare modes
- Reduces eye strain and neck fatigue
Technical Information
Item must be ordered in multiples of 1
