Solar Test Kit includes GFL-1500 Locator, 283 Multimeter

Fluke FLK-GFL1500-283/PV PV Ground Fault Kit: GFL-1500 Locator, 283 Multimeter

The Fluke Kit for Locating Active Ground Faults in PV Arrays and Combiner Boxes:

The Fluke FLK‑GFL1500‑283/PV kit brings together the GFL‑1500 Ground Fault Locator and the 283 FC Logging Multimeter to deliver a complete solution for diagnosing issues in PV installations. It supports measurements of voltage, current, resistance, frequency, and temperature across solar and electrical systems. The multimeter also records DC voltage and current trends, making it easier to spot intermittent faults or drops in system performance.

Fault Locator Features:

• FaultTrack Technology: Identify and locate active ground faults anywhere in the DC system with an easy-to follow traceable signal.
• Reduce the amount of time it takes to locate active ground faults and decrease your exposure to electrical hazards with non-contact signal tracing.
• Integrated Diagnostic Function(s):
  • Analyze - Provides diagnostic details like location, resistance range, voltage to ground
  • Fault Tracing - Real-time audio-visual feedback for localization of the fault within array
  • Open Circuit - Locate breaks in wiring
  • Mapping - Identify and confirm string layout
• Designed for real-world conditions, the GFL-1500 is intuitive to operate, quick to deploy, and built for harsh environments.
• Current clamp can identify faulted combiner or string without disconnections, even in noisy environments
• Category Rated: CAT III 1500 V DC, CAT IV 600 V, meets the rigorous safety standards outlined in IEC 61010-1 and 61010-2-030.

Transforming the Way Faults Are Found:

Instead of relying on complicated manual testing, the GFL‑1500 Ground Fault Locator uses a straightforward trace signal to simplify fault isolation. This helps technicians restore system functionality faster and with greater accuracy. Whether the task is at the inverter, combiner box, or module level, the GFL‑1500 is built and tested for demanding, high‑voltage environments—offering a durable, safe, and efficient tool that boosts confidence and productivity in the field.

283FC Digital Handheld Multimeter Features:

• 1500 VAC / 1000 VDC Digital Multimeter; CAT III 1500 V/CAT IV 1000 V Safety Rated.
• Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy* (*when using a283 FC wireless current clamp).
• Measure voltage and current at the same time and automatically calculate VA Power when used with the a283 FC clamp meter.
• Visual and audio polarity indicators with on/off function help prevent accidental module wiring issues.
• User-defined limit gauge helps you make quick go/no-go troubleshooting decisions.
• Integrated multimeter readiness selfcheck:

• Get insights to the status of the meter’s calibration, battery life availability, test lead functionality, and AC/DC voltage measurement functionality.
• Logging and saving measurements to internal memory or Fluke Connect to perform later detailed analysis.

Enhanced Safety and Efficiency with the 283FC DMM:

The Fluke 283FC Digital Multimeter improves troubleshooting through its customizable limit‑gauge feature, which highlights measurement irregularities and supports consistent system performance.

Engineered for DC applications up to 1500 V, it raises the bar for safety and reliability. Its precision and stability make it suitable for large solar installations, wind energy systems, electric rail networks, and data centers.

Customizable Limit Gauge for Large‑Scale PV Work:

For projects requiring repeated measurements and uniform results, the adjustable limit gauge is a valuable time‑saving feature. It provides visual and audible alerts when readings fall outside preset thresholds, helping technicians quickly assess system health and detect potential problems.

A dedicated button makes it easy to switch alerts on or off, update measurement limits, or choose from saved profiles. This flexibility speeds up troubleshooting and supports consistent, high‑quality performance across solar installations.

A283FC Current Clamp Features

• AC/DC 60 A; CAT III 1500 V/CATIV 1000V Safety Rated; Jaw opening of 34mm
• Wireless connectivity allows for convenient transmission of measurements.
Automatically calculate VA power.
• View more than one measurement at a time allowing you to monitor additional parameters like DC amperage or voltage.
• Convenient logging and saving features.
• Built-in real-time clock: each measurement can be time- and date-stamped for accurate recordkeeping.

Wireless Current Clamp for Safe, Efficient Diagnostics:

The a283 FC True‑RMS wireless current clamp is designed to make troubleshooting safer and more efficient. It measures AC and DC currents up to 60 A with accuracy suitable for solar systems, electrical networks, and industrial equipment.

Its non‑contact design eliminates the need to touch live conductors—technicians can clamp around a wire inside a cabinet and take readings from a safe distance. With CAT III 1500 V and CAT IV 1000 V safety ratings, it matches the robust protection standards of the 283 FC multimeter.

What's in the Box

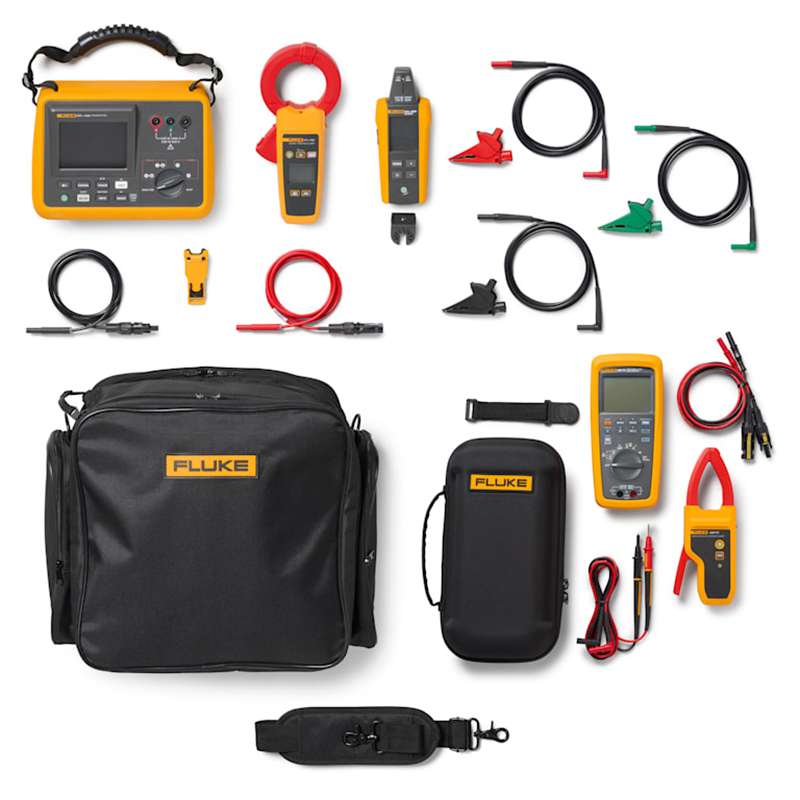

• 283FC/PV solar kit: 283FC DMM w/ 283FC clamp
• GFL-1500 solar ground fault locator kit
