Solar Test Kit includes IV Curve Tracer, Insulation Tester, Multimeter

Fluke FLK-PVA-1537-283/PV PV Kit: Insulation Tester and Multimeter

The Fluke Kit for IV Curve Testing and PV System Performance Verification:

The Fluke FLK‑PVA‑1537‑283/PV kit brings together the PVA‑1500HE2 Analyzer, the 1537 Insulation Tester, and the 283FC Logging Multimeter to provide a complete solution for PV system evaluation. It supports IV curve analysis, insulation resistance testing, and electrical performance checks in a single package, all aligned with IEC 62446 requirements for commissioning and maintaining solar installations.

PVA-1500HE2 Analyzer Features

• DC Voltage: 1500V
• Current: 30A DC (Module Efficiency <19%)
• Maximum Current (Isc): 30A DC Module Efficiency ≥19%
• Operating Temperature: 0 - 45 degrees C (32 to 113 degrees F)
• Uninterrupted measurements even in hot environments
• In-the-field firmware update ready
• Data Analysis Tool (DAT) Automates data management, analysis, and reporting
• Wireless Connectivity

Curve Tracer Overview:

The PVA‑1500HE2 Curve Tracer with Sol Sensor is an advanced tool designed to elevate performance monitoring for utility‑scale and commercial solar plants. It measures and displays I‑V curves up to 1500 V and 30 A—even on high‑efficiency modules—delivering precise, comprehensive data for system optimization.

The device also incorporates built‑in PV (Photovoltaic) performance modeling and wireless irradiance measurement, creating a smooth and intuitive workflow. With integrated temperature and tilt sensors, it ensures that PV modules are evaluated under accurate operating conditions.

A standout feature of the PVA‑1500HE2 is its rapid measurement capability, offering sweep‑to‑sweep delays as short as nine seconds. It functions not just as a curve tracer, but as a complete performance analysis platform..

1537 Insulation Tester Features

• Tailor tests with user-selectable voltages of 250 V, 500 V, 1000 V, and 2500 V
• Reach up to 500 Gigohm in insulation resistance measurement
• Execute up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V
• Benefit from a CAT IV 600 V rating and a built-in voltage alarm function
• Extended Measurements: The Fluke 1537 enhances your testing capabilities with AC/DC voltage and resistance measurements.
• Stable Resistance Measurements: Achieve faster, more stable insulation resistance measurements with a short circuit current up to 5mA.
• Dielectric Discharge Rate Calculation: Automatically calculate the dielectric discharge rate (DD) to aid in identifying elusive insulation issues.
• Ramp Test Mode: Linearly increase the applied test voltage 100 V/s to help identify potentially hard to identify fault conditions.

153X Series Insulation Testers:

The 153X insulation tester family enables fast, reliable assessment of cable integrity, motor and transformer windings, and a wide range of electrical equipment.

The Fluke 1537 Insulation Resistance Tester is built for efficient frontline diagnostics. Lightweight, portable, and precise, it offers selectable test voltages from 250 V to 2500 V and can measure resistance up to 500 GΩ. Its intuitive interface, 5 mA short‑circuit current capability, and CAT IV 600 V rating ensure stable, accurate readings whether used in industrial environments or at solar installations.

283FC Digital Handheld Multimter Features

• 1500 VAC / 1000 VDC Digital Multimeter; CAT III 1500 V/CAT IV 1000 V Safety Rated.
• Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy* (*when using a283 FC wireless current clamp).
• Measure voltage and current at the same time and automatically calculate VA Power when used with the a283 FC clamp meter.
• Visual and audio polarity indicators with on/off function help prevent accidental module wiring issues.
• User-defined limit gauge helps you make quick go/no-go troubleshooting decisions.
• Integrated multimeter readiness selfcheck:

• Get insights to the status of the meter’s calibration, battery life availability, test lead functionality, and AC/DC voltage measurement functionality.
• Logging and saving measurements to internal memory or Fluke Connect to perform later detailed analysis.

283FC DMM - Safety and Efficiency for Solar Technicians:

The Fluke 283FC Digital Multimeter enhances troubleshooting with its customizable limit‑gauge feature, helping users quickly spot abnormal readings and maintain system performance.

Designed for DC applications up to 1500 V, it sets a high standard for safety and precision. Its dependable measurements make it suitable for utility‑scale PV systems, wind energy, electric rail infrastructure, and data centers.

User‑Defined Limit Gauge:

For large PV installations where repeated measurements are common, the adjustable limit gauge is a valuable time‑saving function. It provides visual and audible alerts when readings fall outside preset thresholds, enabling rapid assessment, improved confidence in system health, and early detection of potential issues.

A dedicated button allows users to switch alerts on or off, adjust measurement limits, or choose from saved profiles. This flexibility simplifies diagnostics and supports consistent, high‑quality performance across solar systems.

A283FC Current Clamp Features

• AC/DC 60 A; CAT III 1500 V/CATIV 1000V Safety Rated; Jaw opening of 34mm
• Wireless connectivity allows for convenient transmission of measurements.
Automatically calculate VA power.
• View more than one measurement at a time allowing you to monitor additional parameters like DC amperage or voltage.
• Convenient logging and saving features.
• Built-in real-time clock: each measurement can be time- and date-stamped for accurate recordkeeping.

Wireless Current Clamp for Safe, Efficient Troubleshooting:

The a283 FC True‑RMS wireless current clamp is designed to make current measurements safer and more convenient. It measures AC and DC currents up to 60 A with accuracy suitable for solar, electrical, and industrial applications.

Its non‑contact design allows technicians to clamp around conductors inside a cabinet and take readings remotely, avoiding direct interaction with live circuits. With CAT III 1500 V and CAT IV 1000 V safety ratings, it matches the robust protection level of the 283FC multimeter.

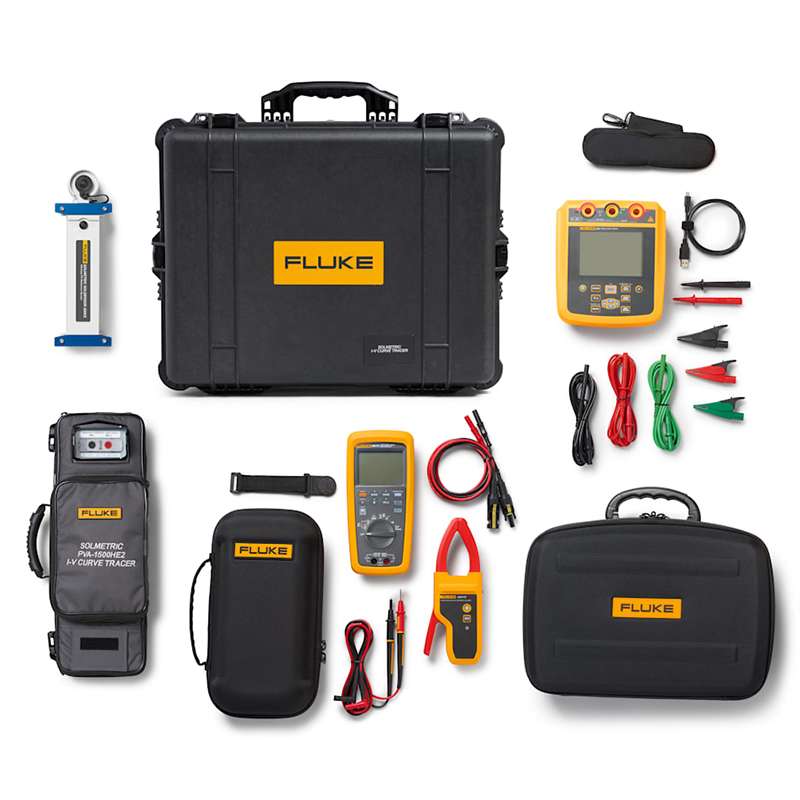

What's in the Box

• 1537 insulation tester
• 283FC/PV solar kit: 283FC DMM w/ A283FC clamp
• PVA-1500HE2 solmetric pv analyzer-iv curve tracer
