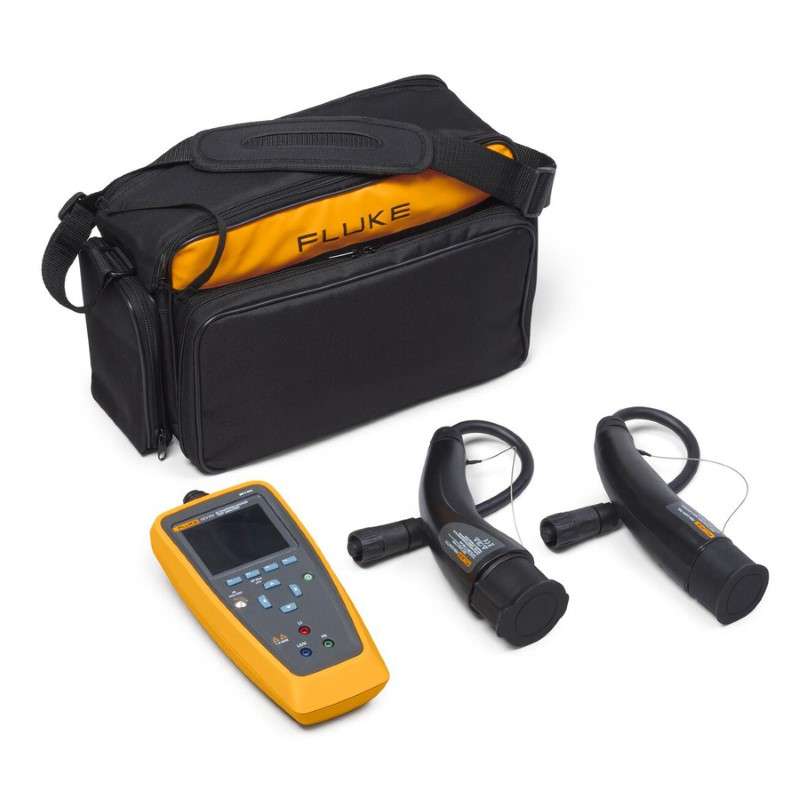

Pro EV Charging Station Analyzer, Type 1 Tesla Plug, Trutest, FEV Series

The Fluke FLK-FEV150/TY1/TSL PRO is a tool designed to test the safety and functionality of AC electric vehicle charging stations. It is safe, portable, and efficient, making it an all-in-one solution for technicians.

• PE (protective) earth pre-test to ensure no dangerous voltage is present
• Visual inspection
• GFCI Trip Test
• Nominal voltage measurement
• Auto control pilot (CP) with waveform analysis
• Error testing
• Proximity pilot test
• Manual Control Pilot test
• Advanced GFCI Test

• Series: FEV Series
• Compatible with Type 1 (J1772) or Tesla type connectors
• Includes TruTest EV Charging software with Bluetooth connection
• Compliant with J1772 standards

Test the safety and functionality of AC electrical vehicle charging stations with the all-in-one tool that is safe, portable, and efficient.

Available measurements:

• PE (protective) earth pre-test to ensure no dangerous voltage is present
• Visual inspection
• GFCI Trip Test
• Nominal voltage
• Auto control pilot (CP) with waveform analysis
• Error testing
• Proximity pilot
• Manual Control Pilot
• Advanced GFCI Test

The FEV150 is a complete solution for safety and performance testing of AC EV charging stations with Type 1 (J1772) or Tesla type connectors. Deliver uptime reliability with Fluke’s next generation of EV Charging test solutions, designed for technicians to perform and document multiple tests safely, quickly, and efficiently without carrying multiple tools.

The all-in-one solution includes TruTest EV Charging software. TruTest integrates seamlessly with the FEV150 via Bluetooth connection to provide predetermined test plans, pass/fail indications, and pre-test voltage safety information. Use the FEV150 and TruTest automation to get the job done safely, faster, and with less potential for errors.

The FEV150 EV Charging Station Analyzer is compliant with J1772 standards.
