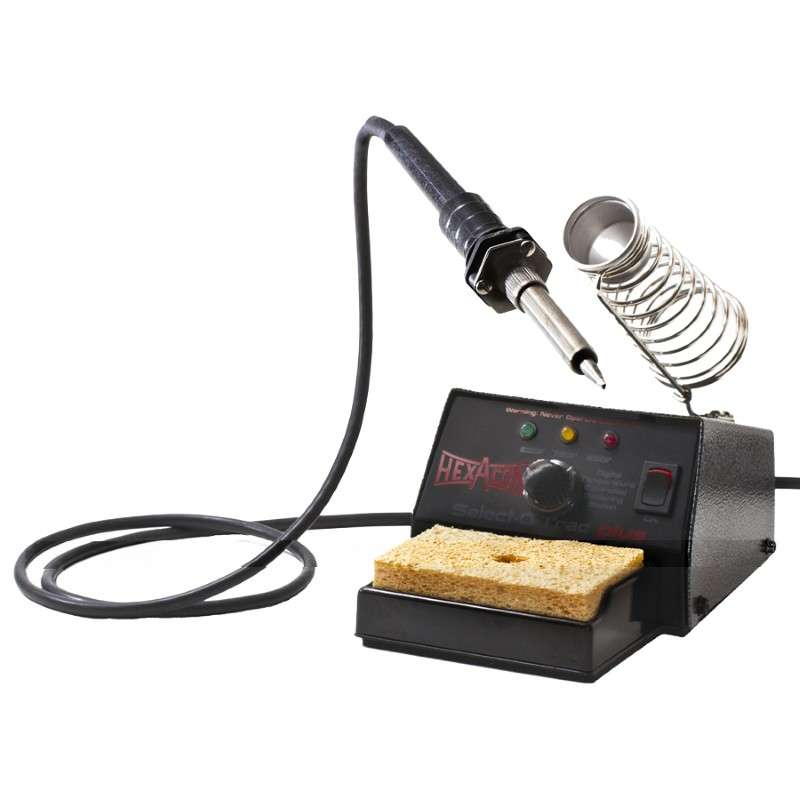

Therm-O-Trac Plus Digital Variable Soldering Station

The Hexacon TOT-1006+ Therm-O-Trac Plus Soldering Station is a digitally controlled, variable-temperature soldering station designed for quick thermal recovery, consistent performance, and long-term reliability. Built on the proven Therm-O-Trac platform, the TOT-1006+ incorporates an updated processing unit while retaining the serviceability and durability that have made the product line a longstanding solution for professional soldering applications.The TOT-1006+ is designed for repetitive production and assembly processes where stable temperature control is critical. Three customizable temperature set points allow operators to switch between predefined working temperatures without the need for continuous adjustment.The TOT-1006+ Therm-O-Trac Plus Soldering Station uses an optimally placed internal thermocouple to continuously monitor tip temperature. Any variation from the selected setting is corrected automatically through a closed-loop control system, helping maintain accurate and stable operating temperatures throughout the soldering process.For production environments that regularly perform the same task, the station's three programmable temperature settings provide a practical way to move between established process temperatures while maintaining consistency.The Therm-O-Trac Plus platform is engineered for use in electronics manufacturing, soldering workstations, repair operations, and assembly environments where temperature stability and repeatable results are important. The station's zero-voltage switching design supports precise temperature regulation while avoiding energy forms that may be detrimental to sensitive electronic devices.As a professional digital soldering station, temperature-controlled soldering station, and electronics soldering system, the TOT-1006+ is well suited for applications that require dependable thermal performance and repeatable soldering results.

• Digital variable-temperature soldering station
• Temperature Control: Three user-configurable temperature set points
• Standard Tip: J202X
• Wattage: Variable
• Temperature Feedback: Internal thermocouple positioned near the tip for continuous temperature monitoring
• Control System: Closed-loop feedback system that automatically adjusts power to maintain set temperature
• Recovery Performance: Fast thermal recovery for consistent soldering performance
• Power Supply: 36 VAC transformer for rapid heat-up
• Idle Temperature Stability: Zero-voltage switching circuit with approximately ±1% variance at idle temperature
• Field Calibration: User-calibratable without special tools or components
• Compliance Support: Designed to support certification requirements and MIL-spec calibration procedures
• Serviceability: Independently replaceable component parts and soldering tips
