Mini Iron, 20 Watt
Hisco #:10328483
MFG #:SI-21A-20W
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 96.87 | |
| 3 | 91.35 | Save |

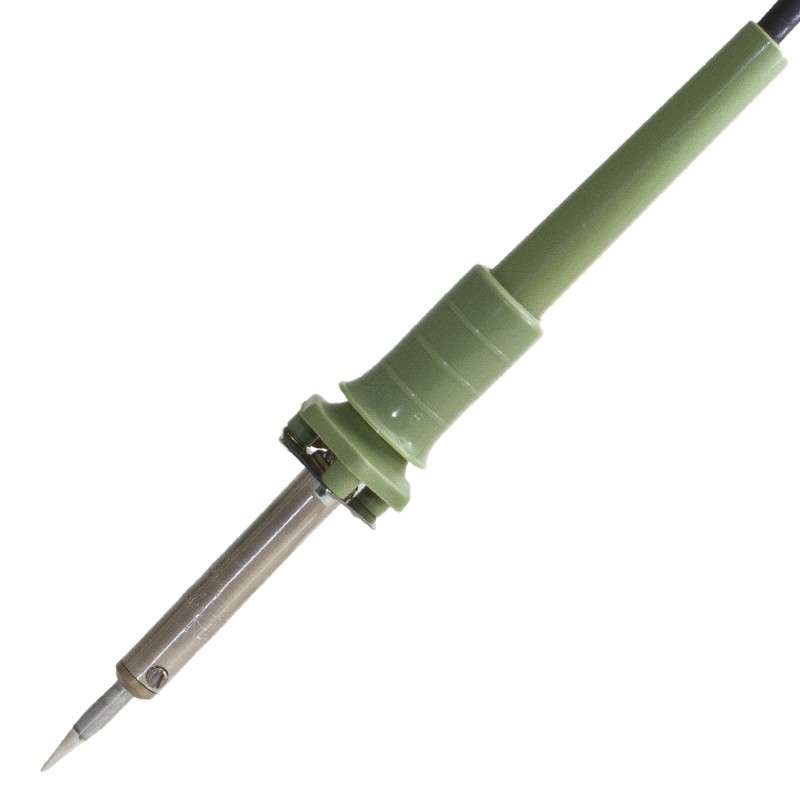

The Hexacon SI-21A-20W Mini Iron is a 20-watt pencil-style soldering iron designed for steady-output soldering applications. Part of Hexacon's A-Series Mini Iron line, the SI-21A combines a lightweight, balanced design with serviceable components, making it suitable for production work, rework, repair, and electronics assembly.The SI-21A-20W uses a nickel-wound heating element with high-dielectric mica insulation to help maintain consistent idling temperatures and fast thermal recovery. Hexacon elements are manufactured with a ±2% resistance tolerance, burned in to stabilize wattage, and dielectric tested at 1200 volts for reliable performance and long service life.A burn-resistant neoprene power cord is designed to withstand accidental contact with the iron during operation. The three-wire grounded construction enhances operator safety, while the optional Posi-Ground configuration provides less than two millivolts steady-state leakage for MIL-equivalent applications and sensitive component work.The fiberglass anti-roll handle remains cool during use, resists common solvents, and is easy to clean. A slim stainless-steel element case improves working visibility while providing corrosion resistance. The lightweight, balanced design also supports repetitive soldering tasks throughout the workday.
Hexacon SI-21A-20W Features:- Power Rating: 20 Watts
- Tip Diameter: 1/8"
- Standard Tip: HT477X
- Mini soldering iron / pencil soldering iron
- Heating Element: Nickel-wound element insulated with high-dielectric mica on a conductive stainless-steel core
- Resistance Tolerance: ±2%
- Dielectric Testing: 1200V tested
- Construction: Three-wire grounded design
- Cord Type: Burn-resistant, extra-flexible neoprene power cord with wattage identification
- Handle Material: Fiberglass anti-roll handle
- Element Case: Slim-line stainless-steel construction
- Replaceable Components: Tip, cord, and handle
- Included Accessories: Standard Hexacon tip and S-10 Iron Holder
- Recommended Applications: Circuit board soldering, rework, repair, cable assembly, harness assembly, and repetitive connection work
Product Description
The Hexacon SI-21A-20W Mini Iron is a 20-watt pencil-style soldering iron designed for steady-output soldering applications. Part of Hexacon's A-Series Mini Iron line, the SI-21A combines a lightweight, balanced design with serviceable components, making it suitable for production work, rework, repair, and electronics assembly.The SI-21A-20W uses a nickel-wound heating element with high-dielectric mica insulation to help maintain consistent idling temperatures and fast thermal recovery. Hexacon elements are manufactured with a ±2% resistance tolerance, burned in to stabilize wattage, and dielectric tested at 1200 volts for reliable performance and long service life.A burn-resistant neoprene power cord is designed to withstand accidental contact with the iron during operation. The three-wire grounded construction enhances operator safety, while the optional Posi-Ground configuration provides less than two millivolts steady-state leakage for MIL-equivalent applications and sensitive component work.The fiberglass anti-roll handle remains cool during use, resists common solvents, and is easy to clean. A slim stainless-steel element case improves working visibility while providing corrosion resistance. The lightweight, balanced design also supports repetitive soldering tasks throughout the workday.
Hexacon SI-21A-20W Features:- Power Rating: 20 Watts
- Tip Diameter: 1/8"
- Standard Tip: HT477X
- Mini soldering iron / pencil soldering iron
- Heating Element: Nickel-wound element insulated with high-dielectric mica on a conductive stainless-steel core
- Resistance Tolerance: ±2%
- Dielectric Testing: 1200V tested
- Construction: Three-wire grounded design
- Cord Type: Burn-resistant, extra-flexible neoprene power cord with wattage identification
- Handle Material: Fiberglass anti-roll handle
- Element Case: Slim-line stainless-steel construction
- Replaceable Components: Tip, cord, and handle
- Included Accessories: Standard Hexacon tip and S-10 Iron Holder
- Recommended Applications: Circuit board soldering, rework, repair, cable assembly, harness assembly, and repetitive connection work
