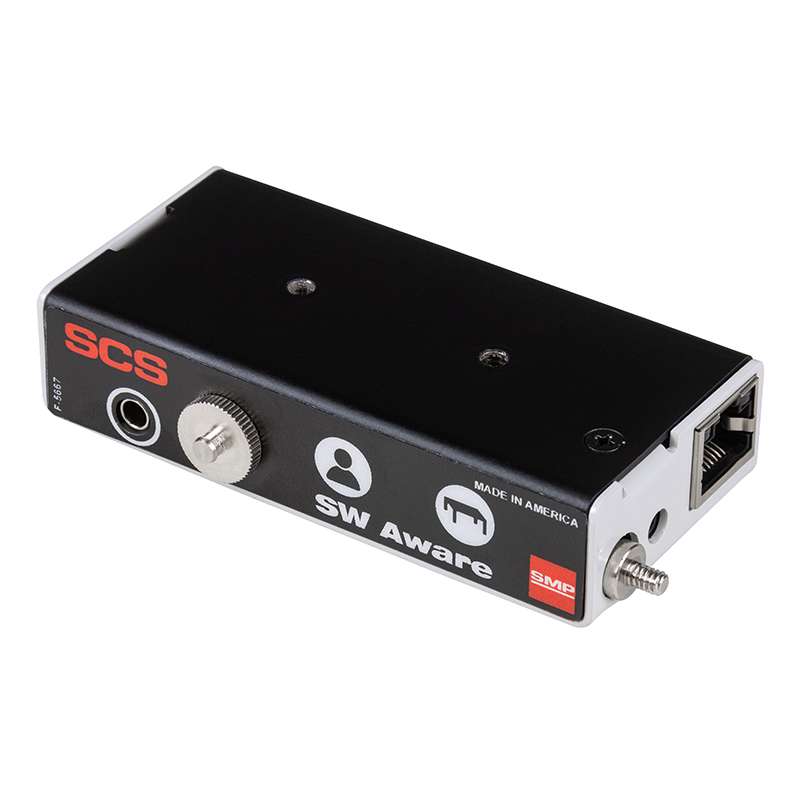

SW Aware Monitor with Universal Power Adapter

The SCS 770152 SW Aware Monitor is a single workstation continuous monitor. It continuously monitors the path-to-ground integrity of one operator and one ESD worksurface. Mounting holes make it suitable to install underneath tabletops. The SW Aware Monitor eliminates the need for periodic testing and record keeping of wrist straps.The SW Aware Monitor uses impedance technology to provide stable, continuous monitoring of the path-to-ground and one megohm resistor in an operator’s wrist strap. Audio and visual alarms activate (in less than 50 milliseconds) when the operator unintentionally disconnects from the monitor, or the wrist strap connection points are intermittent. The SW Aware Monitor also monitors for a worksurface path-to-ground of less than 10 megohms. All SW Aware Monitors are calibrated to NIST standards.

• Single Workstation Continuous Monitor - Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
• Ethernet Connectivity - Provides network communication with Static Management Program (SMP) to collect and report the status of the operator and worksurface mat circuits.
• Park Delay Timer and Parking Snap - Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
• Impedance Monitoring Technology (IMT) - Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
• Mat Monitor Switch - Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
• Audible Alarm Adjustment - Sets the audible alarm volume from loud to louder
• Enclosure with Mounting Holes - Installs in workbench and equipment environments
• 1.2 Volt Operator Test Voltage - Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• <50 Millisecond Alarm Response Time - Identifies failures and intermittencies
• Calibration Verification - Use the SCS 770153 Verification Tester to check the test limits of the SW Aware Monitor without removing it from its workstation
• NIST Calibrated - Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology
• 100-240VAC Safety Certified Power Adapter with IEC C14 Style Inlet - Connects to a power cord with an IEC C13 outlet connector
• Made in the United States of America - This item is made and stocked in Chino, CA
